Designer

Designer is GUI tool to design service and to develop service.
Screen Configuration of Designer can show/hide only the function matching the purpose of developer, therefore, you can operate on screen configuration which is easy to use due to the unique screen.

To launch Designer

You can click the [Designer] on the DataSpiderStudio.

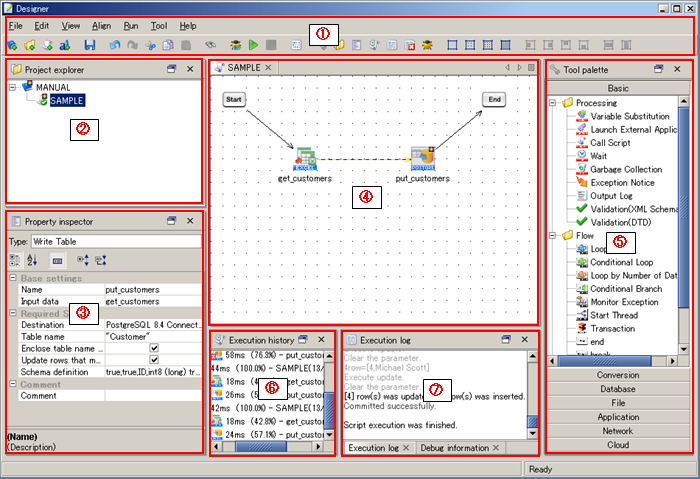

Designer Screen Configuration

Number in the screen capture above	Name	Description	Remarks
(1)	Menu	Various menus is are being set to perform the basic operations of the designer.
(2)	Project explorer	You can create projects, scripts, and folders, and execute scripts.
(3)	Property inspector	You can configure various component icons which are created on the script canvas.
(4)	Script canvas	Drag and drop various component icon on the script canvas, you can create a flow by drag and drop icons.
(5)	Tool palette	Necessary component icons for creating flow on script canvas will be registered.

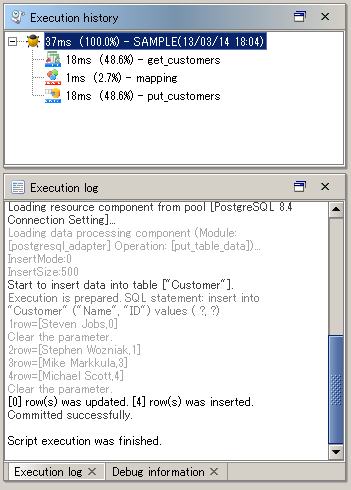

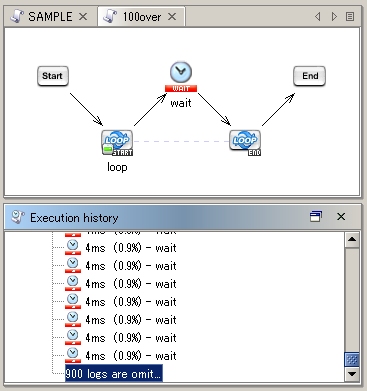

(6)	Execution history	When you run the script in debug mode, processing time of icon and processing time of entire script and percentage of process will be displayed in percentage.

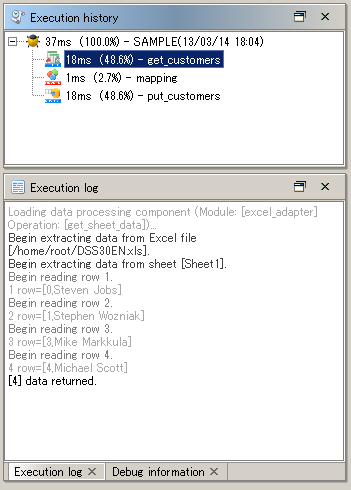

(7)	Execution log	When you run the script in debug mode, execution log display.	The log information depends on the log level.
	Debug information	When you run the script in debug mode, values of script variables inside script will display.
	Error log details	When you run the script in debug mode,error details will display.

Item name		Description	Remarks
New	Project	Creates a new project.
	Folder	Creates a new folder.
	Script	Creates a new script.
	Script variable	Creates a new "Script variable".
Open project		Opens an existing project.
Save project		Saves the project.	There are notes on saving projects. Refer to "Notes" for details.
Rename project		Renames the name of the project
Close project		Closes the project.
Team development	Commit	Commit the the local project to the server project. If the changes crash, it will be detected as a conflict.	Enable when team development is enabled. Refer to "Team Development" for details.
	Update	Update the local project with the the server project. If the changes crash, will be detected as a conflict.
	Replace project with latest version	Destroy the local project and overwrite with the latest server contents.
	Resolve conflicts of projects	Display the menu related to the project conflict solving. [Confirm conflict information of the projects]: Display the project conflict information dialog. [Replace project with latest version]: Destroy the local project and overwrite the project with the latest server contents. [Continue local editing]: Override the local contents and solve the project conflict. Committing to the server is only possible afterwards.
Register project as service		Register created project to server. For projects registered to server, you can execute them from external system such as triggers or ScriptRunner.	See Restrictions on characters used in the names of the services for the restrictions on the usage of characters in service names.
Generate project specifications		Generates project specifications in HTML form in client OS local file system.	The definition of a global resource information is not output. Refer to Generate project specifications for details.
Close editor		Closes the selected editor.When two or more editors are selected, only the active editor will be closed.
Close all editors		Closes all editors opened.
Properties		Shows the property dialog.
Exit		Exits Designer.

Edit menu

For icons and scripts being selected, each editing operation can be performed.

Description of items

Item name	Description	Remarks
Undo	Cancel the last editing action, then back to the last script status.	About Undo/Redo function specification limits, refer to here.
Redo	Execute again the edition operation which was canceled by "Undo".
Cut	Cuts selected scripts and icons.
Copy	Copies selected scripts and icons.
Paste	Pastes copied scripts and icons.
Delete	Deletes selected scripts and icons
Select all	Select all the icons or scripts.
Search	Find the component from the project that are currently opened.	In the [Search component] screen, press enter to close the screen without searching. To execute the search process, press [Search].

View menu

you can display the various settings in the designer such as show/hide frame, or the showing content on script canvas.

Description of items

Item name		Description	Remarks
Show process flow		Select to show/hide process flow on scripts canvas (black line).
Show PSP data flow		Select to show/hide PSP data flow on scripts canvas (yellow thick line).
Hide grid		Hide the grid on script canvas to hide the script.
Show 32x32 grid		Displays 32x32 grid on script canvas.
Show 16x16 grid		Displays 16x16 grid on script canvas.
Show 8x8 grid		Displays 8x8 grid on script canvas.
Show tool palette		Select to show/hide "Tool palette".
Show project explorer		Select to show/hide "Project explorer".
Show property inspector		Select to show/hide "Property inspector".
Show execution history		Select to show/hide "Execution history".
Show execution log		Select to show/hide "Execution log".
Show error log details		Select to show/hide "Error log details".	It does not appear by default .
Show debug information		Select to show/hide "Debug information".
Show test data view		Select to show/hide "Test data view".	It does not appear by default .
Show test result view		Select to show/hide "Test result view".	It does not appear by default .
Sort icon		Sort the icon directory under the project/folder selected in project explorer. Sorting icon is not performed recursively, it is only for the icons right under the selected icon.
	Name	Sort icon by name.
	Date created	Sort icon by date created.
	Date modified	Sort icon by date modified.
Initialize layout		Return to the default state of the view/editor of all .
Maximize current view		Maximize the the selected frame on designer.
Switch editor		Switch editors being deployed on script canvas.
Switch view		Switch between each frame displayed in the designer.

Alignment

You can place icons on script canvas.

Description of items

Item name	Description	Remarks
Align left	The script is left-aligned. When left aligning, coordinate X of all the icons selected in script canvas will be located same as the icon in the leftmost among selected icons.
Align right	The script is right-aligned. When right aligning, coordinate X of all the icons selected in script canvas will be located same as the icon in the rightmost among selected icons.
Align top	The script is top-aligned. When top aligning, coordinate X of all the icons selected in script canvas will be located same as the icon in the topmost among selected icons.
Align bottom	The script is bottom-aligned. When bottom aligning, coordinate X of all the icons selected in script canvas will be located same as the icon in the bottommost among selected icons.
Align horizontally	Place the selected icon to the middle of the left and right.
Align vertically	Place the selected icon to the middle of the top and bottom.

Execution test

You can set/release breakpoint or operation related to running script.

Description of items

Item name	Description	Remarks
Start/restart debug	Execute the script in debug mode.When running debug, the script works as follows. Suspends operation at the set breakpoints on the script icon. If the script is stopped at breakpoint, restart the operation of the script. In execution history, processing time is displayed for each icon.	There are notes on running scripts. Refer to "Notes" for details. Do not close the Designer while the script is stopped at the breakpoint. Make sure to restart and end the script before closing the Designer.
Run	Run the script.If running, the script works as follows. Even set a breakpoint in the script icon, run the process of script until the END icon without stop. In execution history, processing time is not displayed for each icon.	There are notes on running scripts. Refer to "Notes" for details.
Stop	Stop the running script.	It could take minutes to stop some scripts.
Build	Compile a script.
Set/release breakpoint	Set/release breakpoint for icons selected on script canvas.
Release all breakpoints	Release breakpoint for all icons on script canvas.

Tool menu

Start each type of tool related to designer.

The dedicated tool menu is displayed in the Mapper Editor.

The dialog to set options for the designer.In the Options dialog you can set the following options.

Description of items: Execute

Category	Item name	Description	Remarks
Execution type	Specify type	Select whether to specify "Type" when you run scripts on Designer. [Checked]: Specify type. [Not Checked]:(default) Do not specify type.
	Specify type when executing	Select or enter the type when you run scripts on Designer.	The default value is "For test". Enable when [Specify type] is [Checked]. User-specified type does not appear in pull-down menuPlease enter directly into the input field. Refer to "User specified types" for details. When the [OK] button clicked without type, the [Specify type when executing] is set to be unckecked.
	Use default type when a specified type is not found	Select whether to use default type when the specified type is not found. [Checked]: Use default type. [Not Checked]:(default) "PoolNotDefinedException" error occurs.	Enable when [Specify type] is [Checked].
	Display confirmation dialog when you execute by types other than default	Select whether to display confirmation dialog when you execute by types other than default [Checked]:(default) Display confirm dialog. [Not Checked]: Do not display confirm dialog.
Log	XML Log	Select whether to output log information to the "XML log". [Checked]:(default) Output XML log. [Not Checked]: Do not output XML log.
Log	Log level	Select a log level when you run scripts. [NOTICE]: [INFO]:(default) [FINFO]: [FINEST]: [DEBUG]:

Description of items: Edit

Category	Item name	Description	Remarks
General	Number of histrory of recently used project	Enter the number of history of recently used projects shown in the Recently used Projects list.	The default value is "10".
General	Clear history	Clears history of recently used projects.
Edit script	Display mapping making dialog when you draw data flow	Select whether to show mapping creation dialog when you create a data flow. [Checked]:(default) Show mapping creation dialog. [Not Checked]: Do not show mapping creation dialog.
Register project as service	Show the commit project dialog when you register a project as a service.	Select whether to show the commit project dialog when you register a project as a service. [Checked]:(default) Show the commit project dialog. [Not Checked]: Do not show the commit project dialog.	Enable when team development is enabled. Refer to "Team Development" for details.
Smart Compiler	Use Smart Compiler upon data flow creation	Select whether to use Smart Compiler upon data flow creation. [Checked]:(default) Uses Smart Compiler. [Not Checked]: Does not use Smart Compiler.	For details on Smart Compiler, please refer to "Smart Compiler".
Automatically save project	Enable automatically save project	Select whether to save projects automatically. [Checked]:(default) Save projects automatically. [Not Checked]: Do not save projects automatically.	Refer to Automatically save project for details.
Automatically save project	Time to start automatically save	Specifies the time period in minutes to start saving the project automatically.	Enable when [Enable automatically save project] is [Checked]. The default value is "15". Range of values is from "10" to "25".

Help menu

Shows help and the version of the DataSpiderServer.

Description of items

Item name	Description	Remarks
Help	Shows the help window.
Version info	Shows the version of DataSpiderServer.

Project explorer

You can deploy projects, configure properties of scripts, and create script variables.

Project menu
Script menu
Folder menu

Script variables
Script properties

Project menu

The right click menu when you select a project.

Description of items

Item name		Description	Remarks
New		Creates a new folder or script to the project.
Paste		Pastes folders or scripts copied.
Delete		Deletes the selected project.
Sort icon		Arrange by the specified order the icon inside projects selected.
Close project		Closes the selected project.
Team development	Commit	Commit the the local project to the server project. If the changes crash, it will be detected as a conflict.	Enable when team development is enabled. Refer to "Team Development" for details.
	Update	Update the local project with the the server project. If the changes crash, will be detected as a conflict.
	Replace project with latest version	Destroy the local project and overwrite the project with the latest server contents.
	Resolve conflicts of projects	Display the menu related to the project conflict solving. [Confirm conflict information of the project]: Display the project conflict information dialog. [Replace project with latest version]: Destroy the local project and overwrite the project with the latest server contents. [Continue local editing]: Override the local contents and solve the project conflict. Committing to the server is only possible afterwards.
Register project as service		Register the selected project to server as a service.	For more information, refer to "Register project as service"
Restore project from server		Restores a project from a back up file by reference version name, update date time, update user.
PSP data flow operation	Enable at once	Of all the scripts in the selected projects, changes the modifiable data flow into a PSP data flow.	For details on Smart Compiler, please refer to "Smart Compiler".
PSP data flow operation	Release at once	Of all the scripts in the selected projects, changes the PSP data flow into a data flow.
Generate project specifications		On client local file, generate HTML generates a form of project specifications.	The definition of a global resource information is not output. Refer to Generate project specifications for details.

Script menu

The menu shown by selecting script then right-clicking.

Description of items

Item name		Description	Remarks
New		Creates a new "script variable" in the selected script.
Open		Opens the selected script to the script canvas.
Cut		Cuts the selected script.
Copy		Copies the selected script.
Paste		Pastes the copied or cut script.
Delete		Deletes the selected script.
Lock script		Locks the selected script by the current user.
Unlock script		Unlocks the script.	The following users can unlock scripts. Administrator users. Users who locked the script. Users who can write the project the script is in.
Team development	Replace script with latest version	Destroy the local edition and overwrite the script with the latest server.	Enable when team development is enabled. Refer to "Team Development" for details.
	Restore script from local history	Recover the script from the local history.
	Resolve conflicts of scripts	Display the menu related to the script conflict solving. [Confirm conflict information of the script]: Display the Script properties which shows conflict information of the script. [Replace script with latest version]: Destroy the local script and overwrite the script with the latest server contents. [Continue local editing]: Override the local contents and solve the script conflict. Committing to the server is only possible afterwards.
Output XML for executing script		On client local file system, output ScriptRunner startup configuration file.	The ssl element is not output.Set the ssl value manually.
Restore script from server		Restores a script from a back up file by reference version name, update date time, update user.
PSP data flow operation	Enable at once	Of the selected scripts, changes the modifiable data flow into a PSP data flow.	For details on Smart Compiler, please refer to "Smart Compiler".
PSP data flow operation	Release at once	Of the selected scripts, changes the PSP data flow into a data flow.
Generate script specifications		On client local file, generate HTML project specifications.	The definition of a global resource information is not output. Refer to Generate project specifications for details.
Properties		Script properties will be displayed.

In generating project/script specification, if you generate script specification including the folowing script component, component order will be output as below.

Loop
Conditional Loop
Loop by Number of Data
Conditional Branch
Monitor Exception
Start Thead
Transaction

Example: If the contents of the script is as below,

      start → Start Conditional Branch → End Conditional Branch → Wait(1) → end
                   └      Condition → Wait      ┘

Then order of the list of specification components is as below.

      start → Start Conditional Branch → End Conditional Branch → Wait(1) → end → Condition → Wait

Folder menu

The menu shown by selecting script then right-clicking.

Description of items

Item name		Description	Remarks
New		Creats a new folder or a screpit in a folder.
Cut		Cuts the selected folder
Copy		Copies the selected folder
Paste		Pastes the copied or cut folder or script.
Delete		Deletes the selected folder.
Sort icon		Puts the icons in a selected folder in order with the specified order.
PSP data flow operation	Enable at once	Of all the scripts in the selected projects, changes the modifiable data flow into a PSP data flow.	For details on Smart Compiler, please refer to "Smart Compiler".
PSP data flow operation	Releases at once	Of all the scripts in the selected projects, changes the PSP data flow into a data flow.

Script variables

You can create a script variable on the [File]-[New]-[Script variable].

Required settings

Description of items

Item name	Description	Remarks
Variable name	Enter the name of the variable.
Variable type	Select the type of the variable. [String]:(default) [Integer]: [Decimal]: [Date/time]: [Boolean]: [Binary]: [XML]:	For more information about type, refer to "Script variable". You cannot change XML type defined variables can be changed to any other typeAlso, You cannot change variables design by type which is not XML type to XML type.
Initial value	Enter the initial values of variables.
Use as script input variable	[Checked]: Set script variables as input variables. [Not Checked]:(default) Do not set script variable as input variable.	You can also set from script properties [I/O].
Use as script output variable	[Checked]: Set script variables as output variables. Available to refer from out of script. [Not Checked]:(default) Do not set script variable as output variable.	You can also set from script properties [I/O].

Comment

Description of items

Item name	Description	Remarks
Comment	You can write comment.

Script properties

Sets the following settings.

Basic information

Shows information about the script as follows.

Item name	Description	Remarks
Conflict information	Shows conflict information of the local script and the server script.	Enable when team development is enabled and the script is conflicted. Refer to "Team Development" for details.
Last modified on server	Shows the time when the most recent version of the server project was saved..
Last modified user on server	Shows the user who commit the most recent version of the server project .
Comment	Shows the comment of the most recent version of the server project .
Last modified on local	Shows the time when the the most recent version of the local project was saved.
Lock information	Shows the status of locked or not locked. When the script is locked, the State is "Locked. " and when the script is not locked, the State is "Not locked."
Owner	Shows the owner who locked the script.	Shows when the [State] is "Locked." .
Host which locks	Shows the host name or IP address the user who locked the script is logging in.	Shows when the [State] is "Locked." .
Time when lock was acquired	Shows the time when the lock was acquired.	Shows when the [State] is "Locked." .

I/O

Sets I/O settings for script variables on the "I/O" configuration dialog.
You can set I/O settings of all script variables in this "I/O" configuration dialog. You can also set I/O settings of each script variable on the script variable properties.

Refer to "I/O" for details.

Transaction

Select a transaction type of the script.The value defaults to "SUPPORTS".

Refer to "Transaction" for details.

Data processing method

Select a data processing method of the script.

Refer to "Mass data processing" for details.

Execution test

You can set values which are defined in the [Execution test] to script input variables, when the script is executed in debugging mode.
Enabled when the [Set argument value when test is executed] is checked.

Comment

You can write a short description.

Generate project specifications

Basic information

Description of items

Item name	Description	Remarks
Output target	Enter the directory path of the client OS local file system to the output specifications. Click [Browse] button to activate the file Selectr and Select the directory.	Refer to "OS Local File System" for client OS local file system. In the Studio for Web, compress the specification and download it as a ZIP file.
Output viewing PSP data flow	Select whether to output viewing PSP data flow. [Checked]: Output the PSP data flow with orange thick lines. [Not checked]:(default) Output the PSP data flow with orange dotted lines.

Author information

Description of items

Item name	Description	Remarks
Company name	Enter an optional company name.	The information you enter is output to specifications.
Project name	Enter an optional project name.	The information you enter is output to specifications.
Name	Enter an optional name.	The information you enter is output to specifications.
Date modified	Enter an optional modified date.

Script Canvas

In script canvas, you can put component icons on a script canvas and drag & drop them to make flows.

For more details, refer to "Placing component icons" and "Drow a flow".

Component menu

This is the menu which is shown when you select and right-click a component icon.

Description of items

Item name		Description	Remarks
Set/Release breakpoint		Set/Release breakpoint for the selected icon.
Cut		Cut the selected icon.
Copy		Copy the selected icon.
Delete		Delete the selected icon.
Align	Align Left	Align left the selected icons. When you execute Align Left, X-coordicates of all the selected icons on the script canvas becomes equal position to that which is at the most left.
	Align Right	Align right the selected icons. When you execute Align Right, X-coordicates of all the selected icons on the script canvas becomes equal position to that which is at the most right.
	Align Top	Align top the selected icons. When you execute Align Top, Y-coordicates of all the selected icons on the script canvas becomes equal position to that which is at the most top.
	Align Bottom	Align bottom the selected icons. When you execute Align Bottom, Y-coordicates of all the selected icons on the script canvas becomes equal position to that which is at the most bottom.
	Align Horizontal	Justify the selected icons horizontal.
	Align Vertical	Justify the selected icons vertical.
Global Schema	Register Input Schema	Register input schema of the selected icon as global schema.	For more details, refer to "How to register from script canvas".
Global Schema	Register Output Schema	Register output schema of the selected icon as global schema.	For more details, refer to "How to register from script canvas".
Properties		Open the properties window of the selected icon.
Help		Open the help of the selected icon.

Execution history

When you run the script in debug mode, processing time of icon and processing time of entire script and percentage of process will be displayed in percentage.

Execution History

The processing time of each icon and entire script are displayed.

The percentage of time to run script is always displayed as "100.0%"

Summing up the percentage of running time of each icon in the script may not get 100. This is due to the percentage of time of each execution is shown by cutting to two decimal places.

In case of successful execution

In case of error occurs in execution
If an error occurs during script execution, the icon will appear as X failed mark.

Narrow down execution log

When you select an icon that is displayed in the execution history, you can view the log output during the execution of the icon.

If you are using threading process, you cannot narrow down execution log of each icon when threading process. Log on threading process is associated with all thread icons.

When selecting a script

When selecting an icon

Icon abbreviation

If number of icons that appear in the execution history become large by repeated process, icon will be shown by abbreviation. The maximum number of icons: 100 child node for each icon.

Show icon abbreviation:

Undo/Redo function

Undo by "Undo" and redo by "redo". Refer to "Menu".
Holds the operation history in script unit.The unit is not the editor unit.
If you save, then the operation history is cleared.
Focus will be set on editor in which Undo/Redo is performed.
Undo/Redo targets are as follows
- Create/change/migrate/delete script.
- Operation on script canvas (ex:alocate/migrate/change setting/set flow for icon)
- Operation on Mapper editor (ex: locate/migrate/delete/edit schema/change setting/ set mapping for icons)
- Editing operations on HTML Builder (such as input text/edit scheme)
- Change configuration on Property inspector(ex: script variable/component/Mapper logic)
- Open and close the editor
The following operations are not the target of Undo/Redo.
- Create new/remove project
- Rename Project
- Create new/delete/migrate script.
- Configure script setttings (script name, data proccess method...)
- Create new/delete/move folder
- Set test data
- Create New/delete user-definition logic
- Edit custom logic
- Set global resource (operation to select global resource on adapter is Undo/Redo target)
- Show grid on script canvas (Viewing frid on Mapper canvas is Undo/Redo target.)
- Change screen layout
If you undo the process after you create a script variable in the Project Explorer while the Mapper Editor is open, the [Save project] button on the Toolbar will be invalid.
In that case, set the focus on the script canvas or the script in the Project Explorer to enable the [Save project] button.

About microsecond data

You cannot handle microsecond data for some adapters.

The adapters compatible with micro seconds are as follows.

Access adapter
DB2 adapter
Oracle adapter
PostgreSQL adapter
SQL Server adapter

Specification limit

Designer

Script variables and component variables in the same script must be unique in names.

Projects which open on Designer are not able to be modified on My Project.
Close projects on Designer when you modify the projects on My Project.

Projects which open on Designer are not reflected their permissions.The permissions will be reflected after closing the projects.

If you changed a project name, the name shown in [Service name] when you execute [Register project as service] is as follows:
- The service name (if the service exists)
- The project name (if no service exists)
In a properties settings dialog or the "Add mapping" dialog, the Enter key is not dependent on the selected button or input field. If you press Enter, the existing setting is always applied and the dialog will be closed.

Think about the case you are trying to open a properties settings dialog by double-click. As it takes time, you double-click again to open a dialog.
In that case, you may have multiple dialogs open. If you encounter this situation, proceed properties settings on the very front dialog and close it by clicking [Finish]. For other dialogs left open, you close those by clicking the [Cancel] button.

If a component variable in a component which is not connected with a process flow is set to a property of a component which is connected with a process flow, a script compilation will fail.

In the "Script execution error" dialog which appears only when the script execution is failed, even if you changed the size of the dialog, the vertical length of the error details will be limited only to a certain point.

At debug execution, the process flow to the end icon in a flow process (such as Loop and Conditional Branch) is not highlighted.

If the below events happen, configure [Initialize layout] from [View] in the tool menu.
- Close the designer once while maximizing the script canvas, and open it again, the designer will come up with the each of the flames closed.
- Maximize the execution log or the error details log and get those back to the original size, the layouts collapse./li>

Project explorer

The [Properties] of the right click menu of loading scripts can not be selected.

Execution history

When two or more Call Script operations are executed in a Start Thread operation, tree structure of the Call Script operations is not displayed correctly on the Execution history.

If a Call Script operation which executes a script not opened on the Designer is executed on the Designer, execution information of the Call Script operation is not displayed.

Execution log

Binary type script variables are written as "String" type in the execution log.

Binary type script variables are written to the execution log with the "/0101/0110/1" format.

Generate project/script specifications

In the Write Table operation in the database adapter, if you have not checked [Update rows that match the value of the key], the schema information in [Schema definition] is not output to the specification.

"Name" and "Type" of the component icons without name/type are displayed as blank in the "Component list" in the specification.
- The "component icons without name" are as follows:
  start, end, end loop, end conditional loop, end loop by number of data, end conditional branch, monitor exception, end monitor exception, end thread, end transaction, break, continue, memo, end group
- The "component icons without type" are as follows:
  end loop, end thread, end transaction, end group
The property fields that have only half-width space configured are treated as "not set" in the specification.

Previewer

You can load up to 1MB for previewer.
If you specify a file of more than 1MB, the content from beginning to 1MB will be read.

Selectr

When you select a directory in the file Selectr, the selected directory name is set in input field of file name.

Floating frame

If you set a frame (e.g. a project explorer in the Designer and an execution log) as floating by [Floating], it will be always displayed in front.

If you minimize the size of the Designer with the frame set floating, the floating frame will not be minimized.

Global resource settings

A name of a global resource cannot be modified on the Designer.

Component pool settings cannot be configured on the Designer.
Refer to the "Global Resource Settings" for details about modifying global resource settings.

Script component

If a script is interrupted when a sub script is executing in the script which the Monitor Exception operation checks the sub script in, the interruption will fail.

Adapter

The "x" icons are not shown in required settings in the table properties such as the [Column list / Column name].

The "x" icons might not be shown in required settings such as the [Table name] when you do drag and drop a new operation to the script canvas.

It takes long time to get response from components with a global resource which can not be connected due to invalid configuration.

Main exceptions

Exception name	Cause	Solution
InterruptedException	Throws when a running script is forced to terminate.	None.

Notes

Designer

If you execute a script while saving, saving may be failed.
Do not execute while saving a script.

Every time project is registered to server as service, it will consume the metaspace domain that are managed by Java.
Metaspace domain is proportional to the number of script and component in a project registered on a server.
For how to set up metaspace domain, Refer to "Property Reference".

The input value might not be set when you click the [Finish] button with the status which shows input status in the property configuration dialog. Click the [Finish] button after completing input status by pressing enter.

A new line is converted to space when the new line is input to a single line input field.

Project explorer

If you delete a folder or a script variable, the focus is out and saving a project is not possible.
In that case, select the project explorer again to set the focus.

Property inspector

Press enter to complete property settings when values are input to the property settings.

When you show a property inspector of the Monitor Exception operation or the Memo, values you input are not set even if you click the [OK] button.Select other views or the script canvas to complete to input.

Script component

In a flow operation such as the Loop operation or the Conditional Branch operation, the last component icons located between a start icon and an end icon of the operation are connected to the end icon with a process flow internally.
The start icon in the operation is connected to the end with a process flow icon internally as well.If there are no components between the start icon and the end icon, no compilation error will occur.

In the Loop operation, Conditional Loop operation, and Loop by Number of Data, the value of the count component variable is added after each loop.
