Host Group Info

In Host Group Info, configure the information to group the transfer destinations (remote hosts) and register those groups.

You can configure the Host group information by selecting > HULFT TRANSFER APP > Host Group Info in the navigation menu, or by using HULFT Transfer Migration.

This section explains the key points about setting the Host group information.



Points for settings

To create a new record in the Host group information, select Add on the Host Group Info page and enter transfer information.

Note

To set the Host group information, either one of the following permissions is required:

  • AppTransferHostGroupInfoFullAccess

  • AppTransferHostGroupInfoEditAccess

This section explains the screen transitions from the Host Group Info page and functions such as creating and deleting records in the Host group information.

= Remarks =

For the names and functions of the basic UI elements and other items of HULFT Square, refer to the following topic:



Host Group Info

(1) Add

Select this icon to create and set up a new record in the Host group information.

For details about how to set the Host group information, refer to Host Group Info > Add New.

(2) List of settings

The information about records that have been created in the Host group information is displayed in tabular form.

(3) Action menu

Select this icon to perform operations for records that have been created in the Host group information.

Selecting shows the menu of operations below.

Information

Displays detailed information about the selected record in the Host group information. You can edit or delete the displayed record in the Host group information.

When you select this menu item, Host Group Info > Name of the record in the Host group information is opened.

Delete

Deletes the selected record in the Host group information.



Host Group Info > Add New

On the Host Group Info page, select Add to open this page.

To create a new record in the Host group information, set information for the record by following the wizard-style pages step by step.

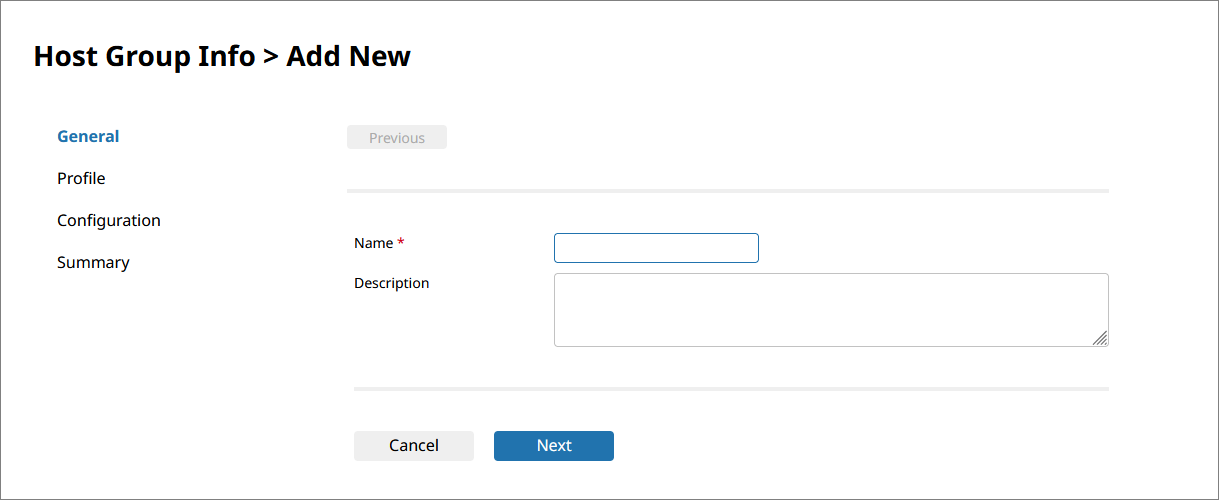

Step General

Name

Specify the name of the record in the Host group information.

Description

Specify comments to explain the record that you want to set in the Host group information.

Next

Displays the next page.



Step Profile

Profile

Select a profile to link with the record in the Host group information.

Next

Displays the next page.

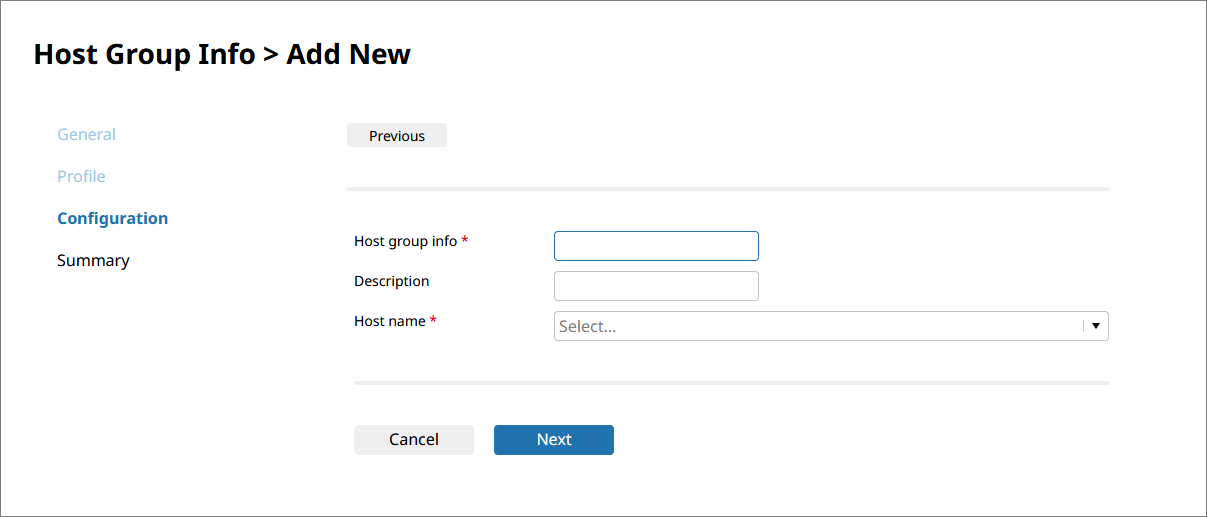

Step Configuration

You can group the transfer destinations (remote hosts) and register those groups.

The maximum number of host names that you can specify per host group is 1000.

Field list

This section explains the fields to be specified in HULFT Transfer Application.

Table 2.7 List of Host group information fields

Field value

Default value

Setting value

Optional

Remarks

Screen <HULFT screen>

File

Host group info <Transfer Group ID>

GRP



Alphanumeric characters

-

Within 50 bytes

Description <Comment>

COMMENT



Characters

Within 60 bytes

Host name <Host Name>

SERVER DEF to DEFEND



Alphanumeric characters, particular symbols (*1)

-

Within 68 bytes

:

Omittable

-

:

Mandatory

*1

:

Only hyphens (-) and periods (.) can be specified.

Explanation of each field

This section explains the fields to be specified in a record in the Host group information. The parenthesized strings are the names of each field. You can use them as field tags in a parameter file when registering the information.

Host group info (GRP)

Specify the ID that identifies the group of registered hosts.

This ID is linked with the host group ID (Receivers) in the Send configuration and the host group ID (Senders) in the Receive configuration.

Description (COMMENT)

Specify comments to explain the host group.

Host name (SERVER DEF to DEFEND)

Select the names of the remote hosts for sending or receiving.

Next

Displays the next page.



Host Group Info > Name of the record in the Host group information

On the Host Group Info page, select Information from the action menu in the list of settings to open this page.

You can view detailed information about the selected record in the Host group information.

(1) Name of the record in the Host group information

In this area, the name of the record in the Host group information is displayed.

(2) Profiles

Profiles for which you have the access permission are displayed in a list.

You can set the Host group information for each profile.

(3) Host name

The Host configuration name that has been set is displayed. Selecting the link moves to the Host Info > Host configuration name page.

(4) Edit

You can edit the record in the Host group information.

Selecting the Host group information from Copy Configuration From enables you to copy the Host group information settings that have been configured.

(5) Delete

Deletes all the settings of the record in the Host group information.
