Reading the upload and download information

Reading information for HULFT Cloud Storage Option Ver.8.5.1 or higher

In HULFT Cloud Storage Option Ver.8.5.1 or higher, you can use the following settings for receive files to upload or send files to download:

• Setting of information per transfer destination (individual settings)

• Setting of values used in common when the individual settings are not specified (default settings)

• The same settings as HULFT Cloud Storage Option Ver.8.5.0 or lower (downward-compatible settings)

For the operating environment for this version, refer to HULFT Cloud Storage Option environment (individual settings and default settings).

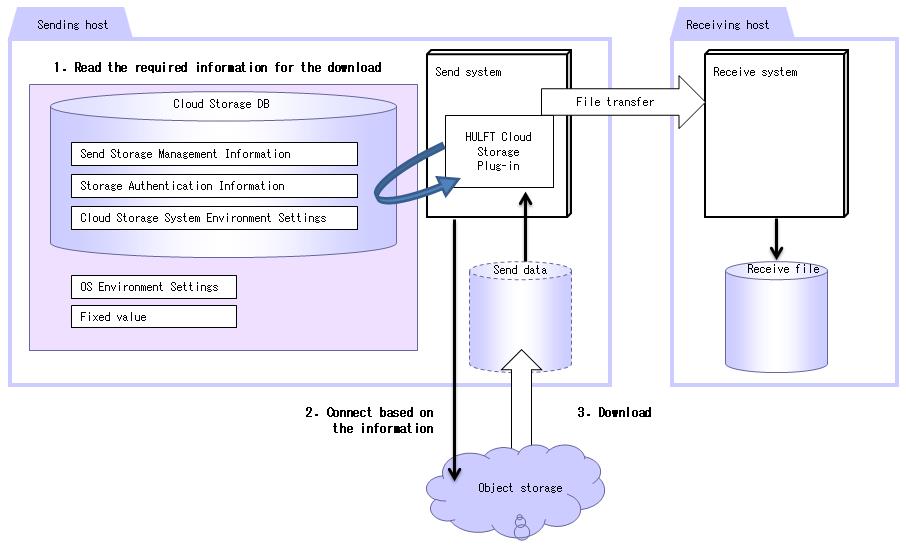

An overview of the operations for reading the information for each upload or download for HULFT Cloud Storage Option Ver.8.5.1 or higher is shown below.



Management information and authentication information for uploads and downloads can be set with the following fields in the Cloud Storage DB:

Table 1.5 Information that can be registered in Cloud Storage DB

Overview of Settings	Information Name	Section to be Consulted
Settings of upload information	Receive Storage Management Information	Receive Storage Management Information settings
Settings of download information	Send Storage Management Information	Send Storage Management Information settings
Settings of authentication information for uploads and downloads	Storage Authentication Information	Storage Authentication Information settings
Settings of whole Cloud Storage Option	Cloud Storage System Environment Settings	Cloud Storage System Environment Settings

Reading information for HULFT Cloud Storage Option Ver.8.5.0 or lower

For HULFT Cloud Storage Option Ver.8.5.0 or lower, you can upload receive files or download send files with the settings in HULFT or HULFT Cloud Storage Option. These settings are called downward-compatible settings. For the operating environment for this version, refer to HULFT Cloud Storage Option environment (downward-compatible settings).

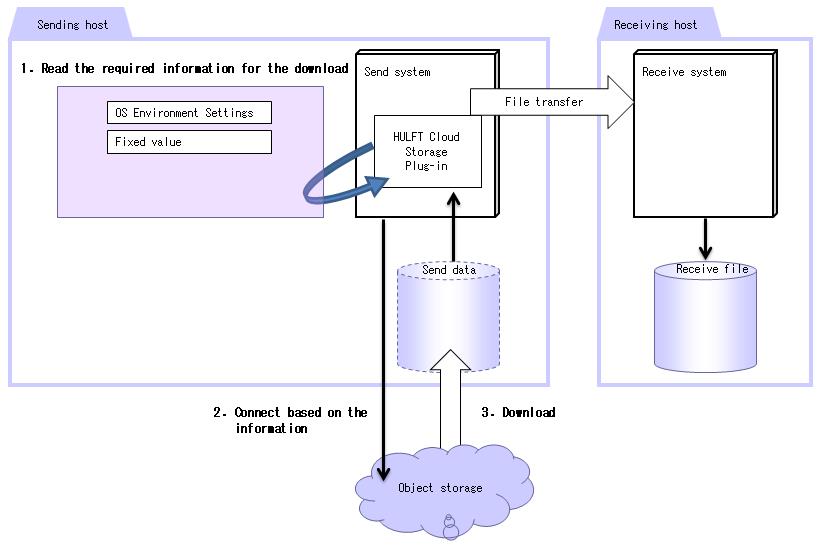

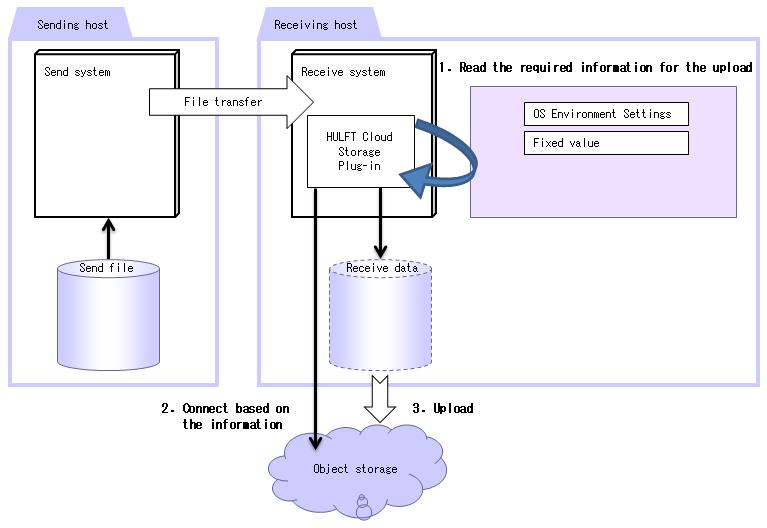

The operations for reading each kind of information for HULFT Cloud Storage Option Ver.8.5.0 or lower are explained below.
