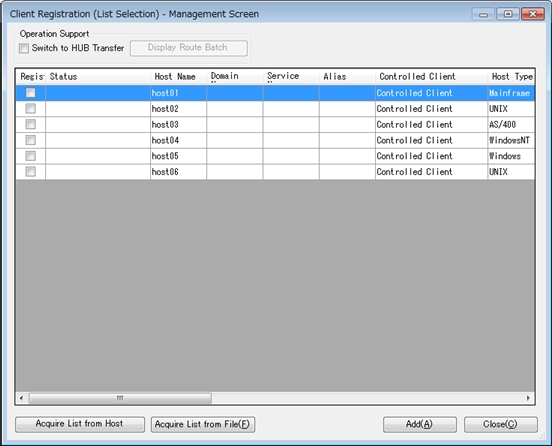

Client Registration (List Selection) Dialog Box
<Table> Explanation of Each Field
| Field Name | Description | Type | Restriction | Specification |
|---|---|---|---|---|
| Register | Select the check box of the client you want to register. | - | - | Optional |
| Status | This field shows the results of the registration of the client. | - |
Addition complete Addition complete (System Environment Settings acquisition failed) Addition complete (management information acquisition failed) Addition complete (Route Batch Modification failed) Failed (Error code: Detail code) |
- |
| Host Name *1 | This field specifies the local host name that is specified for HULFT to be registered (specify the host name in exactly the same format, including use of the upper case and lower case). | Alphanumeric characters and specific symbols *2 | The total number of bytes of 'Host Name.Domain Name' must be within 44 bytes | Mandatory |
| Unique name in the network | ||||
| Domain Name *1 | This field specifies the domain that the client belongs to. | Alphanumeric characters and specific symbols *2 | The total number of bytes of 'Host Name.Domain Name' must be within 44 bytes | Optional |
| Service Name | This field specifies the service name that is used to distinguish HULFT to be registered from other HULFT instances or HULFT-HUB Server instances that are operating on the same host. You do not need to specify this field if HULFT to be registered is the only HULFT instance that is operating on the host. *3 | Alphanumeric characters excluding ':' and '/' | Within 100 bytes | Optional |
| Unique name in the host | ||||
| Alias | This field specifies the name that appears on the screen of HULFT-HUB Manager. | Alphanumeric characters | Within 256 bytes | Optional |
| Controlled Client | This field allows you to select whether or not to register the client as a Client under Control. | - |
Clients under Control Client outside of Control (with Relay) Client outside of Control (without Relay) |
Mandatory |
| Host Type | This field allows you to select the host type. | - |
Mainframe Linux Windows IBMi |
Mandatory |
| Product Type | This field allows you to select the product type of the client. Select a suitable option by referring to <Table> Client Types and Corresponding Product Types. | - |
HULFT10 HULFT8 HULFT7 |
Mandatory |
| Notify User Details *4 |
Select this checkbox to specify notifying the account information of HULFT-HUB Manager to a client. For the operation log of the current client, the login account for HULFT-HUB Server is stored on User ID (Management screen), and the user ID on the operating system on which HULFT-HUB Manager is operating is stored on User ID (OS). |
- | - | Mandatory |
| Forced Strong Key Mode *8 | Select this check box if the Forced Strong Key Mode is 'Enabled' on the client. | - | - | Mandatory |
| Kanji Code Type *6 | This field allows you to select the Kanji code type. | - | Linked with the Host Type | Mandatory |
| JIS Year *7 | This field allows you to select the JIS year for the Kanji code. | - |
78JIS 83JIS |
Mandatory |
| Receive Port No. | This field specifies the Receive port number. | Numeric value | From 1 to 65535 | Mandatory |
| Request Acknowledge Port No. | This field specifies the Request Acknowledge port number. | Numeric value | From 1 to 65535 | Mandatory |
| Retry |
Select this check box to allow the client to attempt to carry out the transfer again after the client waits for the specified period of time if the Receive processing on the client on the receiving side has reached the multiplex level. The setting of this field is effective when you transfer data via HULFT-HUB Server. |
- | - | Mandatory |
| User Name | This field specifies the user name for connecting to the client. | Alphanumeric characters | Within 20 bytes | Optional |
| Password | This field specifies the password for connecting to the client. | Alphanumeric characters | Within 14 bytes | Optional |
| Connect ID |
This field specifies the ID that is used to configure the XML Conversion Information. Specify this field only for the host on the sending side when you perform receiving in XML format. |
Alphanumeric characters | Within 16 bytes | Optional |
| Comment | This field specifies a comment for the client. | Alphanumeric characters | Within 60 bytes | Optional |
| Notification Host Name *5 | This field specifies the host name that is notified to the relevant client as the name of the remote host for the file transfer. | Alphanumeric characters and specific symbols *1 | Within 68 bytes | Optional |
| *1: | After registration of the client, 'Host Name.Domain Name' appears as the host name on the screen. For example, if the Host Name is 'HOST2006' and the Domain Name is 'saison.co.jp,' the host name of the client is 'HOST2006.saison.co.jp.' |
| *2: | The only symbols allowed are '-' (hyphen) and '.' (period). |
| *3: | You can use the Service Name to distinguish HULFT or HULFT-HUB Server from other HULFT instances or HULFT-HUB Server instances on the same host only when 'Format with Port No.' is specified for the Notification Host Name for Transfer via HUB in the System Environment Settings of HULFT-HUB Server. When 'Format with Port No. for Controlled Clients Only' or 'Format without Port No.' is specified, do not allow multiple HULFT instances or HULFT-HUB Server instances to coexist on the same host. |
| *4: | You can select this check box only when you specify 'Client under Control' for the Controlled Client. |
| *5: | You can specify this field when all the following conditions are fulfilled: |
| - The Controlling Server is HULFT-HUB Server Ver.3.5 or higher | |
| - 'Client under Control' or 'Client outside of Control (with Relay)' is specified for the Controlled Client | |
| *6: | If the client to be registered is lower than Ver.8.1, specify the code of the client. If it is Ver.8.1 or higher, specify the code to match the specification of the Code Set for Transfer (cs4trnsfr) in the Client System Environment Settings. |
| *7: | If you specify a code set that is not Japanese for the Kanji Code Type, HULFT-HUB Manager does not use the value of the JIS Year. |
| *8: | You can specify this field when all the following conditions are fulfilled: |
| - The Controlling Server is HULFT-HUB Server Ver.3.9 or higher | |
| - 'HULFT8' is specified for the Product Type | |
| - 'Client outside of Control (with Relay)' is specified for the Controlled Client |
| [Note] | When the Controlling Server is HULFT-HUB Server that is lower than Ver.3, although you can select 'Client outside of Control (with Relay)' or 'Client outside of Control (without Relay)' for the Client under Control, the client is registered as a Client under Control in either case. |
