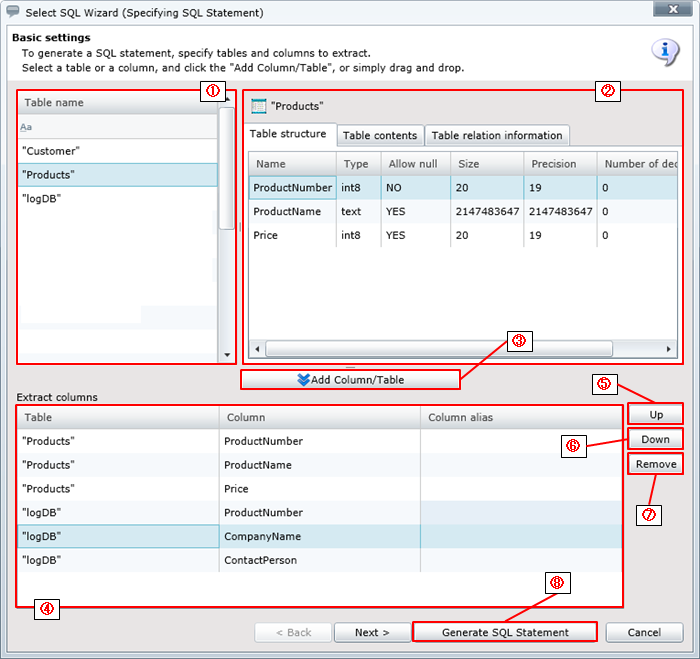

Numbering in the figure |
Name |
Description |
Remarks |
(1) |
Table list view |
Display a list of tables. |
- The maximum number of tables listed is determined by Global Resource settings.
|
(2) |
Table information pane |
Displays the information on the selected table. |
- Displays table structures, table data, and table related information
- For information displayed in the [Table structure] tab, refer to Table structure.
- For information displayed in the [Table contents] tab, refer to Table contents.
- For information displayed in the [Table relation information], refer to Table relation information.
|
(3) |
Add Column/Table |
Add the column selected in the [Table structure] tab in Table Information Pane to the extraction column editor.
|
- By selecting the table in the table list view and clicking [Add Column/Table], you can set the all columns read-only.
|
(4) |
Extracted column editor |
Set the order of writing read columns and an alias (the name of the extraction result column). |
- An alias is used for describing the result of a SQL statement and a Mapper schema.
|
(5) |
Up |
Move a read column up. |
|
(6) |
Down |
Move a read column down. |
|
(7) |
Remove |
Delete a read column. |
|
(8) |
Generate SQL Statement |
Automatically generate a SQL statement based on the settings. |
|

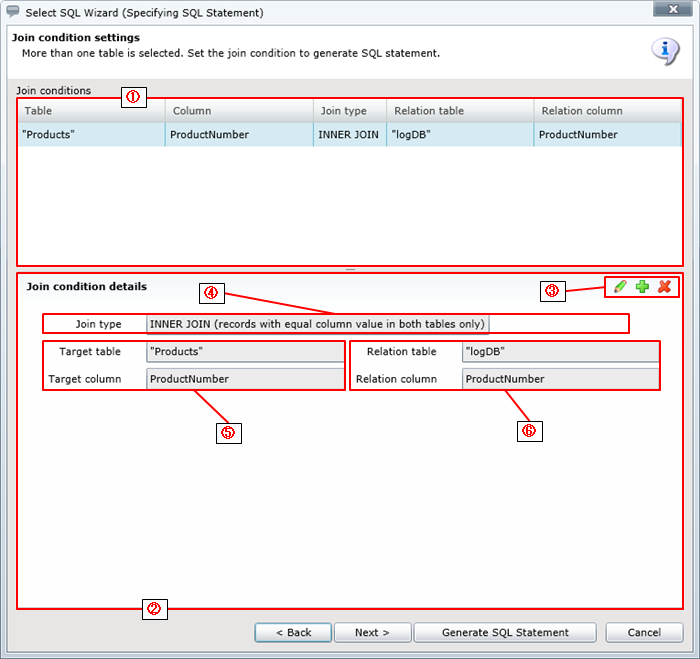

Numbering in the figure |
Name |
Description |
Remarks |
(1) |
Join condition list view |
Display a list of join conditions between read tables. |
- SQL statements are generated in the display order.
|
(2) |
Join condition editor |
Configure join conditions between read tables. |
- The join conditions are displayed in the join condition list view.
|
(3) |
Edit join conditions |
Add, edit and delete join conditions. |
- To edit joint conditions, select joint conditions from the joint condition list view and click [Edit].
- To add a new joint condition, click [Add].
- To delete a join condition, select the one from the join condition list view and click [Delete].
|
(4) |
Join type |
Configure join types.
- [INNER JOIN (records with equal column value in both tables only)]
- [LEFT OUTER JOIN (all records on the left and records with equal column value on the right)]
- [RIGHT OUTER JOIN (all records on the right and records with equal column value on the left)]
|
|
(5) |
Target table, Target column |
Set a name for the table and the column to be joined. |
|
(6) |
Relation table, Relation column |
Set a name for the table and the column to be joined. |
|

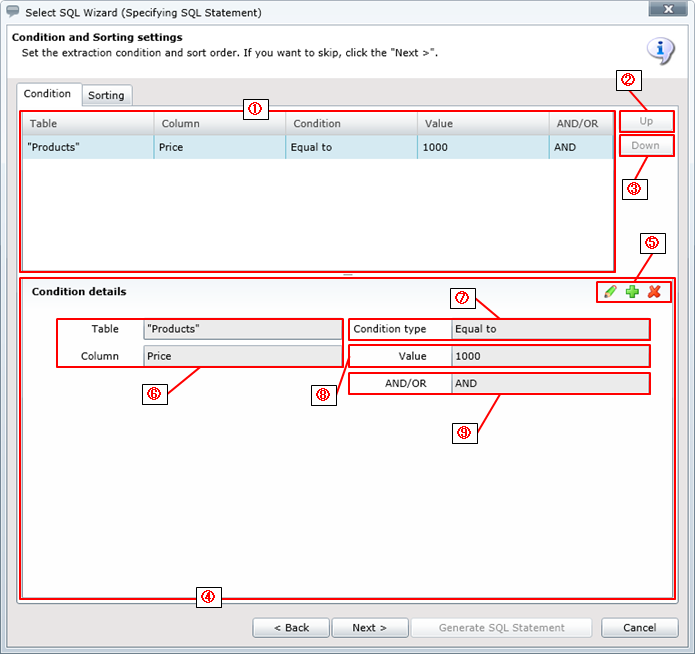

Numbering in the figure |
Name |
Description |
Remarks |
(1) |
Condition and Sorting settings |
Displays a list of extraction conditions for a read table. |
- SQL statements are generated in the order of list.
|
(2) |
Up |
Move an extraction condition up. |
|
(3) |
Down |
Move an extraction condition down. |
|
(4) |
Extraction Condition Editor |
Configure extraction conditions for a read table. |
- The extraction conditions are displayed in the extraction condition list view.
|
(5) |
Edit extraction conditions |
Add, edit and delete extraction conditions. |
- To edit an extraction condition, select the one in the extraction condition list view and click [Edit].
- To add a new extraction condition, click [Add].
- To delete an extraction condition, select the one in the extraction condition view and click [Delete].
|
(6) |
Table, Column |
Set a name for the table and the column to specify extraction conditions. |
|
(7) |
Condition type |
Configures the types of extraction conditions.
- [(Enter directly)]
- [Equal to]
- [Not equal to]
- [Greater than]
- [Less than]
- [Greater than or equal to]
- [Less than or equal to]
|
- If [(Enter directly)] is selected, the contents entered in the [Value] are directly added in a SQL statement.
- If [Equal to] is selected, conditions are added to the SQL statement in the "[Table].[Column] =[Value]" format.
- If [Not equal to] is selected, conditions are added to the SQL statement in the "[Table].[Column] !=[Value]" format.
- If [Greater than] is selected, conditions are added to the SQL statement in the "[Table].[Column] >[Value]" format.
- If [Less than] is selected, conditions are added to the SQL statement in the "[Table].[Column] <[Value]" format.
- If [Greater than or equal to] is selected, conditions are added to the SQL statement in the "[Table].[Column] <=[Value]" format.
- If [Less than or equal to] is selected, conditions are added to the SQL statement in the "[Table].[Column] >=[Value]" format.
|
(8) |
Value |
Specifies the read column conditions. |
- Depending on the data type of the read column, single quotes are automatically added to [Value].
For information on the data types applicable to automatic addition, refer to "Automatic addition of Single Quotes".
-
If [(Enter directly)] is selected in [Condition type], please use the consistent format for each database.
Example:
- If you want to read the records in which the value of the condition column is "Product A", set as "='Product A'"
- If you want to read the records in which the value of the condition column is "Product A" or "Product B", set as "IN('Product A', 'Product B'".
|
(9) |
AND/OR |
Specify logic operators for multiple conditions.
|
|

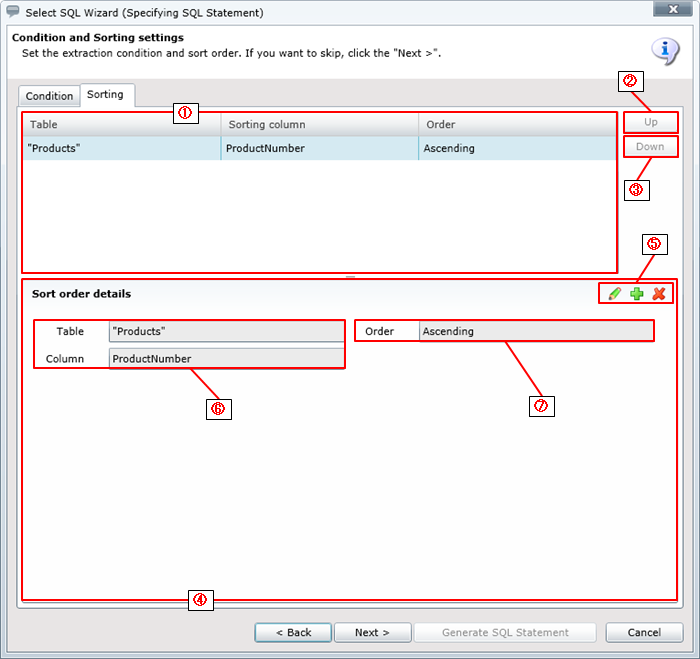

Numbering in the figure |
Name |
Description |
Remarks |
(1) |
Sort conditions list view |
Display a list of sort conditions for a read table. |
- SQL statements are generated in the order of display.
|
(2) |
Up |
Move a sort condition up. |
|
(3) |
Down |
Move a sort condition down. |
|
(4) |
Sort Condition Editor |
Configure sort conditions for a read table. |
- Sort conditions are displayed in the sort condition list view.
|
(5) |
Edit sort conditions |
Add, edit and delete sort conditions. |
- To edit a sort condition, select the one you want to edit and click [Edit].
- To add a new sort condition, click [Add].
- To delete a sort condition, select the one you want to delete and click [Delete].
|
(6) |
Table, Column |
Set a name for the table and the column you specify sort conditions. |
|
(7) |
Order |
Configure the sort order of a read column.
|
|

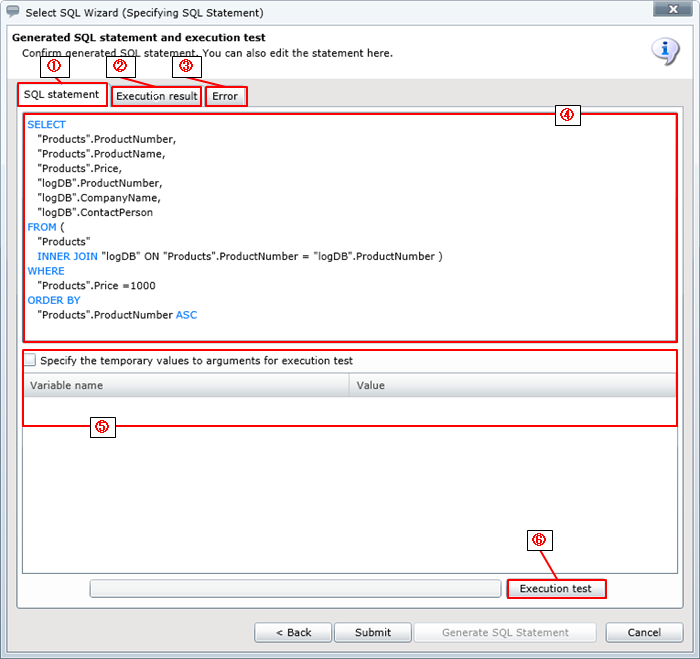

Numbering in the figure |
Name |
Description |
Remarks |
(1) |
SQL statement tab |
Display an automatically generated SQL statement. |
|
(2) |
Execution result tab |
Display the results of test execution. |
|
(3) |
Error tab |
If an error occurs during test execution, the error is displayed in this tab. |
|
(4) |
SQL statement editor |
You can edit an automatically generated SQL Statement. Also possible to write SQL functions which cannot be generated in a SQL Wizard. |
- If a SQL Statement is edited manually, it is not possible to edit in the Wizard.
|
(5) |
Set a formal parameter |
If a script variable is used in the extraction condition, you can replace the script value to the set [Value] and execute a test to the SQL statement.
Enabled if [Specify the temporary values to arguments for execution test] is checked.
|
- It is not possible to specify a formal parameter to an environmental variable or a SQL parameter.
|
(6) |
Execution Test |
Execute a SQL Statement. |
|
