Write Data(Update)

Operation Name

Write Data(Update)

Function Overview

This operation is to update data using the SOAP API update() call.

You must specify each records ID to use update().
However, with this component you may use a field other than ID as the key. In this case query() will be used to lookup the IDs based on the key.
In addition, if no corresponding record is found, it is possible to automatically add it using processing which makes use of create().

For details, please refer to Writing Method and Specifying a Key for Updating.

With regarding to the API specification utilized by this operation, please refer to the version of the API document, selected for the Global Resource, in the below-mentioned link.

Data Model

The data model of this component is the Table Model type.

Properties

For information about using variables, refer to "variables".
Basic Settings
Item name Required/Optional Use of Variables Description Supplement
Name Required Not Available Enter the name that appears on the script canvas.
Input Data Required Not Available Select the component on the script canvas.
Required Settings
Item name Required/Optional Use of Variables Description Supplement
Destination Required Not Available Select Global Resources.
  • [Add...]:
    Add new global resource.
  • [Edit...]:
    Global resource settings can be edited by [Edit Resource list].

Table Name Required Not Available Select the name of a table in Salesforce.
Schema definition Required - Set items subject to writing to Salesforce.
  • Limiting the settings to only items needed to be written to Salesforce (deleting unnecessary items from the Schema Definition) helps improve processing performance.

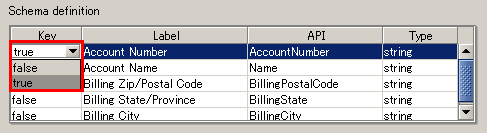

Schema definition/Key Required Not Available Select whether the target column of the table specified in [Table Name] is a key item for updating.
  • [true]:Specify as a update key item
  • [false]:Do not specify as a update key item
Schema definition/Label Required Not Available Display the lable name of the column of the table specified in [Table Name].
Schema definition/API Required Not Available Display the API name of the column of the table specified in [Table Name].
Schema definition/Type Required Not Available Display the data type of the row of the table specified in [Table Name].
Relationship definition Optional - In the case that relationship items exist in the Schema Definition, set items subject to updating by external key.
By selecting the external key item of the relation counterpart object, it becomes possible to pass data with an established relationship.
  • Available on API 14.0 or later versions, and cannot be used on API 7.0.
  • For details, please refer to Relationship Definition.
Relationship definition/Base field Required Not Available Display the API Name of the row of the relation item of the table specified in [Table Name].
Relationship definition/Relationship name Required Not Available Display the relationship name of the row of the relation item of the table specified in [Table Name].
Relationship definition/Related Object Optional Not Available Select the API Name of the relation counterpart object in the relation item column of the table specified in [Table Name].
Relationship definition/Foreign key field Optional Not Available Select the external key item of the relation counterpart object in the relation item column of the table specified in [Table Name].
  • If omitted, the ID of the relevant record of the relation counterpart object will be passed.
Property Action
Item name Description Supplement
Create schema... The items to be read from Salesforce can be added/deleted.
For setting methods, please refer to "Create Schema."

Option Settings
Item name Required/Optional Use of Variables Description Supplement
Column name type Required Not Available Choose the display type of the column name, for displaying the schema in mapping.
  • [Label]:
    The label name (item name) defined in Salesforce is displayed.
  • [API] :(default)
    The API reference name defined in Salesforce is displayed.

Batch size Required Available Specify a batch size for performing the write data operation on Salesforce.
  • The default value is "200".
  • A number of 1 or greater, up to 200, can be set. An error occurs if any number outside of this range is set.
  • Depending on the operating environment, increasing the batch size generally helps improve the performance of the write data operation.
  • According to the Salesforce adapter specifications, if you set a batch size to 200 when writing 10,000 records, the write operation is performed in 50 installments.
Writing Method Required Not Available Select either to add/update or only to update data to Salesforce.
  • [Update and Insert]:
    The update process is executed if the input data exist in Salesforce, and the insert process is executed if not.
  • [Update only]:(default)
    The update process is executed if the input data exist in Salesforce, and no process is executed if not.
Handling of null values Required Not Available Select, in the case that the input data is null for the update target field, either to overwrite the field by null or to skip it.
  • [Field value to null]:(default)
    If the input data is null, the update target field is overwritten by null.
  • [Skip null values]:
    If the input data is null, the update of the target field is skipped and it remains the same.
    If the input data is not null, the update target field is overwritten by the input data.

Whether or not to get result per rows Required Not Available Specify whether or not to obtain results, after writing to Salesforce.
  • [Get]:(default)
    Obtain the results of the write data operation.
  • [Do Not Get]:
    Do not obtain the results of the write data operation
  • If [Get] is selected, items specified in the Schema and items showing results can be passed to the subsequent processing as data in Table Model type.
  • Please refer to Schema about the obtained information.
  • Please refer to Usage Examples of Get Results for usage examples.
Base64 field input form Required Not Available Specify the input data type of items in Base 64 data type.
  • [Base64 data]:(default)
    Base64 Data is inserted.
  • [File path]:
    File path is inserted.
Property Action
Item name Description Supplement
Display Table Information... You can check the table structure of the object you are operating.
For more information on how to view the table structure, please refer to Display Table Information
Click [Load All Table Information....] if you would like to check the table structure of other objects.
Load All Table Information... Retrieve all possible table information
After running, you can verify the retrieved information from [Table Information].

Read schema definition from file... Select a file from the file chooser and read the name of field API on the first line of the file specified in the comma-separated values. Set this as the schema definition.
  • Please specify "UTF-8" encoding for the selected file.
Large Data Processing Settings
Item name Required/Optional Use of Variables Description Supplement
Large Data Processing Required Not Available Select a Large Data Processing Settings.
  • [Use the setting in the script]:(default)
    Apply Large Data Processing Settings settings of script property to adapter.
  • [Disable Large Data Processing]:
    Large Data Processing is not performed.
  • [Enable Large Data Processing]:
    Large Data Processing is performed.

Comment
Item name Required/Optional Use of Variables Description Supplement
Comment Optional Not Available You can write a short description of this adapter.
The description will be reflected in the specifications.


Schema

Input Schema

The number of columns varies depending on the [Schema definition] settings.

Output Schema

Information regarding the results of updating will appear in the column, set in the [Schema definition].
(Hereafter shown as "Lable/API")

<?xml version="1.0" encoding="UTF-8" ?>
<table>
  <row>
    <column>Label/API set in the [Schema definition]</column>
       :
    <column>update_result_id</column>
    <column>update_result_is_success</column>
    <column>update_result_is_created</column>
    <column>update_result_error_status_code</column>
    <column>update_result_error_message</column>
    <column>update_result_row_number</column>
  </row>
  <row>
    :
  </row>
</table>
Element Name Column Name(Label/API) Description Supplement
row
-
Repeats as many times as the number of processings performed based on the data given to the input schema.
For example, if two data records are updated by one input data record, this element would be repeated two times.
  • If [Do Not Get]is selected in [Whether or not to get result per rows], the repetition will be 0 times.
  • If mismatch data exist, such as that data types do not match, the order of input data and output data will not necessarily match. By specifying [Update_Result_Row_Number/update_result_row_number] as the order condition, the data can be sorted in accordance to the input data in the subsequent Mapper.
column update_result_id Salesforce ID is output.
update_result_is_success Success Flag is output.
  • [true]:Successfully processed
  • [false]:Process failed. Please check the [update_result_error_status_code] as well as [update_result_error_message].

update_result_is_created Create Flag is output.
  • [true]:A record is created.
  • [false]:No record is created.

update_result_error_status_code The status code, returned by the Salesforce API, is output.
  • In the below-mentioned case, the Salesforce adapter will output the code and message.
    • SALESFORCE_ADAPTER_ILLEGAL_DATA_TYPE
      This is set when the defined item type and input data type do not match. For example, if the item is defined as "double" but a character string is input (not a number).
    • SALESFORCE_ADAPTER_DATA_NOT_FOUND
      This is set when the target data is searched in Saleforce but cannot be found, in the case that key in Schema Definition contain items other than ID and also "Update" is selected in [Writing Mode].
update_result_error_message The message returned by the Salesforce API is output.
update_result_row_number Number is output based on the placement of the node within the data given to the input schema.

Reading Schema by Mapper

The schema will be read automatically.

Large Data Processing

Large Data Processing is supported.

Transaction

Transaction is not supported.

Usage on PSP Script

Cannot be used on PSP Script.

Available Component variables

Component Variable Name Description Supplement
insert_count The number of data that was successful in the addition processing is stored.
  • The default value is null.
update_count The number of data that was successful in the updating processing is stored.
  • The default value is null.
error_count The number of data that was unsuccessful in the addition or updating processing is stored.
  • The default value is null.
  • In the case that all the conditions below are satisfied, input data whose update targets do not exist are not included in the count.
    The number of input data whose update targets do not exist is stored in [not_exist_count].
    • [Update only] is selected in [Writing method]
    • [Get] is selected in [Whether or not to get result per rows]
    • [Key] contains items other than ID in [Schema definition]
not_exist_count The number of input data whose updating target data do not exist is stored.
  • The default value is null.
  • The value is not stored if any of the conditions below is not satisfied.
    • [Update only] is selected in [Writing method]
    • [Get] is selected in [Whether or not to get result per rows]
    • [Key] contains items other than ID in [Schema definition]
read_count The number of input data is stored.
  • The default value is null.
server_url The end point URL after Login is stored.
  • The default value is null.
session_id The session Id is stored.
  • The default value is null.
message_category In the case that an error occurs, the category of the message code corresponding to the error is stored.
  • The default value is null.
message_code In the case that an error occurs, the code of the message code corresponding to the error is stored.
  • The default value is null.
message_level In the case that an error occurs, the importance of the message code corresponding to the error is stored.
  • The default value is null.
operation_api_exception_code The ExceptionCode of the occured error, in a case of API error, is stored.
  • The default value is null.
  • For any error other than an API Error, the value is not stored.
  • The content to be stored may change according to the version of DataSpider Servista.
operation_error_message If an error occurs, the error message of the occured error is stored.
  • The default value is null.
  • The content to be stored may change according to the version of DataSpider Servista.
operation_error_trace When an error occurs, the trace information of the occured error is stored.
  • The default value is null.
  • The content to be stored may change according to the version of DataSpider Servista.

Writing Method and Specifying a Key for Updating

A updatig mode can be selected in [Writing method], and a key item that is used as a condition for updating can be specified in [Schema definition/Key]



In this operation, the process to be executed varies depending on the settings in [Writing method] and [Schema definition/Key].

Usage Examples of Get Results

If [Get] was selected in [Whether or not to get result per rows], the writing results can be passed onto the subsequent processing as Table Model type data.

Relationship definition

Regarding to the updating process of the Reference field, it needed to pass the ID of the referred object and update by Mapper in the previous versions.
By taking in this setting, the automatical obtainment and updating of the ID of the record which responds to the external key, becomes possible by passing the value of the external key item of the reference object.

Create Schema

The data items to be read from and/or to be written into Salesforce can be specified in the creation of a schema.
By specifying only the items indispensable for processing, the data traffic to Salesforce can be reduced, generally improving the processing performance.
When writing into Salesforce (adding or updating), it is necessary to make sure that the items "Not Creatable" and "Not Updatable" are not be chosen.



Number in the Image Name Description Supplement
(1) Selected Fields Select items for reading from and/or writing to Salesforce.
(2) UnSelected Fields Select items not for reading from and/or writing to Salesforce.
  • You can filter fields by inputting or selecting values from the input above the column name.
    Text fields will be filtered as Starting With the input value.

Display Table Information

This display shows the available operations on Salesforce tables as well as field properties of the tables.
Also, the field information can be printed out.



Number in the Image Name Description Supplement
(1) Table Name Select the table whose structure to be shown.
(2) Table Information Display the available operations on the selected table.
(3) Length Display the Number of Digit of item
(4) External ID Display whether or not the object item is set as an external ID.
(5) Createble Display whether or not it can be set a value when adding data.
(6) Updatable Display whether or not it can be set a value when updating data.
(7) Nullable Display whether or not it can be set NULL when adding or updating data.
(8) Default value Display whether or not Salesforce automatically set a default value when adding data.
(9) Reference To Display the referring object name if the item is in reference relationship or master-servant relationship.

Specification Limits

Main exceptions

Exception Name Reason Resolution
ResourceNotFoundException
Resource Definition is Not Found. Name:[]
[Destination] is not specified. Specify [Destination].
ResourceNotFoundException
Resource Definition is Not Found. Name:[<Global Resource Name>]
The resource definition selected in [Destination] cannot be found. Verify the global resource specified in [Destination]
java.net.UnknownHostException This exception occurs when the PROXY server specified in the global resource cannot be found. Verify the condition of the PROXY server. Or verify [Proxy host] of the global resource specified in the [Destination].
  • API 23.0 or earlier
    org.apache.commons.httpclient.HttpConnection$ConnectionTimeoutException
  • API 26.0 or later
    java.net.SocketTimeoutException
    connect timed out
A time-out has occurred while connecting to Salesforce. Verify the network condition and Salesforce server condition. Or check [Connection timeout(sec)] of the global resource specified in the [Destination].
  • API 23.0 or earlier
    org.apache.commons.httpclient.HttpRecoverableException
    java.net.SocketTimeoutException: Read timed out
  • API 26.0 or later
    java.net.SocketTimeoutException
    Read timed out
A time-out has occurred while waiting for a responce from the server after connecting to Salesforce. Verify the network condition and Salesforce server condition. Or check [Timeout(sec)] of the global resource specified in the [Destination].
jp.co.headsol.salesforce.adapter.exception.SalesforceAdapterIllegalArgumentException Invalid value is set for the property of Salesforce adapter. Check the error message, and verify the settings.
com.sforce.soap.partner.fault.LoginFault Login to Salesforce has failed. Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
com.sforce.soap.partner.fault.UnexpectedErrorFault An unexpected error has occured while processing to Salesforce. Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.

Notes
