Create Search Parameter

Operation Name

Create Search Parameter

Function Overview

This operation is to form a character string to be used in the WHERE clause of SOQL(Salesforce Object Query Language), based on the specified conditional expressions and input data.
This operation only supports to form a SOQL, and does not ensure the validity of the SOQL sentence.

Data Model

The data model of this component is the Table Model type.

Properties

For information about using variables, refer to "variables".
Basic Settings
Item name Required/Optional Use of Variables Description Supplement
Name Required Not Available Enter the name that appears on the script canvas.
Input Data Required Not Available Select the component on the script canvas.
Required Settings
Item name Required/Optional Use of Variables Description Supplement
Destination Required Not Available Select Global Resources.
  • [Add...]:
    Add new global resource.
  • [Edit...]:
    Global resource settings can be edited by [Edit Resource list].

Table Name Required Not Available Select the name of a table in Salesforce.
Syntax type Required Not Available Select the type of sentence to be formed.
  • [IN syntax]:(default)
    Forms parameters for IN clause.
    • Example: Name IN('AAA','BBB','CCC',,,)
  • [Repetition of AND,OR]:
    Forms conditional expressions which repeat the combination of AND and/or OR.
    • Example: (Name = 'AAA') OR (Name = 'BBB') OR (Name = 'CCC'),,,

Length of characters to wrap Required Available Specify the upper limit for the character length of a formed character string.
If the character length exceeds the upper limit, multiple results will be output.
  • The default value is "19500."
  • A number of 20 or greater, up to 19950, can be set. An error occurs if any number outside of this range is set.
  • Due to the API specifications, the maximum SOQL character length is 20,000 characters.
Condition field specification methods Required Not Available Select the specification method of the item name, to be used in the conditions.
  • [Select from list]:(default)
    Select from a select list.
  • [Enter directly]:
    Enter directly in the text field.
  • If [Select from list] is selected, the existence verification of the selected item will be performed during execution.
  • If [Enter directly] is selected, the existence verification of the input item will not be performed during execution.
  • If you want to conditionally specify items which are not on the select list, selecting [Enter Directly] enables you to enter specifications freely.
Property Action
Item name Description Supplement
Display Table Information... You can check the table structure of the object you are operating.
For more information on how to view the table structure, please refer to Display Table Information		 Click [Load All Table Information....] if you would like to check the table structure of other objects.
Load All Table Information... Retrieve all possible table information
After running, you can verify the retrieved information from [Table Information].
IN syntax
Item name Required/Optional Use of Variables Description Supplement
Condition field Optional Available Either select or enter items to be specified as conditions.
  • Only valid when [IN syntax] is selected in the [Syntax Type].
  • This will be a select list when [Select from list] is selected in the [Condition field specification methods].
  • This will be a text field when [Enter directly] is selected in the [Condition field specification methods].
Enclosed in single quote Optional Not Available Specify whether or not to surround, with single quotes, a value given by the input data.
  • [Checked]:(default)
    The value is surrounded by single quotes.
  • [Not Checked]:
    The value is not surrounded by single quotes.
  • Only valid when [IN syntax] is selected in the [Syntax Type].
Escape reserved character Optional Not Available Specify whether or not to escape the reserved characters, within the value given by the input data.
  • [Checked]:(default)
    Escapes the reserved characters.
  • [Not Checked]:
    Does not escape the reserved characters.
  • Only valid when [IN syntax] is selected in the [Syntax Type].
  • Reserved characters are " ' "(single quote) and " \ " (back slash).
    • Example: When escaping "Bob's BBQ", expressed as "Bob\'s BBQ".
Ignore null and empty string values Optional Not Available Specify whether or not to eliminate a value, if it is null or a empty string, given by the input data.
  • [Checked]:
    Eliminates null or a empty string.
  • [Not Checked]:(default)
    Does not eliminates null or a empty string.
    Replaces it with a string "null" instead.
  • Only valid when [IN syntax] is selected in the [Syntax Type].
Repetition of AND,OR
Item name Required/Optional Use of Variables Description Supplement
Conditional expression Optional - Specify a row.

Each row can be manipulated by the below mentioned buttons.
  • [Add]:
    A row is added.
  • [Move Up]:
    The selected row is moved one row upwards.
  • [Move Down]:
    The selected row is moved one row downwards.
  • [Remove]:
    The row is deleted.
  • Only valid when [Repetition of AND,OR] is selected in the [Syntax Type].
  • The [API], configured in the [Conditional expression], is displayed in the Mapper's input schema.
Conditional expression/NOT Optional Not Available Select whether or not to insert a NOT clause.
  • [Blank]:(default)
    Do not insert a NOT clause.
  • [NOT]:
    Insert a NOT clause.

Conditional expression/Left Parenthesis Optional Not Available Select a beginning parenthesis.
  • [Blank]:(default)
    Do not insert a beginning parenthesis.
  • [(]:
    Insert a "(".
  • [((]:
    Insert a "((".
  • [(((]:
    Insert a "(((".

Conditional expression/API Optional Available Either select or enter the item API name as conditions.
  • This will be a select list when [Select from list] is selected in the [Condition field specification methods].
  • This will be a text field when [Enter directly] is selected in the [Condition field specification methods].
Conditional expression/Operator Optional Available Select an operator.
  • [=]:(default)
    Insert a "=".
  • [!=]:
    Insert a "!=".
  • [<]:
    Insert a "<".
  • [<=]:
    insert a "<=".
  • [>]:
    Insert a ">".
  • [>=]:
    Insert a ">=".

Conditional expression/Right Parenthesis Optional Not Available Select a ending parenthesis.
  • [Blank]:(default)
    Do not insert a ending parenthesis.
  • [)]:
    Insert a ")".
  • [))]:
    Insert a "))".
  • [)))]:
    Insert a ")))".

Conditional expression/AND/OR Optional Not Available Select a logical operator which links the rows in the conditional expression.
  • [Blank]:(default)
    Do not insert.
  • [AND]:
    Insert an AND clause.
  • [OR]:
    Insert an OR clause.

Conditional expression/Quotation Optional Not Available Specify whether or not to surround, with single quotes, a value given by the input data.
  • [Checked]:(default)
    The value is surrounded by single quotes.
  • [Not Checked]:
    The value is not surrounded by single quotes.

Conditional expression/Escape Optional Not Available Specify whether or not to escape the reserved characters, within the value given by the input data.
  • [Checked]:(default)
    Escapes the reserved characters.
  • [Not Checked]:
    Does not escape the reserved characters.
  • Reserved characters are " ' "(single quote) and " \ " (back slash).
    • Example: When escaping "Bob's BBQ", expressed as "Bob\'s BBQ".
Repeat logic operation Optional Not Available Select a logical operator to link the conditional expressions formed by each input data.
  • [AND]:(default)
    Link with an AND clause.
  • [OR]:
    Link with an OR clause.
  • Only valid when [Repetition of AND,OR] is selected in the [Syntax Type].
Property Action
Item name Description Supplement
Form Review The character strings, formed based on the specified conditional expressions, can be reviewed.
  • The place expressed as ?{param_(n)} will be assigned a value given by the input schema.
Large Data Processing Settings
Item name Required/Optional Use of Variables Description Supplement
Large Data Processing Required Not Available Select a Large Data Processing Settings.
  • [Use the setting in the script]:(default)
    Apply Large Data Processing Settings settings of script property to adapter.
  • [Disable Large Data Processing]:
    Large Data Processing is not performed.
  • [Enable Large Data Processing]:
    Large Data Processing is performed.

Comment
Item name Required/Optional Use of Variables Description Supplement
Comment Optional Not Available You can write a short description of this adapter.
The description will be reflected in the specifications.

Schema

Input Schema

Varies depending on the [Syntax Type] settings.

Output Schema


<?xml version="1.0" encoding="UTF-8" ?>
<table>
  <row>
    <column>formed_parameter</column>
  </row>
  <row>
    :
  </row>
</table>

Element Name Column Name(Label/API) Description Supplement
row
-
 Repeats as many times as the number of data rows received.
column formed_parameter The formed character string is output.

Reading Schema by Mapper

The schema will be read automatically.

Large Data Processing

Large Data Processing is supported.

Usage on PSP Script

Cannot be used on PSP Script.

Available Component variables

Component Variable Name Description Supplement
input_count The number of input data is stored.
  • The default value is null.
output_count The number of output data is stored.
  • The default value is null.
server_url The end point URL after Login is stored.
  • The default value is null.
session_id The session Id is stored.
  • The default value is null.
message_category In the case that an error occurs, the category of the message code corresponding to the error is stored.
  • The default value is null.
message_code In the case that an error occurs, the code of the message code corresponding to the error is stored.
  • The default value is null.
message_level In the case that an error occurs, the importance of the message code corresponding to the error is stored.
  • The default value is null.
operation_api_exception_code The ExceptionCode of the occured error, in a case of API error, is stored.
  • The default value is null.
  • For any error other than an API Error, the value is not stored.
  • The content to be stored may change according to the version of DataSpider Servista.
operation_error_message If an error occurs, the error message of the occured error is stored.
  • The default value is null.
  • The content to be stored may change according to the version of DataSpider Servista.
operation_error_trace When an error occurs, the trace information of the occured error is stored.
  • The default value is null.
  • The content to be stored may change according to the version of DataSpider Servista.

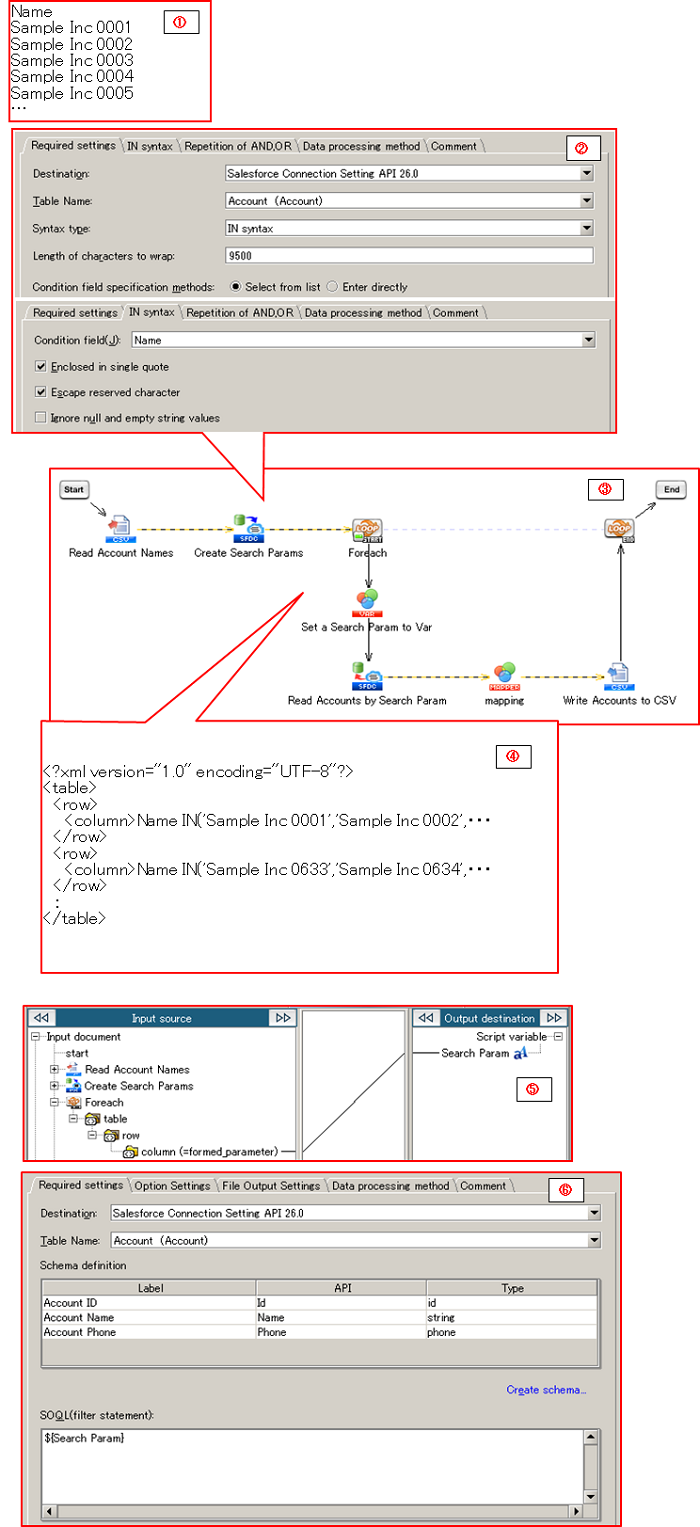

Usage Example of Search Parameter Forming

Forming character strings, which are used as search conditions, by combining multiple values, can be performed. Because one search parameter is formed with the length of the specified [Length of characters to wrap] or smaller, multiple results will be output.

Display Table Information

This display shows the available operations on Salesforce tables as well as field properties of the tables.
Also, the field information can be printed out.



Number in the Image Name Description Supplement
(1) Table Name Select the table whose structure to be shown.
(2) Table Information Display the available operations on the selected table.
(3) Length Display the Number of Digit of item
(4) External ID Display whether or not the object item is set as an external ID.
(5) Createble Display whether or not it can be set a value when adding data.
(6) Updatable Display whether or not it can be set a value when updating data.
(7) Nullable Display whether or not it can be set NULL when adding or updating data.
(8) Default value Display whether or not Salesforce automatically set a default value when adding data.
(9) Reference To Display the referring object name if the item is in reference relationship or master-servant relationship.

Main exceptions

Exception Name Reason Resolution
ResourceNotFoundException
Resource Definition is Not Found. Name:[]		 [Destination] is not specified. Specify [Destination].
ResourceNotFoundException
Resource Definition is Not Found. Name:[<Global Resource Name>]		 The resource definition selected in [Destination] cannot be found. Verify the global resource specified in [Destination]
java.net.UnknownHostException This exception occurs when the PROXY server specified in the global resource cannot be found. Verify the condition of the PROXY server. Or verify [Proxy host] of the global resource specified in the [Destination].
  • API 23.0 or earlier
    org.apache.commons.httpclient.HttpConnection$ConnectionTimeoutException
  • API 26.0 or later
    java.net.SocketTimeoutException
    connect timed out
 A time-out has occurred while connecting to Salesforce. Verify the network condition and Salesforce server condition. Or check [Connection timeout(sec)] of the global resource specified in the [Destination].
  • API 23.0 or earlier
    org.apache.commons.httpclient.HttpRecoverableException
    java.net.SocketTimeoutException: Read timed out
  • API 26.0 or later
    java.net.SocketTimeoutException
    Read timed out
 A time-out has occurred while waiting for a responce from the server after connecting to Salesforce. Verify the network condition and Salesforce server condition. Or check [Timeout(sec)] of the global resource specified in the [Destination].
jp.co.headsol.salesforce.adapter.exception.SalesforceAdapterIllegalArgumentException Invalid value is set for the property of Salesforce adapter. Check the error message, and verify the settings.
com.sforce.soap.partner.fault.LoginFault Login to Salesforce has failed. Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
com.sforce.soap.partner.fault.UnexpectedErrorFault An unexpected error has occured while processing to Salesforce. Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.

Notes
