HULFT Script Trigger

Operation Name

Support Platform

Windows
- Complies with OS which both DataSpiderServer support platform and HULFT support platform match.
UNIX/Linux
- Complies with OS which both DataSpiderServer support platform and HULFT support platform match.

Support Version

HULFT

HULFT8 for Windows Ver.8.1.0 or later
HULFT8 for Linux Ver.8.1.0 or later

Function Overview

HULFT Script trigger is a trigger function to execute scripts, if detects the receiving/sending history of HULFT and meets the conditions.

You can refer to the detected transmission history information by using the "Read History Information".

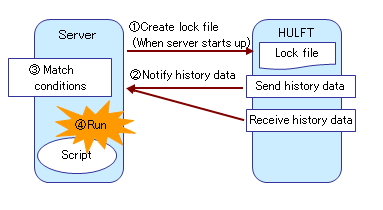

Fire image

Properties

HULFT Script Trigger settings

Item name	Content	Remarks
Trigger name	Enter the name of the trigger.
HULFT environment settings	Select the targeted HULFT.
Watch target	Select the types of the targeted send/receive history. [Send/Receive]:(default) [Send only]: [Receive only]:
Condition range	Select the range to match the conditions. [Matches with all the conditions]:(default) [Matches with any of the conditions]:
Condition settings	Edit the conditions. Each conditions can be operated with the following. [Add]: Adds a condition. [Move up]: Moves up the order of the selecting condition once. [Move down]: Moves down the order of the selecting condition once [Delete]: Deletes a condition.
Condition settings/Item	Select the item of the watching history. [File ID]:(default) [Host name]: [Completion code]: [Detail error code]: [File name]: [Data size]: [Record number]:	[Completion code] is compared by the last three digits of the received history of HULFT.
Condition settings/Conditions	Select the comparing method of the conditions. The available comparing method may vary depending on the item types. [Matches with the following]:(default) [Differs with the following]: [Contains the following]: [Does not contain the following]: [Begins with the following]: [Ends with the following]: [Greater than the following value]: [Smaller than the following value]:	If Condition settings/Item is [File ID], [Host name], [File name](Character string), the following is available. [Matches with the following]: [Differs with the following]: [Contains the following]: [Does not contain the following]: [Begins with the following]: [Ends with the following]: If Condition settings/Item is [Completion code], [Detail error code], [Data size], [Record number](Numeric value), the following is availble. [Matches with the following]: [Differs with the following]: [Greater than the following value]: [Smaller than the following value]:
Condition settings/Value	Enter the comparing values.

Executing contents settings

Item name	Content	Remarks
Trigger owner	Select the owner of the generating trigger.	You can select only the users with administrative rights. (General users cannot select the other than yourselves.)
Executing user name	Select the user that executes the script specified in [Script].
Password	Enter the password corresponding to the users specified in [Executing user name].
Service	Select the services including the scripts to execute in trigger.	Projects administered as service will be shown.
Script	Select the script to execute in trigger.	Scripts specified in [Service] will be shown.

Executing option settings

For details on executing option settings, please refer to "Executing option settings".

Specification Limitation

Transfer history that occurred while DataSpiderServer is running is detected. Transfer history that occurred while DataSpiderServer is down is not detected.

Main exceptions

None.

Notes

In order to use this trigger, HULFT needs to be installed in DataSpiderServer operation OS.

No need to install the library.

Contents set in global resource of [HULFT environment settings] will be available after restarting DataSpiderServer.
If global resource is newly created or updated, HULFT Script trigger will function by restarting the server, which creates lock file as file name ".#hs.lock" into directory set in [HULPATH directory] and enables to inform sent history from HULFT.
