HULFT Transfer App

On the HULFT Transfer App page, you can check the status and view the execution history of receive processing, send processing, and observe processing.

To check the receive status, send status, and observe status, select > SERVICE EVENTS > HULFT Transfer App in the navigation menu.

= Remarks =

For the names and functions of basic UI elements and other items of HULFT Square, refer to the following topic:

HULFT Transfer App

On the HULFT Transfer App page, you can check the status and view the execution history of receive processing, send processing, and observe processing.

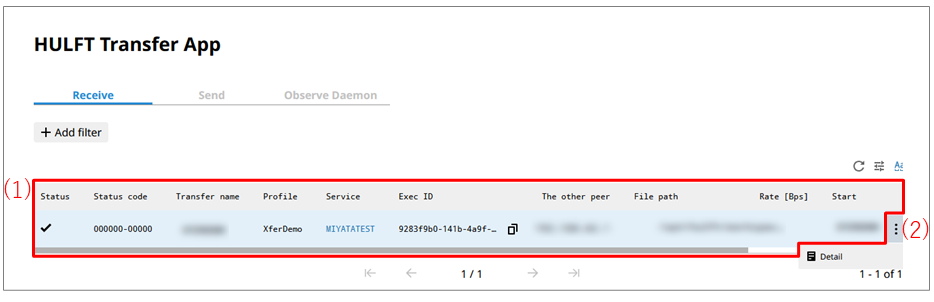

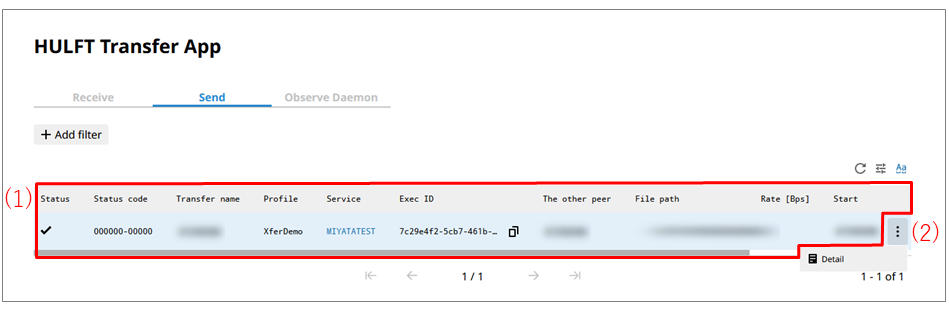

Receive and Send

(1) Event log list

Event logs are displayed in tabular form.

Selecting copies the execution ID.

The status is indicated as follows:

:

This icon indicates that the transfer ended successfully.

:

This icon indicates that the transfer ended in an error.

= Remarks =

The maximum number of log records displayed in the event log list is 10,000. If the number of log records exceeds 10,000, please use a filter to narrow down the results.

(2) Action menu

Select this icon to perform operations for event log records.

Selecting shows the menu of operations below.

Information

Displays detailed information about the selected event log record.

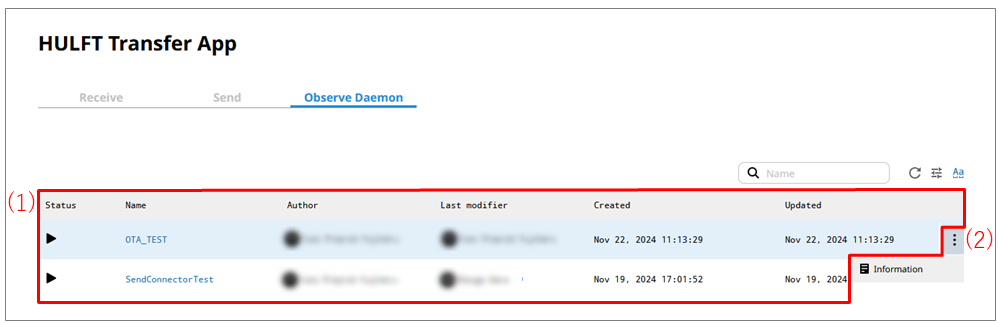

Observe Daemon

(1) Observe daemon list

Observe daemons are displayed in tabular form.

(2) Action menu

Select this icon to perform operations for Observe daemons.

Selecting shows the menu of operations below.

Information

Displays the detailed log about the selected Observe daemon.
