Send Files - Dynamic

Operation name

Function overview

Requests a dynamic Send File for multiple files.

This operation is for HULFT Transfer Application.

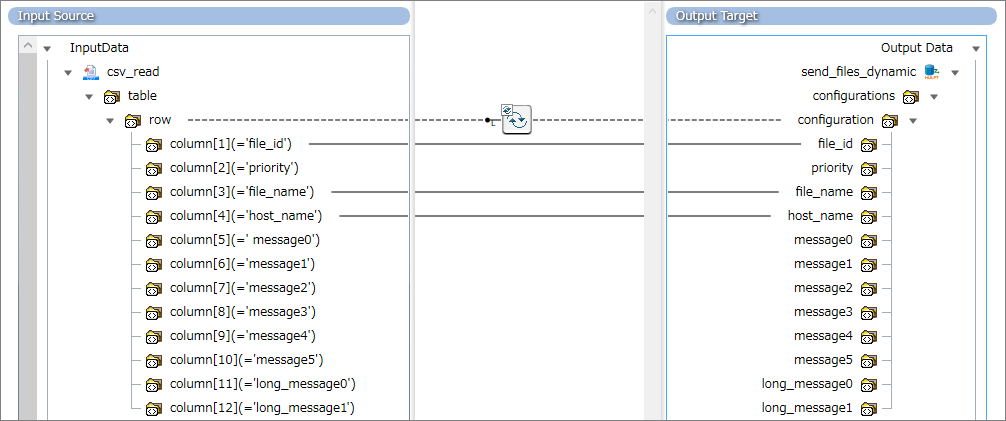

You can use this to pass Send Files settings such as the transfer name to the input schema in the mapping canvas.

Properties

= Remarks =

For details on use of variables, refer to Variables.

Basic settings

Item name	Required/Optional	Use of variables	Description	Remarks
Name	Required	Not available	Enter a name to use on the script canvas.

Comment

Item name	Required/Optional	Use of variables	Description	Remarks
Comment	Optional	Not available	You can write a short description of this connector.

Schemas

Input schema

<?xml version="1.0"?>
<send_files>
  <send_file>
    <file_id>transfer name</file_id>
    <priority>priority</priority>
    <file_name>file name</file_name>
    <host_name>host name</host_name>
    <message0>message 0</message0>
    <message1>message 1</message1>
    <message2>message 2</message2>
    <message3>message 3</message3>
    <message4>message 4</message4>
    <message5>message 5</message5>
    <long_message0>long message 0</long_message0>
    <long_message1>long message 1</long_message1>
  </send_file>
</send_files>

Element name	Required/Optional	Description	Remarks
send_files	-
send_file	-	Repeats as many times as Send File was executed.
file_id	Required	Enter the transfer name of the file to be sent.	For details about each parameter, refer to "Send File command" in HULFT8 (https://www.hulft.com/help/en-us/HULFT-V8/UX-OPE/Content/HULFT_OPE/HULFTOpeCmd/SndFCmd.htm).
priority	Optional	Enter the priority for the file to be sent.
file_name	Optional	Enter the name of the file to be sent.
host_name	Optional	Enter the name of the remote host to which the file is to be sent.
message0	Optional	Input a message to be sent to the receiving host.
message2	Optional
message3	Optional
message4	Optional
message5	Optional
long_message0	Optional	Input a long message to be sent to the receiving host.
long_message1	Optional	Input a long message to be sent to the receiving host.

Output schema

<?xml version="1.0"?>
<send_files>
  <send_file>
    <file_id>transfer name</file_id>
    <execution_id>execution ID</execution_id>
  </send_file>
</send_files>

Element name	Description	Remarks
send_files
send_file	Appears once for every time Send File is executed.
file_id	Outputs the transfer name of the file that was sent.
execution_id	Outputs the unique identifier that is issued for each execution of the send processing.	Outputs null if the execution of Send File fails.

Transaction

Transaction isn't supported.

Parallel Stream Processing

PSP isn't supported.

Available component variables

Component variable name	Description	Remarks
count	The number of times Send File was executed successfully is stored.	The default value is null.
message_category	When an error occurs, the category of the message code corresponding to the error is stored.	The default value is null.
message_code	When an error occurs, the code of the message code corresponding to the error is stored.	The default value is null.
message_level	When an error occurs, the severity of the message code corresponding to the error is stored.	The default value is null.
error_type	When an error occurs, the error type is stored.	The default value is null. The format of the error type is as shown below. Example: java.io.FileNotFoundException
error_message	When an error occurs, the error message is stored.	The default value is null.
error_trace	When an error occurs, the trace information for the error is stored.	The default value is null.

Message codes, exception messages, and limitations

Connector	Message code	Exception message	Limitations
Messages and limitations of the HULFT connector
