New creation

The procedure for creating new record of Transfer Group Information is as follows:

1. Use either of the following methods:

   • Clicking Transfer Group Information in the Management Information section of the Home screen

   • Clicking System Configuration > Transfer Group Information

   The Transfer Group Information List screen is displayed.



   Screen 4.16 Transfer Group Information List Screen

2. Use either of the following methods:

   • Clicking New Creation on the toolbar

   • Entering the transfer group ID for the new record that you intend to register, and clicking OK

   The Transfer Group Information Update (New Creation) screen or the Transfer Group Information Update screen for the transfer group ID that you intend to register appears.

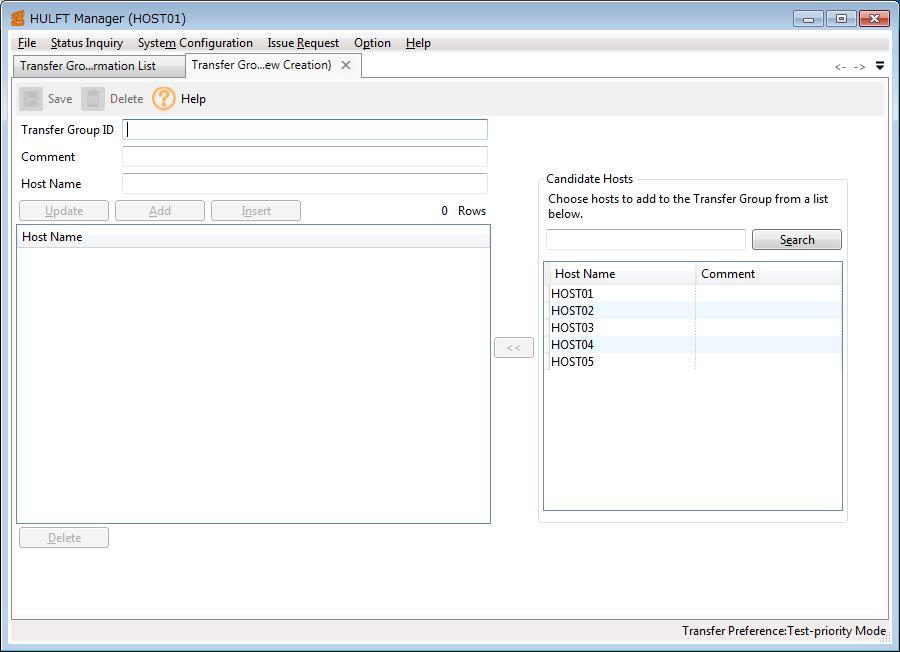

   Screen 4.17 Transfer Group Information Update (New Creation) Screen

3. Enter the required information in each field.

   = Remarks =

   When you right-click a host name in the Candidate Hosts list and select New Creation on the pop-up menu, the Host Information Update (New Creation) screen is displayed.

   For details on creating a new record of the Host Information, refer to New creation.

4. After entering the information, click Save on the toolbar.

   A message is displayed.

5. Click OK.

   The record of the Transfer Group Information is registered as specified, and the Transfer Group Information List screen is displayed.

For details of each field, refer to the following:

• When connecting to HULFT8 for Mainframe, refer to List of Transfer Group Information fields.

• When connecting to HULFT8 for UNIX/Linux, refer to List of Transfer Group Information fields.

• When connecting to HULFT8 for Windows, refer to List of Transfer Group Information fields.

• When connecting to HULFT8 for IBMi, refer to List of Transfer Group Information fields.

For details on the Transfer Group Information List screen and the Transfer Group Information Update screen, refer to Transfer Group Information List and Update.
