Search on the list screens

Search on the status inquiry list screens

1. Display a relevant status inquiry list screen.

   For details, refer to Display of the list screens.

2. Click Search on the toolbar.

   Clicking this button displays the Search section.

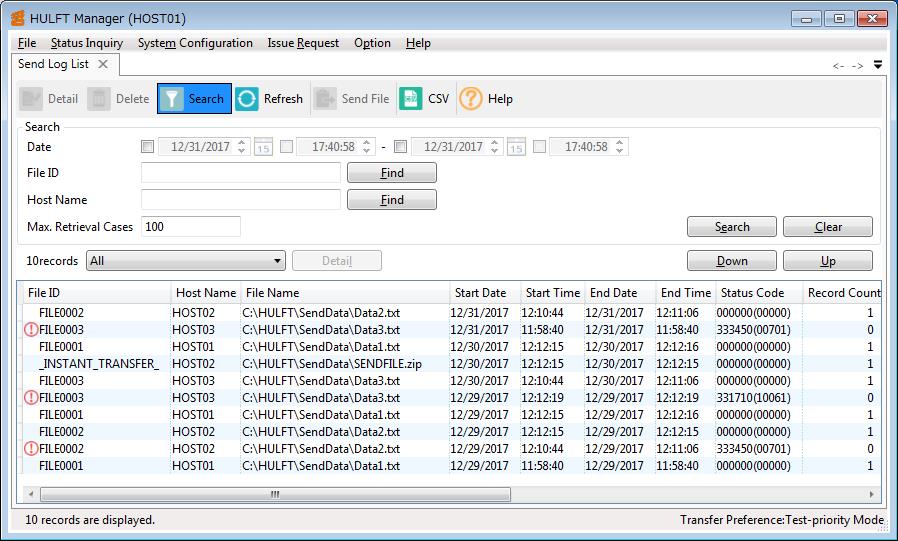

   Screen 6.2 Search section (status inquiry list screen)

3. Specify search conditions.

   Date

   Select the check box when you specify the starting date and time and the ending date and time of the search.

   Date:

   Start date and end date of the search (YYYY/MM/DD) in the range

   You can select date by clicking the Calendar button.

   Time:

   Start time and end time of the search (HH:MM:SS) in the range

   = Remarks =

   The date format varies depending on Date Format that is specified in the System Environment Settings for HULFT Manager.

   For details on the Date Format, refer to System Environment Settings screen (Others tab).

   File ID

   Specify the file ID to search for.

   When you click Find, the Select File ID dialog box is displayed. On the dialog box, you can specify the conditions of search for the file ID.

   This field is displayed only on the Send Log List screen or on the Receive Log List screen.

   Host Name

   Specify the host name to be searched.

   When you click Find, the Select Host Name dialog box is displayed. On the dialog box, you can specify the conditions of search for the host name.

   This field is displayed only on the Send Log List screen or on the Receive Log List screen.

   Service Name

   Specify the service name to search for.

   This field is displayed only on the Request Status Confirmation screen.

   Schedule ID

   Specify the schedule ID to search for.

   This field is displayed only on the Schedule Log List screen.

   When you click Find, the Schedule ID Selection dialog box is displayed. On the dialog box, you can specify the conditions of search for the schedule ID.

   Type

   Specify the transfer status to search for.

   This field is displayed only on the Transfer Status List screen.

   Max. Retrieval Cases

   Specify the maximum number of search results to be displayed.

   Specify a value for Max. Retrieval Cases within the range of "1" to "999".

   Note

   If the number of management information IDs that fulfill the Search Condition exceeds the value of Max. Retrieval Cases, the data that corresponds to or comes after the Max. Retrieval Cases is not displayed.

   In that case, increase the value of Max. Retrieval Cases or change the Search Condition and search for the management information ID or the host name again.

4. Click Search.

   HULFT searches according to the specified conditions.

Search on the system management information list screens

1. Display a relevant system management information list screen.

   For details, refer to Display of the list screens.

2. Click Search on the toolbar.

   Clicking this button displays the Search section.

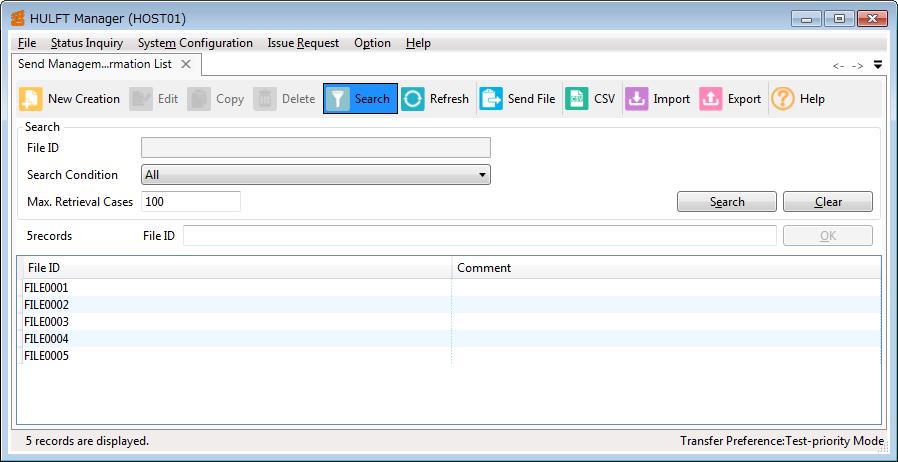

   Screen 6.3 Search section (system management information list screen)

3. Specify search conditions.

   Management information ID

   Specify the management information ID to search for.

   If you select an option other than "All" for Search Condition, you can specify the management information ID.

   Search Condition

   Select condition for searching from the following 4 options:

   1. All beginning with the above file ID

      The option allows you to search for all the management information IDs that begin with the character you specified in the management information ID field.

   2. With the above ID or later (alphabetically)

      This option allows you to search the data that corresponds to or comes after the specified management information ID in alphabetical order.

   3. Equals

      This option allows you to search for the management information ID that matches the characters you specified in the management information ID field.

   4. All

      This option allows you to search the data that is arranged in ascending order.

   Note

   If the number of management information IDs that fulfill the Search Condition in a., b., or d. exceeds the value of Max. Retrieval Cases, the data that comes after the Max. Retrieval Cases is not displayed.

   In that case, increase the value of Max. Retrieval Cases or change the Search Condition and search for the management information ID or the host name again.

   Max. Retrieval Cases

   Specify the maximum number of search results to be displayed.

   Specify a value for Max. Retrieval Cases within the range of "1" to "999".

4. Click the Search.

   HULFT searches according to the specified conditions.
