Display of the list screens

You can display the following list screens from the HULFT Manager Management Console:

  • Status inquiry list screens

  • System management information list screens

Status inquiry list screens

  1. From the Status Inquiry menu, select a field that you want to check.

    The list screen of log records or statuses is displayed.

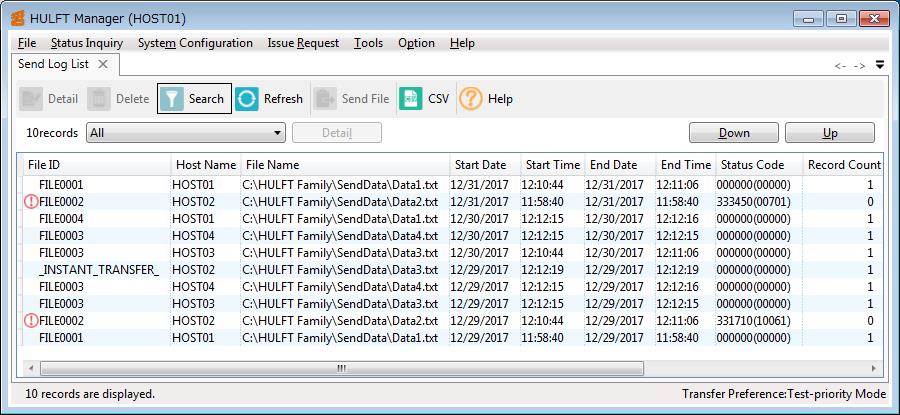

    Screen 4.4 Status Inquiry List Screen

= Remarks =

You can also display the status inquiry list screens by clicking a field that you want to check in the Logs section of the Home screen.

You cannot use the above operation to display the following screens:

  • Transfer Status List screen

  • Resend Queue Status List screen

  • Today's Schedule screen

System management information list screens

  1. Use either of the following methods to display the screen:

    • Clicking the field that you want to display in the Management Information section of the Home screen

    • Selecting the field that you want to display from the System Configuration menu

    The relevant system management information list screen is displayed.

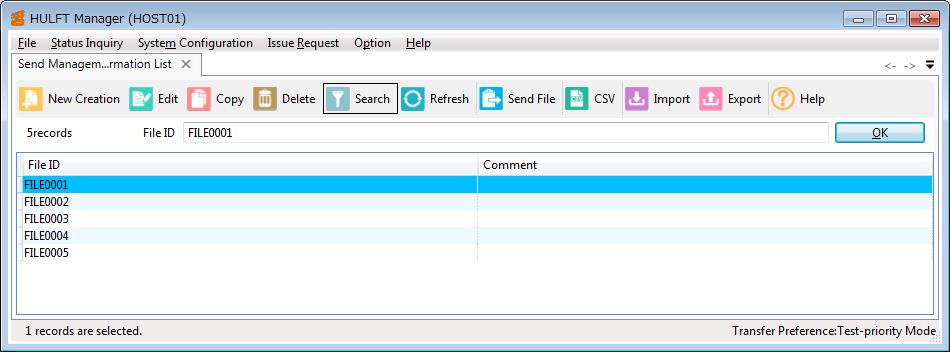

    Screen 4.5 System Management Information List Screen
