Issuance of Send Request

The following methods are available to issue a Send Request request:

  • Issuing a Send Request request from the Issue Request menu

  • Issuing a Send Request request from the Receive Management Information List screen or the Receive Log List screen

Issuing a Send Request request from the Issue Request menu

  1. Click Issue Request > Send Request > Send Request.

    The Send Request dialog box is displayed.

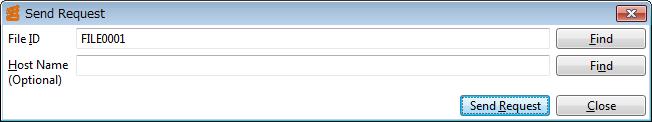

    Screen 4.110 Send Request Dialog Box

  2. Specify the file ID of the file to be sent and the host name to which the request is issued.

    When you click Find for File ID, the Select File ID dialog box is displayed. On the dialog box, you can select the file ID.

    When you click Find for Host Name, the Select Host Name dialog box is displayed. On the dialog box, you can select the host name.

    = Remarks =

    Host Name is optional. When you default the host name, HULFT acquires the transfer group ID registered in the specified file ID (the relevant file ID in the Receive Management Information) and issues the request to all the hosts registered in the transfer group ID.

  3. Click Send Request to issue the Send Request request.

For details on the Send Request dialog box, refer to Send Request dialog box.



Issuing a Send Request request from the Receive Management Information List screen or the Receive Log List screen

There are two methods to issue the Send Request on the Receive Management Information List screen or the Receive Log List screen.

  • Issuing a Send Request request using Send Request on the toolbar or Send Request from the pop-up menu

  • Issuing a Send Request request using the shortcut key

Issuing a Send Request request using Send Request on the toolbar or Send Request from the pop-up menu

  1. Display the Receive Management Information List screen or the Receive Log List screen.

    For details, refer to Display of the list screens.

  2. Use either of the following methods:

    • Issuing a Send Request request using Send Request

      Select the file ID to which you intend to issue the Send Request, and click Send Request on the toolbar.

    • Issuing a Send Request request using Send Request from the pop-up menu

      Right-click the file ID to which you intend to issue the Send Request, and select Send Request on the pop-up menu.

    The Send Request dialog box on which the selected file ID is set is displayed.

    = Remarks =

    • On the Receive Log List screen, the Send Request dialog box on which the file ID and the host name are set is displayed.

    • Host Name is optional. When you default the host name, HULFT acquires the transfer group ID registered in the specified file ID (the relevant file ID in the Receive Management Information) and issues the request to all the hosts registered in the transfer group ID.

  3. Specify the host name to which the request is issued.

    When you click Find for Host Name, the Select Host Name dialog box is displayed.

  4. Click Send Request to issue the Send Request request.



Issuing a Send Request request using the shortcut key

  1. Display the Receive Management Information List screen or the Receive Log List screen.

    For details, refer to Display of the list screens.

  2. Click on the file ID to which you intend to issue the Send Request.

  3. Pressing the "Ctrl+U" issues the Send Request to the selected ID.

Note

In the Send Request on the HULFT Manager Management Console, the Synchronous Transfer and the specification of the message sending cannot be specified.

For details on the Receive Management Information List screen, refer to Receive Management Information List screen.

For details on the Receive Log List screen, refer to Receive Log List screen.
