[Variable Mapper]Single-line String Constant

Logic Name

Single-line String Constant

Outputs single-line string constant.

Location	Type
Logic output	String

Refer to "Logic Specifications" for details.

Category	Property	Description
Required	Single-line string	The specified string is output directly.
Comment	Comment	The comment will also be output to the specifications.It does not affect the conversion process.

A component variable cannot be used for [Single-line string]. Assign a component variable value to a script variable by using the Mapper in advance, and use the script variable.

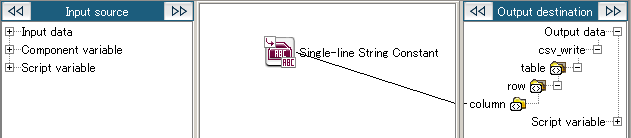

The logic outputs the value "Sample Data" which is set to [Single-line string].

Property	Setting
Single-line string	SampleValue

SampleValue
