Em-size to Normal-width

Logic Name

Em-size to Normal-width

Function

Converts em-size character in the input string to normal-width character.

Data Types

Location Type
The first input handler String
Logic output String
lightbulbRefer to "Logic Specifications" for details.

Properties

Category Property Description
Required Convert katakana Specify the method of converting the em-size katakana into normal-width.
Required Convert alphabet Specify the method of converting the em-size alphabet into normal-width.
Required Convert number Specify the method of converting the em-size number into normal-width.
Required Convert sign Specify the method of converting the em-size sign into normal-width.
Option of sign conversion Convert middle point Specify whether to convert em-size middle point (E)into normal-width middle point () .
Comment Comment The comment will also be output to the specifications.It does not affect the conversion process.

Notes

Logic Sample

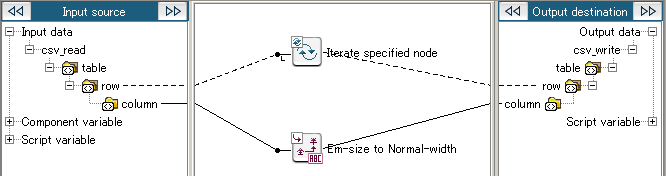

Mapping Definition

Logic Settings and Processing Result

Convert em-size kana, alphabets, numbers and signs into normal-width.
An em-size middle point will not be converted as a normal-width character.
Property Settings
Property Setting
Convert katakana Checked
Convert alphabet Checked
Convert number Checked
Convert sign Checked
Convert middle point Not Checked
Input Data
ƒTƒ“ƒvƒ‹Eƒf[ƒ^
‚P‚Q‚R‚S‚T‚U‚V‚W‚X‚O
ƒTƒ“ƒvƒ‹‚`‚a‚b‚P‚Q‚R‚S‚TIH
Result Data
»έΜίفEΓή°ΐ
1234567890
»έΜίΩABC12345!?
