Logic Name



Returns the sum of the input nodes.

Data Types

Location Type
The first input handler Node set
Logic output Numeric
lightbulbRefer to "Logic Specifications" for details.


Category Property Description
Precision Specify precision Select whether to directly specify the decimal places of precision in decimal type calculation.
Precision Specified digits Directly specifies the number of decimal places in decimal type precision.
Precision Rounding Specify the method of rounding.
Comment Comment The comment will also be output to the specifications.It does not affect the conversion process.


Logic Sample

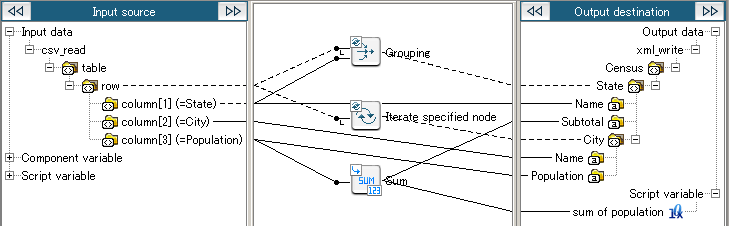

Mapping Definition

Logic Settings and Processing Result

The logic groups nodes based on the value of "State", then calculates the sum of population, and output data of prefectures and cities to XML file.
Property Settings
Property Setting
Specify precision Not Checked
Specified digits
Rounding Round to 0.
Input Data
Chiyoda ku,Tokyo,43124
Chuo ku,Tokyo,103194
Minato ku,Tokyo,196167
Shinjuku ku,Tokyo,307527
Bunkyo ku,Tokyo,192736
Taito ku,Tokyo,166702
Shizuoka city,Shizuoka,712179
Hamamatsu city,Shizuoka,807073
Numazu city,Shizuoka,207586
Atami city,Shizuoka,40949
Mishima city,Shizuoka,112181
Output Data
