Input Node Number

Logic Name

Input Node Number

Function

Assigns numbers based on the position of the nodes in the input data.

Data Types

Location Type
Logic output Numeric
lightbulbRefer to "Logic Specifications" for details.

Properties

Category Property Description
Comment Comment The comment will also be output to the specifications.It does not affect the conversion process.

Logic Sample

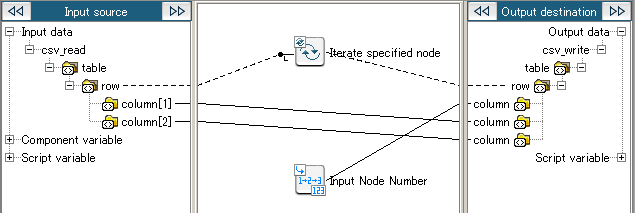

Mapping Definition

Logic Settings and Processing Result

The logic outputs input node number.
Property Settings
Property Setting
None
Input Data
sampel1,test1
sample2,test2
sample3,test3
Output Data
1,sampel1,test1
2,sample2,test2
3,sample3,test3
