End with

Logic Name

End with

Function

Determines whether the input string ends with the specified string.

Data Types

Location Type
The first input handler String
Logic output Boolean
lightbulbRefer to "Logic Specifications" for details.

Properties

Category Property Description
Required String for determination Specify the string used for determination.
Null processing Null option Specify how to handle the input if it contains null.
Comment Comment The comment will also be output to the specifications.It does not affect the conversion process.

Null option

Option Description
Return false in case of null Outputs false if value of the input handler is null and continues with the process.
Convert null into empty string Converts null to empty string and continue with the process.
Throw exception when unable to determine/calculate/process Throws exception (CalculationException) when unable to determine/calculate/process.
Output null if any input is null Outputs null if the value of any input handler is null.
lightbulbRefer to "Logic Specifications" for details.

Logic Sample

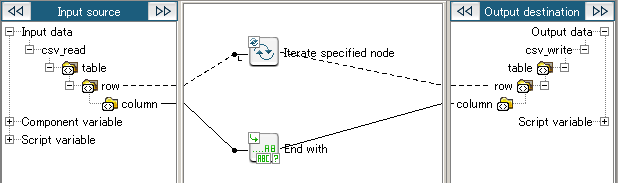

Mapping Definition

Logic Settings and Processing Result

If the input string ends with string "Inc" it returns "true". Otherwise it returns "false".
Property Settings
Property Setting
String for determination Inc
Input Data
Sample Data Inc.
Sample Data Co.,Ltd.
Sample Data & Co.
Result Data
true
false
false
