[Document Mapper]Copy Input Element

Logic Name

Copy Input Element

Function

Copies the input element.

Data Types

Location	Type
The first input handler	Node set
Logic output	Node set

Refer to "Logic Specifications" for details.

Properties

Category	Property	Description
Comment	Comment	The comment will also be output to the specifications.It does not affect the conversion process.

Specification Limits

This logic cannot be applied if the input/output schema is table model type.

Logic Sample

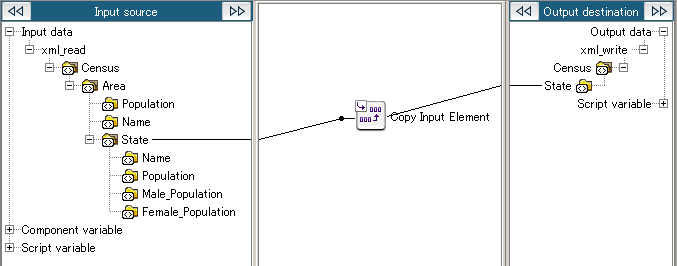

Mapping Definition

Logic Settings and Processing Result

The node of the input data is output as follows.

Property Settings

Property	Setting
None

Input Data

<?xml version="1.0" encoding="Shift_JIS"?>
<Census>
  <Area population="4537" name="Shinetsu">
    <State name="Niigata" population="2378">
      <male>1149</male>
      <female>1229</female>
    </State>
    <State name="Nagano" population="2159">
      <male>1049</male>
      <female>1110</female>
    </State>
  </Area>
  <Area population="3068" Name="Hokuriku">
    <State name="Toyama" population="1095">
      <male>528</male>
      <female>568</female>
    </State>
    <State name="Ishikawa" population="1165">
      <male>562</male>
      <female>603</female>
    </State>
    <State name="Fukui" population="808">
      <male>390</male>
      <female>418</female>
    </State>
  </Area>
</Census>

Output Data

<?xml version="1.0" encoding="UTF-8"?>
<Census>
  <ByState>
    <State name="Niigata" population="2378">
      <male>1149</male>
      <female>1229</female>
    </State>
    <State name="Nagano" population="2159">
      <male>1049</male>
      <female>1110</female>
    </State>
    <State name="Toyama" population="1095">
      <male>528</male>
      <female>568</female>
    </State>
    <State name="Ishikawa" population="1165">
      <male>562</male>
      <female>603</female>
    </State>
    <State name="Fukui" population="808">
      <male>390</male>
      <female>418</female>
    </State>
  </ByState>
</Census>
