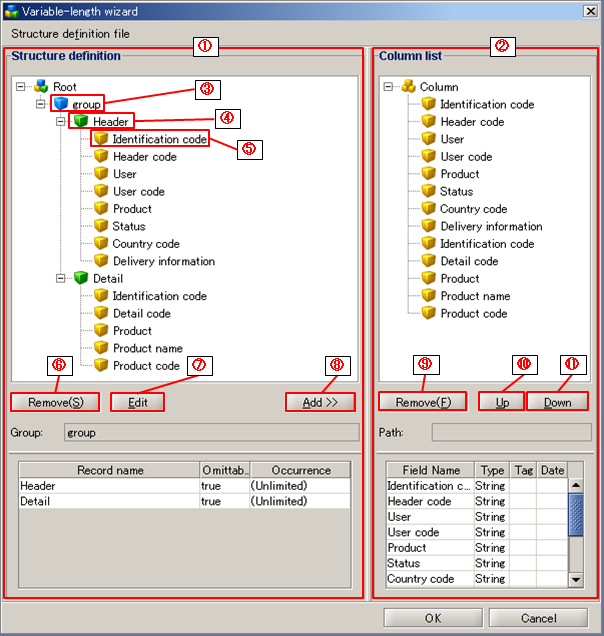

Screen Element Number | Name | Description | Remarks |
---|---|---|---|
(1) | Structure definition | Define structures of a variable length file to read. This adapter reads a variable length file by following the definition. |
|
(2) | Column list | Define structures of the output data. Data only defined in the structure definition is read. |
|
(3) | Group |
|
|
(4) | Record |
|
|
(5) | Field |
|
|
(6) | Remove(Structure definition) | Delete the element selected in the tree of the [Structure Definition]. |
|
(7) | Edit | Show the definition dialog of the element selected in the tree of the [Structure definition]. |
|
(8) | Add | Add an element to the [Column list] selected in the tree of the [Structure definition]. | |
(9) | Remove(Column list) | Delete the element selected in the tree of the [Column list]. |
|
(10) | Up | Move up the order of the element selected in the tree of the [Column list]. | |
(11) | Down | Move down the order of the element selected in the tree of the [Column list]. |
Item name | Required / Optional | Description | Remarks |
---|---|---|---|
Group name | Required | Enter a name of the group. | |
Occurrence | Optional | Enter occurrence of the group. |
|
Omittable | Optional | Select whether to omit the [Occurrence].
|
|
Unlimited | Optional | Select whether to set unlimited to the [Occurrence].
|
Item name | Required / Optional | Description | Remarks |
---|---|---|---|
Record name | Required | Enter a name of the record. | |
Occurrence | Optional | Enter occurrence of the record. |
|
Omittable | Optional | Select whether to omit the [Occurrence].
|
|
Unlimited | Optional | Select whether to set unlimited to the [Occurrence].
|
Item name | Required / Optional | Description | Remarks | ||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Field name | Required | Enter a name of the field. | |||||||||||||||||||||||||||||||||||||
Field type | Required | Select a type of the field. Available characters are as follows.
|
|||||||||||||||||||||||||||||||||||||
Tag | Optional | Enter tag (record identification code). |
|
||||||||||||||||||||||||||||||||||||
Date format | Optional | Select or enter a date format.
|
|
Columns | Type | Character that can be specified | Required / Optional | Remarks |
---|---|---|---|---|
1 | Prefix | GROUP or G | Required |
|
2 | Group name | Any string | Required | |
3 | Occurrence | Number of 0 to 2147483647 | Optional |
|
4 | Required | true or false | Optional |
|
|
=> |
|
Columns | Type | Character that can be specified | Required / Optional | Remarks |
---|---|---|---|---|
1 | Prefix | RECORD or R | Required |
|
2 | Record name | Any string | Required | |
3 | Occurrence | Number of 0 to 2147483647 | Optional |
|
4 | Required | true or false | Optional |
|
|
=> |
|
Columns | Type | Character that can be specified | Required / Optional | Remarks | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Prefix | FIELD or F | Required |
|
||||||||||
2 | Field name | Any string | Required | |||||||||||
3 | Type | Each type of character that can be specified is as follows.
|
Required |
|
||||||||||
4 | Type setting | Tag or date format | Optional |
|
||||||||||
5 | Output | true or false | Optional |
|
|
=> |
|
|

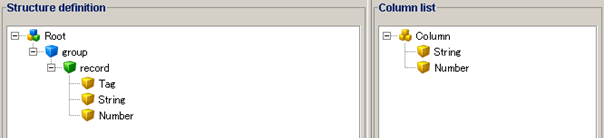

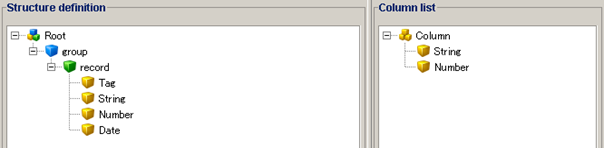

<= field output to column list <= field output to column list |
|
<= field output to column list <= field output to column list |
GROUP,A group,,false RECORD,A record,,false |
|
<= A record becomes the child record of group B. |
