Bulk Get Data(Query)

Operation Name

Bulk Get Data(Query)

Function Overview

This operation performs a Query operation with Bulk API and creates CSV file.
Job Creation, batch creation, batch result obtainment, and job closing will be done subsequently as one operation.

For details on the processes to be executed, please refer to the "Process flow".

For the API specifications used in this operation, please refer to the version of the API document, selected in the global resource, in the below mentioned link.

Properties

For information about using variables, refer to "variables".
Basic Settings
Item name Required/Optional Use of Variables Description Supplement
Name Required Not Available Enter the name that appears on the script canvas.
Required Settings
Item name Required/Optional Use of Variables Description Supplement
Destination Required Not Available Select Global Resources.
  • [Add...]:
    Add new global resource.
  • [Edit...]:
    Global resource settings can be edited by [Edit Resource list].
  • A global resource on API 29.0 or later versions can be specified.
SOQL Required Available Enter SOQL.
  • Bulk API query does not support the following SOQL.
    • COUNT
    • ROLLUP
    • SUM
    • GROUP BY CUBE
    • OFFSET
    • Nested SOQL queries
    • Relationship fields
    • Base64 fields
File Required Available Input the file path of the CSV format.
By pressing the [Browse] button, an file chooser will be activated and a file can be chosen.
Encoding Required Available Select or input write file encode.

When input, you can specify encode supported in Java SE Runtime Environment.
Refer to "Supported Encodings"(http://docs.oracle.com/javase/7/docs/technotes/guides/intl/encoding.doc.html) for details.
  • Default value is "UTF-8".
New line code Required Not available Select a new line code.
  • [AUTO]:(default)
    As the new line code of DataSpiderServer running OS.
    • Windows:
      CR+LF
    • UNIX:
      LF
  • [CR]:
  • [LF]:
  • [CR+LF]:

Property Action
Item name Description Supplement
Preview Display the contents of the file specified by [File] by activating a previewer.
  • This becomes invalid if the specified file does not exist or a variable is set for [File].
  • The contents is displayed in the character encoding specified by [Encoding].
  • The contents of the file cannot be edited.
  • The maximum file size to be displayed by the previewer is 1MB. If the file size exceeds 1MB, the contents up to 1MB from the beginning of the file will be displayed.
Bulk Operation Settings
Item name Required/Optional Use of Variables Description Supplement
Concurrency mode Required Not Available Select the job's simultaneous execution mode.
  • [Parallel]:(default)
    The job is created with the parallel processing mode.
  • [Serial]:
    The job is created with the sequential processing mode.
  • If parallel processing is performed, database rivalry can occur. If the competition is large, readings can fail.
    If the consecutive mode is used, the batches will be reliably processed one after another. However, with this option, the reading processing time can increase greatly.
Job status after execution Required Not Available Select whether or not a created job will be closed, after execution.
  • [Close]:(default)
    The job will be closed after execution.
  • [Do not close]:
    The job will not be closed after execution. It will remain open.

Obtain the batch results after waiting until the task is completed Required Not Available Select whether or not to monitor the situation until the created batches are finished, and to obtain batch results.
  • [Checked]:(default)
    Obtain batch results.
  • [Not Checked]:
    Do not obtain batch results.

Wait Time before the start of monitoring (sec) Optional Available Input the waiting time, until the beginning of the batch state monitoring, in seconds.
  • The default value is "3".
  • Will be valid only when [Obtain the batch results after waiting until the task is completed] is checked.
  • A value of 3 or greater and 10800 or smaller may be specified. If a value is specified outside of this range, an error will occur.
Batch monitoring intervals (sec) Optional Available Input the intervals, which determine whether or not the batch results have been obtained and the process has completed, in seconds.
  • The default value is "10".
  • Will be valid only when [Obtain the batch results after waiting until the task is completed] is checked.
  • A value of 10 or greater and 600 or smaller can be specified. If a value is specified outside of this range, and error will occur.
Transaction
Item name Required/Optional Use of Variables Description Supplement
Enable transaction Required Not Available Choose whether to perform transaction processing.
  • [Checked]:
    Perform transaction processing.
  • [Not Checked]:(default)
    Transaction processing is not performed.
Refer "File type adapter transaction" for more information.
Comment
Item name Required/Optional Use of Variables Description Supplement
Comment Optional Not Available You can write a short description of this adapter.
The description will be reflected in the specifications.

Schema

Input Schema

None.

Output Schema

None.

Transaction

Transactions is supported.

Transaction is enabled only when [Enable transaction] in [Transaction] is checked..

Usage on PSP Script

Cannot be used on PSP Script.

Available Component variables

Component Variable Name Description Supplement
job_id The IDs of the jobs created are stored.
  • The default value is null.
batch_id The IDs of the batches created are stored.
  • The default value is null.
number_records_processed The number of records that have completed the process, in the batch, is stored.
  • The default value is null.
number_records_failed Stores the number of records that were not successfully processed by the batch.
  • The default value is null.
created_date Start time of the batch is stored.
  • The default value is null.
state The batch state is stored.
  • The default value is null.
state_message The batch state message is stored.
  • The default value is null.
apex_processing_time Stores the processing time (ms) of triggers and other processes related to the batch.
  • The default value is null.
api_active_processing_time Stores the processing time (ms) of the batch.
Does not include time waiting for a queue or for serialization / parallelization.
  • The default value is null.
total_processing_time Stores the total processing time (ms) of the batch.
Does not include time waiting for a queue.
  • The default value is null.
system_modstamp The system time of the batch is stored.
  • The default value is null.
queryResultCount Number of files created on the server is stored.
  • The default value is null.
server_url The end point URL after Login is stored.
  • The default value is null.
session_id The session Id is stored.
  • The default value is null.
message_category In the case that an error occurs, the category of the message code corresponding to the error is stored.
  • The default value is null.
message_code In the case that an error occurs, the code of the message code corresponding to the error is stored.
  • The default value is null.
message_level In the case that an error occurs, the importance of the message code corresponding to the error is stored.
  • The default value is null.
operation_api_exception_code The ExceptionCode of the occured error, in a case of API error, is stored.
  • The default value is null.
  • For any error other than an API Error, the value is not stored.
  • The content to be stored may change according to the version of DataSpider Servista.
operation_error_message If an error occurs, the error message of the occured error is stored.
  • The default value is null.
  • The content to be stored may change according to the version of DataSpider Servista.
operation_error_trace When an error occurs, the trace information of the occured error is stored.
  • The default value is null.
  • The content to be stored may change according to the version of DataSpider Servista.

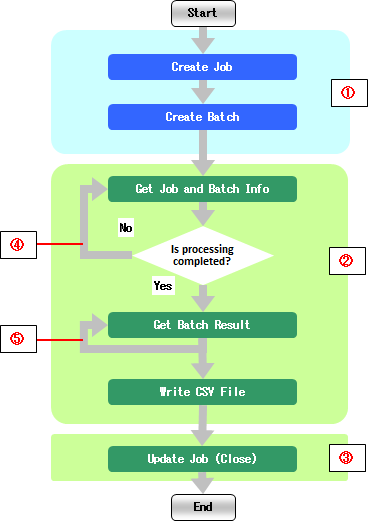

Process Flow

Jobs and batches, required for data reading, are created and managed.
Job creation and batch creation will be performed definitely.
Whether or not to execute job/batch information obtainment, batch result obtainment, and job update (close) can be selected by the property setting value.

In the Query job, split files of up to 1 GB is created on server-side.
This component downloads each split file contents and outputs as a single file.



Number in the Image Name Description Supplement
(1) Required Processes These are mandatory processes that will take place regardless of the property settings.
(2) Selection of Whether or Not to Execute the Batch Result Obtainment and Job/Batch Information Obtainment Whether or not to execute can be selected by the value of the [Obtain the batch results after waiting until the task is completed] in the [Bulk Operation Settings] tab.
  • If the [Obtain the batch results after waiting until the task is completed] is checked, the process will take place.
(3) Selection of whether or not to execute the Job Update (Close) Whether or not to execute can be selected by the value of the [Job status after execution] in the [Bulk Operation Settings] tab.
  • If "Close" is selected for the [Job status after execution], the process will take place.
(4) Repetition of the Job/Batch Result Obtainment Until the process is completed ,the job/batch information obtainment will repeat at intervals of the [Batch monitoring intervals (sec)], of the [Bulk Operation Settings] tab.
(5) Repetition of the Batch Result Obtainment Batch results will be obtained repeatedly, the same amount of times as the number of query result files.

Specification Limits

Main exceptions

Exception Name Reason Resolution
ResourceNotFoundException
Resource Definition is Not Found. Name:[]		 [Destination] is not specified. Specify [Destination].
ResourceNotFoundException
Resource Definition is Not Found. Name:[<Global Resource Name>]		 The resource definition selected in [Destination] cannot be found. Verify the global resource specified in [Destination]
java.net.UnknownHostException This exception occurs when the PROXY server specified in the global resource cannot be found. Verify the condition of the PROXY server. Or verify [Proxy Host] of the global resource specified in the [Destination].
java.net.SocketTimeoutException
connect timed out		 A time-out has occurred while connecting to Salesforce. Verify the network condition and Salesforce server condition. Or check [Connection timeout(sec)] of the global resource specified in the [Destination].
java.net.SocketTimeoutException
Read timed out		 A time-out has occurred while waiting for a responce from the server after connecting to Salesforce. Verify the network condition and Salesforce server condition. Or check [Timeout(sec)] of the global resource specified in the [Destination].
jp.co.headsol.salesforce.adapter.exception.SalesforceAdapterIllegalArgumentException Invalid value is set for the property of SalesforceBulk adapter. Check the error message, and verify the settings.
com.sforce.soap.partner.fault.LoginFault Login to Salesforce has failed. Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
com.sforce.async.AsyncApiException An error has occurred in the batch or job executed in the SalesforceBulk adapter. Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.

Notes
