Loop

Operation Name

Loop

Repeat the process as many times as specified.

Icon	Name	Description
	Loop	Start loop.
	End Loop	End loop.

For information about using variables, refer to "variables".

Item name	Required/Optional	Use of Variables	Description	Remarks
Name	Required	Not available	Enter the name on the script canvas.

Item name	Required/Optional	Use of Variables	Description	Remarks
Repeat times	Required	Available	Enter the number of times to loop.	The default value is "1".

Item name	Required/Optional	Use of Variables	Description	Remarks
Edit log setting	Optional	Not available	Select whether to temporarily edit the log setting in the loop processing. [Checked]: Enables to edit log setting. [Not checked]:(default) Does not enable to edit log setting.
Output logs	Optional	Not available	Select whether to output logs. [Checked]:(default) Enables to output logs. [Not checked]: Stops outputting logs.	This action is available if you check the [Edit log setting] box.
Log level	Optional	Not available	Select the editing log level. [NOTICE]: [INFO]:(default) [FINFO]: [FINEST]: [DEBUG]:	This action is available, if you check the [Output logs] box.

Item name	Required/Optional	Use of Variables	Description	Remarks
Comment	Optional	Not available	You can write a short description of this adapter. The description will be reflected in the specifications.

PSP is not supported.

Component variable name	Description	Remarks
count	The number of repeat counts returns.	The value defaults to null.

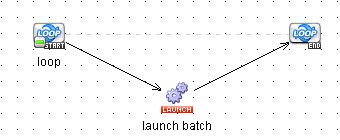

Set the process what you want to execute more than once between [Loop] and [End Loop].

If you edit the log setting, log levels may be edited during the operating process in multithreading such as PSP and thread processing.

None.

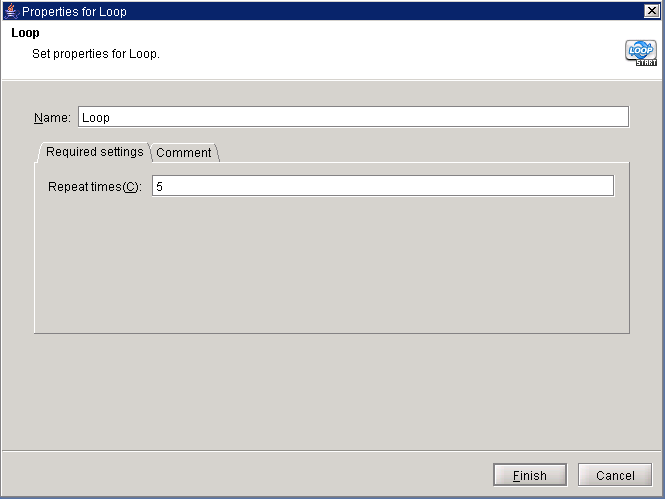

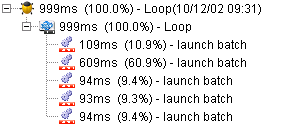

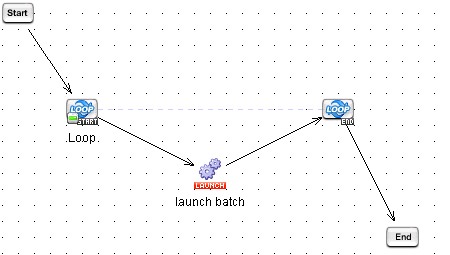

Using loop operation, perform batch 5 times to create the script.
