Conditional Branch

Operation Name

Conditional Branch

Function overview

Performs the Conditional Branch.

Conditional Branch structure

Icon	Name	Description
	Conditional Branch	Conditional Branch starts.
	Condition	Set the condition. Multiple [Condition] can be created in on Conditional Branch process.
	End Conditional Branch	Conditional Branch ends.

Properties

For information about using variables, refer to "variables".

Basic settings

Item name	Required/Optional	Use of Variables	Description	Remarks
Name	Required	Not available	Enter the name on the script canvas.

Required settings

Item name	Required/Optional	Use of Variables	Description	Remarks
Condition list	Optional	-	Specify the condition of Conditional Branch. Each column can be operated with the following buttons. [Add]: Add a condition. [Up]: Move the order of the selected condition upwards by one. [Down]: Move the order of the selected condition downwards by one. [Delete]: Delete the condition.	The maximum [Condition list / Condition] allowed is "253". Refer to here to find more here about the priority order.
Condition list / Condition	Optional	Not available	Specifies the condition. Specified variable can be compared with fixed value or variable. Types of Condition [Compare with variable and fixed value]: (default) Select when compared with variable and fixed value. [Compare between variable and variable]: Select when compared with variable and variable. Contents of condition Content can be specified as a condition depending on the type of selected variables as follows. Integer/decimal type variables [equal to]: [not equal to]: [less than]: [greater than]: [no less than]: [no more than]: String type variables [equal to]: [not equal ]: [start with]: [not start with]: [end with]: [not end with]: [contain]: [not contain]: Boolean type variables [equal to]: [Not equal to]:	Type of variables that can be specified to Conditional Branch. Integer type Decimal type String type Boolean type Depending on the type of the variable specified on the left side of the predicate, the right side will only display the values that are comparable with it.
Condition expression	Optional	Not available	Condition expression is performed as a format of string specified by [Condition].

Property Action

Item name	Description	Remarks
[and] / [or]	Select [and] or [or].
Edit parentheses	Use parentheses to specify the priority of the conditions.	Makes sure that parentheses used are balanced properly.

Comment

Item name	Required/Optional	Use of Variables	Description	Remarks
Comment	Optional	Not available	You can write a short description of this adapter. The description will be reflected in the specifications.

PSP Usage

PSP is not supported.

Priorities of the conditions

Priority of the conditions are as follows.

Evaluates from the top of the [Condition list].
Evaluates the content in the parentheses prior than the content out of the parentheses.
Evaluates [and] prior than [or].

Conditional Branch operation

Create Conditional Branch

Draw the process flow from [Condition] to the process performed when it matches with the condition.

Add Conditional Branch

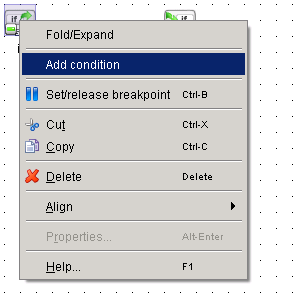

Select [Add condition] from right click menu of [Start Conditional Branch].

The maximum [Condition] icons allowed to be added is 98.

Change of the determination order of conditions

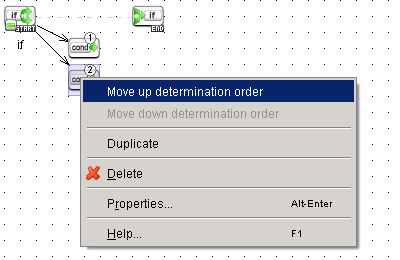

Select [Move up determination order] or [Move down determination order] from the right click menu of [Condition] to change the determination order of conditions. The number on [Condition] is the determination order of conditions.

When not match the condition

If not match with the condition set in [Condition], the process drawn from [Conditional Branch] will be performed.
If there is no subsequent process, moves to [Conditional Branch].

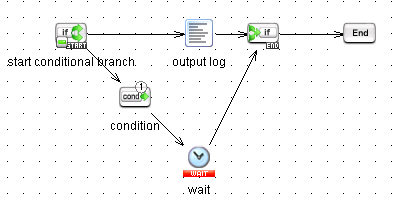

In the example above, if not match with the condition, wait process will not be performed while log output process will be performed.

Specification Limits

Adding or editing of conditions to the component will not change the state of the component and * will not appear next to the component icon.

Main exceptions

None.

Notes

If the process flow was not drawn after [Condition], the process will move to [End Conditional Branch].

Properties can not be opened in either [Conditional Branch] or [End Conditional Branch].

Sample

Uses Conditional Branch to create a script that executes "Launch External Application" only when the number of seconds in script execution time is even number.

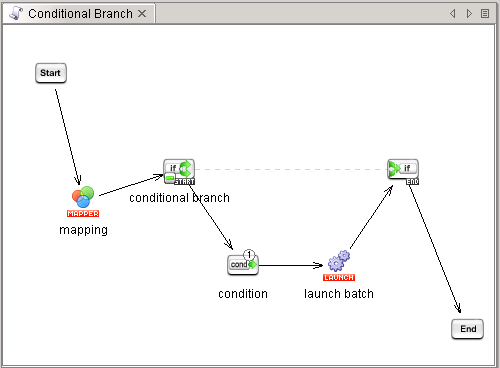

Create script as follows.

Create integer script variable "var".

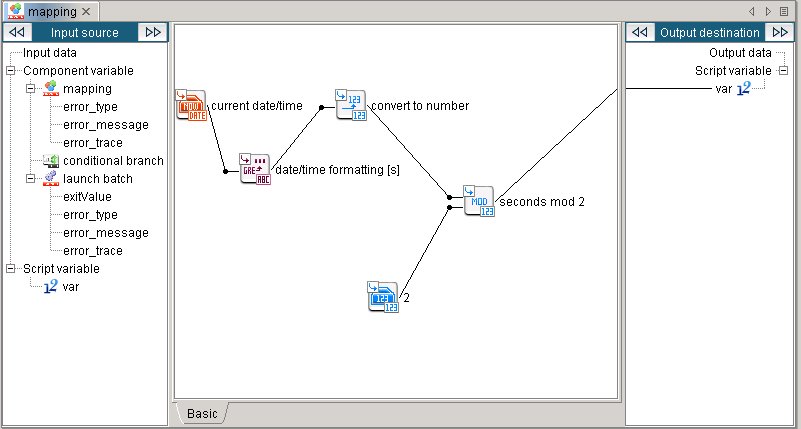

Use mapper to map as follows.
- Checks if the execution time is odd or even in seconds, then maps to the value of script variable "var".
- If the time of script execution is odd in seconds, "var" is set to 1.
- If the time of script execution is even in seconds, "var" is set to 0.

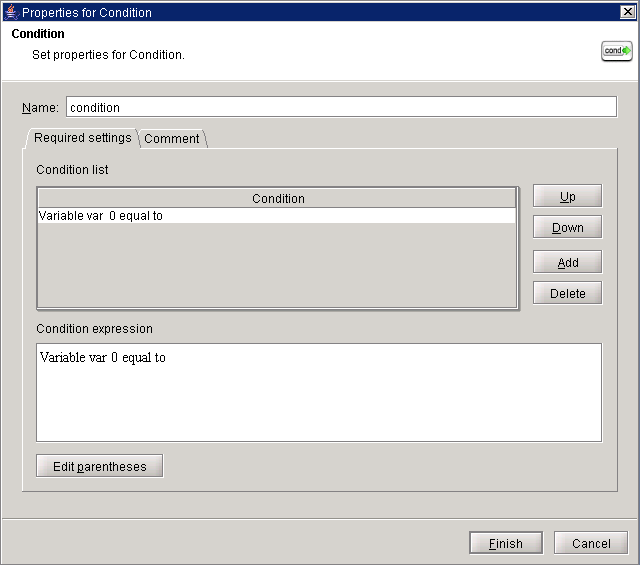

Set Conditional Branch as follows.
- If the time of script execution is odd in seconds, the condition becomes false.
- If the time of script execution is even in seconds, the condition becomes true.

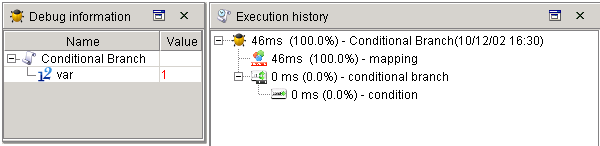

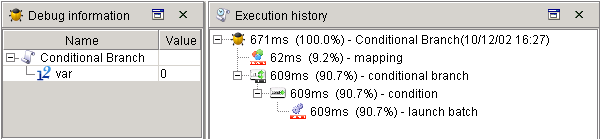

Checks the execution from the debug information and execution log.

Debug information and execution log Script execution time in seconds Whether the batch is launched

Even YES

Odd NO

Debug information and execution log	Script execution time in seconds	Whether the batch is launched
	Even	YES
	Odd	NO
