Custom Logic

Custom Logic

To Create Custom Logic

1. Open Document Mapper/Variable Mapper, and select [Add]-[Custom logic] from the right-click menu on the [Custom logic] palette of the Tool Palette View.
   Custom logic can also be classified into groups.)

   Explanation of item

   Item name		Description	Remarks
   Add	Custom logic	Adds new custom logic.
   	Group	Adds new group.



2. Enter the name of the custom logic.

   Explanation of item

   Item name	Description	Remarks
   Custom logic name	Input custom logic name.
   Description	Input description.

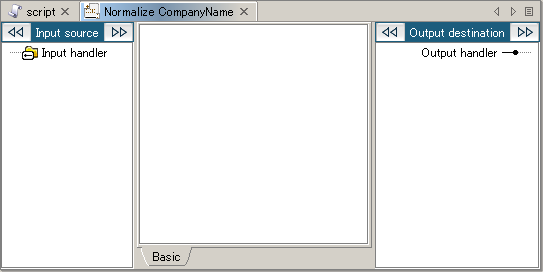

3. A new custom logic is created.

To Modify Custom Logic

1. Double-click to open custom logic on the [Custom logic] palette of Tool Palette View.
   (Or double-click to open custom logic placed to Document Mapper/Variable Mapper .)




2. Select [Create new handler] from the right-click menu on the root element (input handler).

   Explanation of item

   Item name	Description	Remarks
   Create new handler	Adds new handler.



3. Enter the name of the input handler.

   Explanation of item

   Item name	Description	Remarks
   Handler name	Input the name of the input handler.
   Comment	Input comment.


   The increase or decrease of the input handlers is also reflected to custom logic already placed to Document Mapper/Variable Mapper.Corresponding links are deleted as well when the input handler is deleted.
   Output handler is treated the same as in normal logic so there is only one output. Therefore cannot be edited.


4. Create mapping of custom logic.

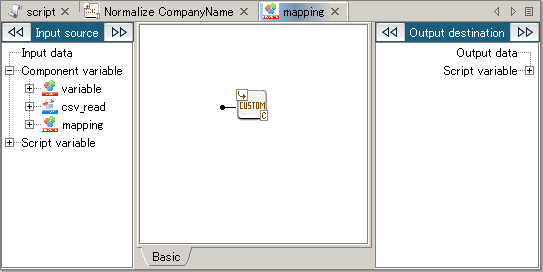

To Place Custom Logic to Mapping Canvas

To delete Custom logic

Specification Limits

• Editing any content of the user definition logics will be reflected to all the user definition logics assigned on a script in a project. Thus, if there are many scripts, it may take a while to save a project.


• Changing [Custom logic name] does not reflect on the tooltip of the user definition logic assigned on the Mapping Canvas.
  Please reopen the Mapper Editor.


• You are not allowed to copy the Mapper including the Custom Logic to a script from another project. Also, you cannot copy the script including the Mapper to another project.
  The Custom Logic should be used in the project where it was created only.


• You are not allowed to use another Custom Logic in Custom Logic.


• If you create a mapping of the same Custom Logic to the input handler of Custom Logic placed on the Mapping Canvas, unexpected process results may occur in cases where some unmapped input handlers exist.
  Please ensure to make a mapping of all input handlers.
