Official | Pre-send Jobs, Post-send Jobs, and Post-receive Jobs

(1) Pre-send Jobs

Jobs that are executed on the Agent environment just before transferring files are called "Pre-send Jobs".

Figure 2.3 Execution of Pre-send Jobs

1. A job is executed on the Agent environment before transferring files.

2. Agent transfers the files.

(2) Post-send Jobs

Jobs that are executed on the Agent environment after transferring files are called "Post-send Jobs". Post-send Jobs are divided into the following two types:

Successful Jobs: These jobs are executed when files have been sent successfully.
Unsuccessful Jobs: These jobs are executed when the attempts to send files fail.

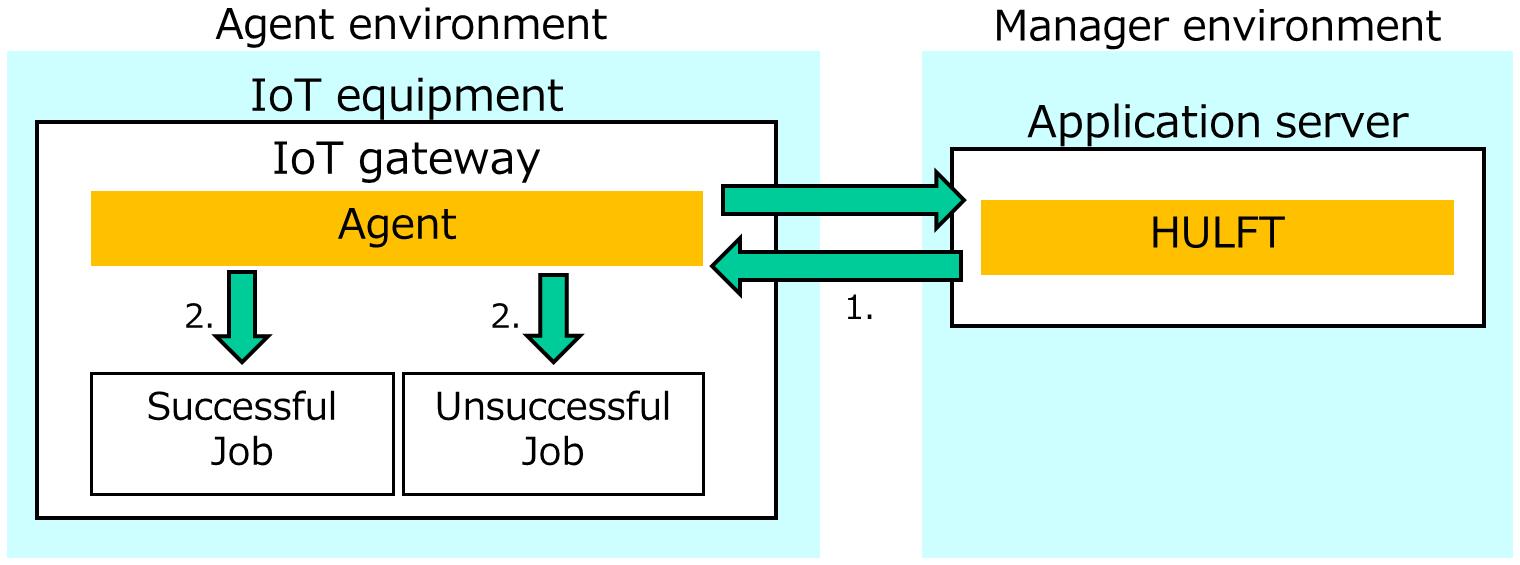

Figure 2.4 Execution of Post-send Jobs

(3) Post-receive Jobs

Jobs that are executed on the Manager environment after transferring files are called "Post-receive Jobs". Post-receive Jobs are divided into the following two types:

Successful Jobs: These jobs are executed when files have been sent successfully.
Unsuccessful Jobs: These jobs are executed when the attempts to send files fail.

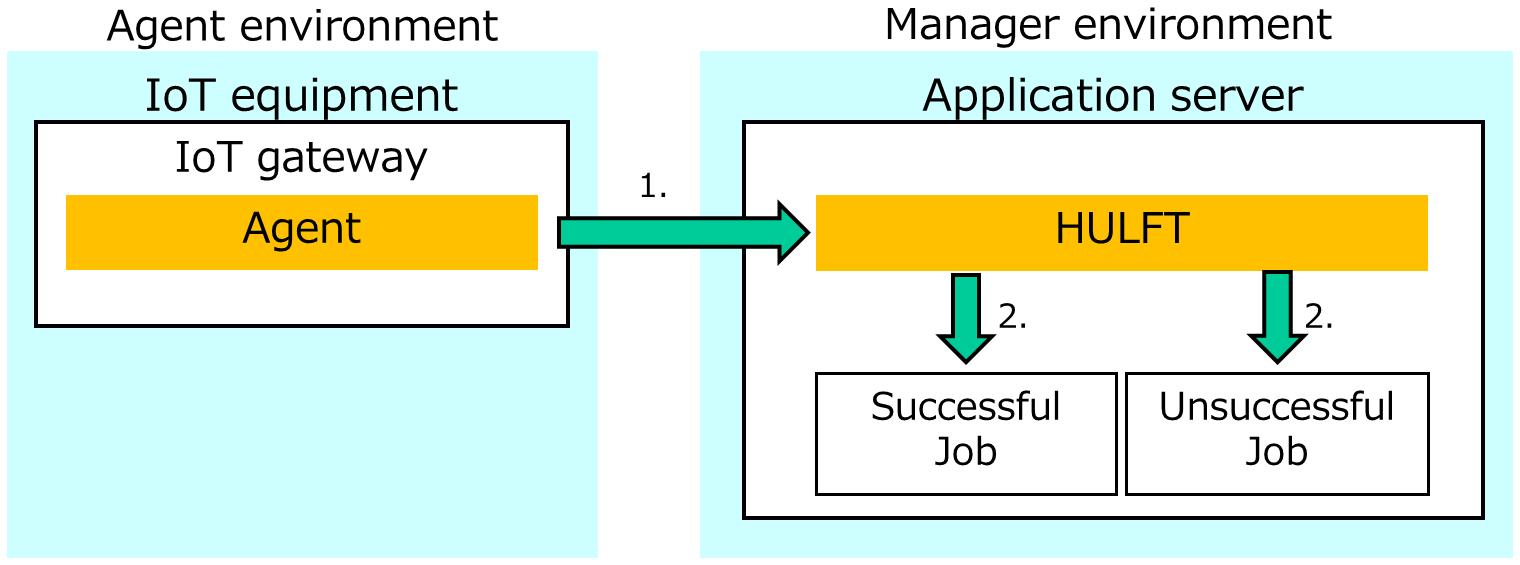

Figure 2.5 Execution of Post-receive Jobs

(4) Usage of environment variables

You can use the different environment variables according to the jobs.

Available environment variables

The following table shows the environment variables which can be used in pre-send jobs and post-send jobs:

Table 2.2 Available environment variables in pre-send jobs and post-send jobs
Variable Name	Conversion Rule
FILEID	Converts to the file ID of the transfer file.
FILENM	Converts to the file name of the transfer file.

The following table shows the environment variables which can be used in post-receive jobs:

Table 2.3 Available environment variables in post-receive jobs
Variable Name	Conversion Rule
HOST	Converts to the receiving host name.
FILEID	Converts to the file ID of the transfer file.
COUNT	Converts to the number of the received records.
FILENM	Converts to the reception file name.
STATUS	Converts to the reception status code. ^†
DETAIL	Converts to the reception detail code. ^†
SDATE	Converts to the reception start date in YYMMDD format.
EDATE	Converts to the reception end date in YYMMDD format.
STIME	Converts to the reception start time in HHMMSS format.
ETIME	Converts to the reception end time in HHMMSS format.
SDATE2	Converts to the reception start date in YYYYMMDD format.
EDATE2	Converts to the reception end date in YYYYMMDD format.

†

:

For details about codes, see the HULFT manual Error Codes and Messages.

(5) Example job

You can find an example of the post-send job and the post-receive job.

Example of the Post-send job (in Windows)

This is an example of the usage of environment variables in a post-send job:

Table 2.4 Conversion example of environment variables (Post-send job)
Environment variable	Description	Conversion value
%FILENM%	The name of the file that was transferred to HULFT	C:\temp\monitored\test.txt

This is an example of the description of environment variables in a post-send job to delete transferred file:

@echo off
echo The following file was transferred to HULFT and it is deleted by Agent: %FILENM% >> "C:\HULFT Family\hulftiot\user.log"
del %FILENM%
:end

If you execute the example above with applying the conversion example indicated in the table, the transferred file will be deleted with the indication as follows:

The following file was transferred to HULFT and it is deleted by Agent: C:\temp\monitored\test.txt

Example of the Post-send job (in Linux)

This is an example of the usage of environment variables in a post-send job:

Table 2.5 Conversion example of environment variables (Post-send job)
Environment variable	Description	Conversion value
$FILENM	The name of the file that was transferred to HULFT	/tmp/monitored/test.txt

This is an example of the description of environment variables in a post-send job to delete transferred file:

#! /bin/sh
echo The following file was transferred to HULFT and it is deleted by Agent: $FILENM >> user.log
rm $FILENM

If you execute the example above with applying the conversion example indicated in the table, the transferred file will be deleted with the indication as follows:

The following file was transferred to HULFT and it is deleted by Agent: /tmp/monitored/test.txt

Example of the Post-receive job (in Windows)

This is an example of the usage of environment variables in a post-receive job:

Table 2.6 Conversion example of environment variables (Post-receive job)
Environment variable	Description	Conversion value
%$HOST%	Reception host name	HOST0001
%$FILEID%	File ID of the transferred file	FILEID01
%$SDATE2%	Start date of the reception	20180815
%$STIME%	Start time of the reception	155400
%$EDATE2%	End date of the reception	20180815
%$ETIME%	End time of the reception	160232
%$COUNT%	The number of the received records	12000
%$STATUS%	Reception status code	0
%$FILENM%	The received file name	C:\temp\received\result.txt

This is an example of the description of environment variables in a post-receive job to output the received file information to the standard output:

@echo off
echo %$HOST% %$FILEID% %$SDATE2% %$STIME% %$EDATE2% %$ETIME%
echo count=%$COUNT% status=%$STATUS%
if not %$STATUS% == 0 goto end
echo %$FILENM%
:end

If you execute the example above with applying the conversion example indicated in the table, the received result information will be output as follows:

HOST0001 FILEID01 20180815 155400 20180815 160232
count=12000 status=0
C:\temp\received\result.txt

Example of the Post-receive job (in Linux)

This is an example of the usage of environment variables in a post-receive job:

Table 2.7 Conversion example of environment variables (Post-receive job)
Environment variable	Description	Conversion value
$HOST	Reception host name	HOST0001
$FILEID	File ID of the transferred file	FILEID01
$SDATE2	Start date of the reception	20180815
$STIME	Start time of the reception	155400
$EDATE2	End date of the reception	20180815
$ETIME	End time of the reception	160232
$COUNT	The number of received records	12000
$STATUS	Reception status code	0
$DETAIL	Reception detail code	0
$FILENM	The received file name	/tmp/received/result.txt

This is an example of the description of environment variables in a post-receive job to output the received file information to the file:

#! /bin/sh
echo $HOST $FILEID $SDATE2 $SITME $EDATE2 $ETIME > user.log
echo count=$COUNT status=$STATUS detail=$DETAIL >> user.log
if [ $STATUS -eq 0 ]
then
echo $FILENM >> user.log
cp $FILENM $FILENM.bakfi

If you execute the example above with applying the conversion example indicated in the table, the received result information will be output as follows:

HOST0001 FILEID01 2018015 1555400 20180815 160232
count=12000 status=0 detail=0
/tmp/received/result.txt

(6) Specifying the job execution mode

On the [Job] tab of the transfer settings screen, specify the job execution mode of pre-send jobs and post-send jobs (both Successful Jobs and Unsuccessful Jobs). Select either [Step Execution] or [Script Execution] for the job execution mode according to the format of the job to be executed.

Table 2.8 Job execution modes and jobs that are executed
Job conditions		Job execution mode
Job conditions		Step Execution	Script Execution
Job to be executed		- Indicate the commands that you want to execute. - Multiple commands can be used.	- Indicate the script file that you want to execute. - The supported script formats depend on the OS and the environment.
	In Windows	Commands that can be executed from a command prompt	Batch files that can be executed from a command prompt
	In Linux	Commands that can be executed from the login shell that is allocated to the executor of Agent	Shell script files composed of commands that can be interpreted by the Bourne shell*
Judgment		- When the return value of the command is 0: Manager judges that the command ends normally. - When the return value of the command is other than 0: Manager judges that the command ends abnormally. Manager suspends an execution of the command and the subsequent commands are not executed.	- If the status code of the script file is 0: Manager judges that the script file ended normally. - If the status code of the script file is not 0: Manager judges that the script file ended abnormally.

*

:

For details about the commands that can be executed via shell scripts, check the specifications of /bin/sh for the installation destination OS.
