Configuring the Agent environment settings
To configure the environment settings that are used when Agent transfers files to HULFT:
1. From the operation screen of Manager, select [Agent].
2. From the Agent List screen, select an instance of Agent, and then from the [Action] menu, select [Change Operation Settings].

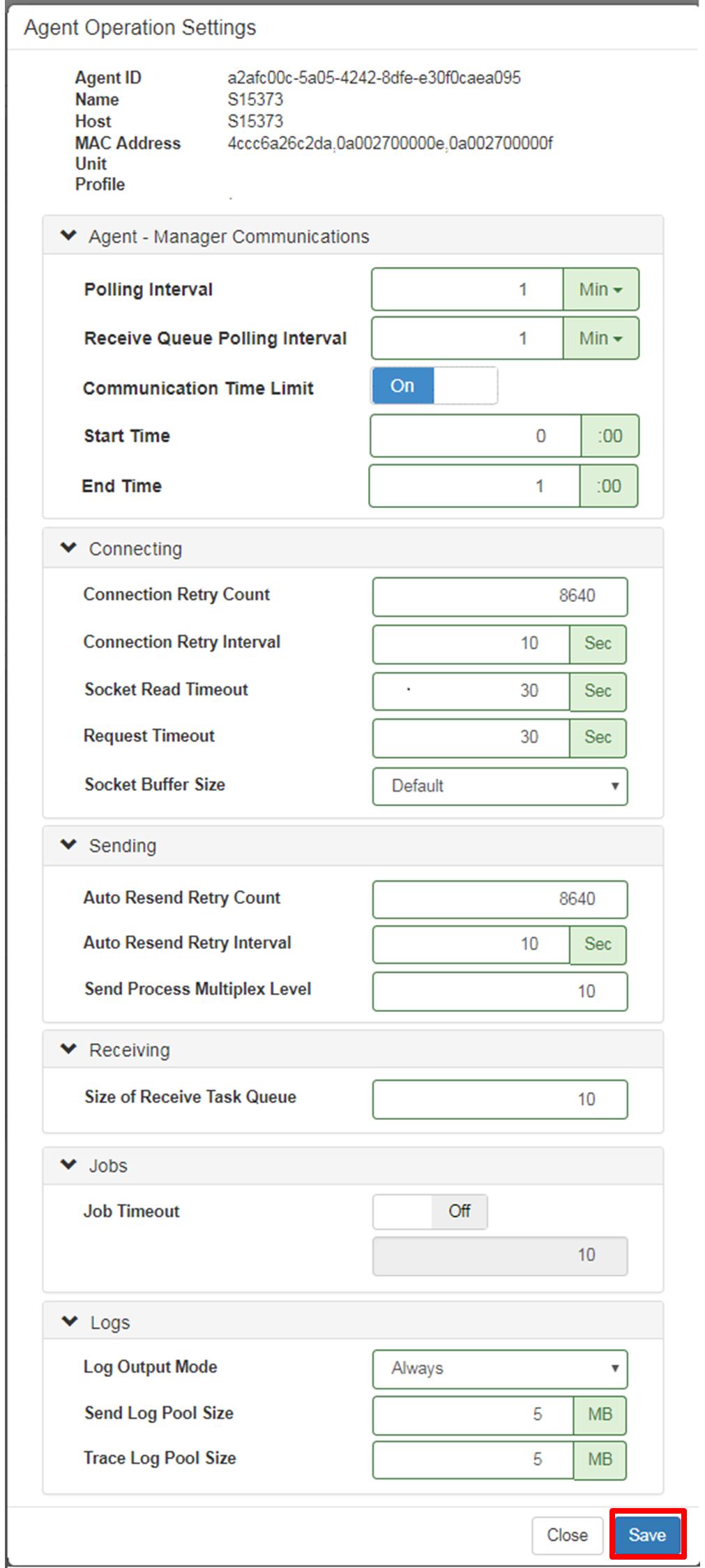

3. On the Agent Operation Settings screen, enter information in the fields as necessary, and then click [Save].
When performing a communication test, you can use the default values.
| Item | Field name | Description | Specifiable values | Unit | Default value |
|---|---|---|---|---|---|
| Agent - Manager Communications | Polling Interval | Specify the interval at which Agent polls Manager. | 1 to 59 |
Seconds/Minutes /Hours/Days |
1 minute |
| Receive Queue Polling Interval | Specify the interval at which Agent polls the Receive Task Queue. | 1 to 59 |
Seconds/Minutes /Hours/Days |
1 minute | |
| Communication Time Limit | Specify whether the time period when Agent communicates with Manager is restricted. | [On] or [Off] | --- | [Off] | |
| Start Time |
Specify the time of day when Agent can start to communicate with Manager if you limit the time when Agent can communicate with Manager. Specify the value with "End Time". |
0 to 23 | o'clock | --- | |
| End Time |
Specify the time of day when Agent ends the communication with Manager if you limit the time when Agent can communicate with Manager. Specify the value with "Start Time". |
0 to 23 | o'clock | --- | |
| Connecting | Connection Retry Count | Specify the number of times to retry a connection when Agent fails to connect to HULFT. If you specify "0", Agent will not retry a connection. | 0 to 9999 | Times | 8640 times |
| Connection Retry Interval | Specify the amount of time to wait before Agent retries a connection when Agent fails to connect to HULFT. | 0 to 9999 | Seconds | 10 seconds | |
| Socket Read Timeout |
Specify the time until a timeout occurs when Agent does not receive a response from HULFT during a socket communication between Agent and HULFT. If a timeout occurs, Agent regards the state as a communication error and disconnects the communication. |
10 to 259200 | Seconds | 30 seconds | |
| Request Timeout |
Specify the time until a timeout occurs when Agent does not receive a response from Manager during any communications between Agent and Manager. If a timeout occurs, Agent regards the state as a communication error and disconnects the communication. |
10 to 259200 | Seconds | 3600 seconds | |
| Socket Buffer Size |
Specify the socket buffer size that is applied to socket communication from Agent to HULFT. ・[Default]: 0 ・[User Specified]: 4096 to 2147483647 When [User Specified] is selected, 0 cannot be specified. |
4096 to 2147483647 |
Bytes | 0 | |
| Resending | Auto Resend Retry Count | Specify the number of times that Agent retries a transfer when a communication error causes a failure during a file transfer to HULFT. | 0 to 255 | Times | 60 times |
| Auto Resend Retry Interval | Specify the amount of time to wait before Agent retries a transfer when a communication error causes a failure during a file transfer to HULFT. | 0 to 9999 | Seconds | 60 seconds | |
| Send Process Multiplex Level |
Specify the maximum number of send processes If the number of transfer files in an instance of Agent exceeds the maximum number of send processes, Agent delays transferring the extra files until the next trigger fire after the time of the monitoring interval that is specified on the Transfer Settings screen elapsed. |
1 to 99 | Processes | 10 processes | |
| Receiving | Size of Receive Task Queue |
Specify the maximum number of Receive Tasks that can be registered in the Receive Task Queue for the file distribution function. If the number of tasks exceeds the maximum, the new task will not be added to the queue. |
1 to 9999 | Tasks | 10 tasks |
| Jobs | Job Timeout |
Specify the amount of time to wait before generating an error when the result of a job for a file transfer or file distribution is not returned. If [Off] is specified, Agent keeps waiting for a result without timing out. |
If set to [On]: 10 to 86400 |
Seconds | [Off] |
| Logs | Log Output Mode | Specify whether to have Agent always output Send Logs or whether to have Agent output Send Logs only when an error occurs. | --- | --- | Always |
| Send Log Pool Size | Specify the size of Send Logs that are kept in Agent. | 1 to 1024 | MB | 5 MB | |
| Trace Log Pool Size | Specify the size of Trace Logs that are kept in Agent. | 1 to 1024 | MB | 5 MB |
