Edit resource list

Configure FTP connection settings.

Note

The following types of operations use the same FTP connection settings:

  • Send file of specified interval operation

  • Send file of specified size operation

It is not necessary to create FTP connection settings for each component.

On the Required settings tab on the send file of specified size operation screen, open the pulldown list of Destination, and then click Edit resource list to display the editing screen.

For details on the send file of specified size operation screen, refer to Send file of specified size.

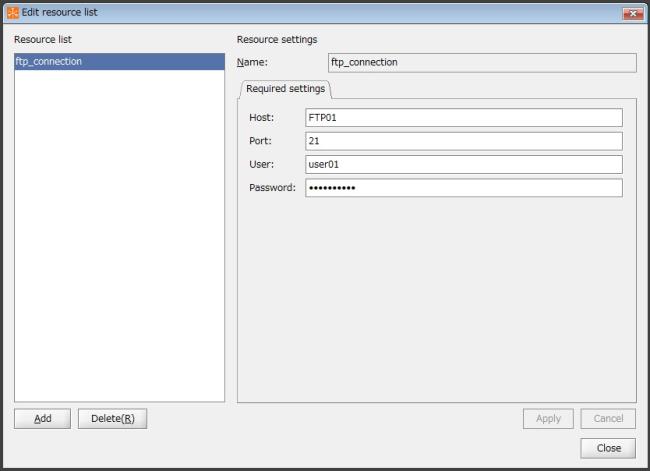

Figure 7.5 Edit resource list screen

(1) Field list

This is a list of the fields to configure on the Edit resource list screen.

Table 7.7 Field list

Field Name

Initial Value

Setting Value

Omission

Notes

Resource list



Resource name for registered FTP connection

-



Name



Single-byte alphanumeric characters and certain symbols (*1)

-

A value that begins with a single-byte alphabetic character

Required settings



Host





-



Port

21

From 1 to 65535

-

Set as integer

User





-



Password





-



-

:

Impossible to omit

*1

:

Only "_" (underscore) can be specified.

(2) Description of each field

This section explains each of the fields to configure on the Edit resource list screen.

After changing these settings, click Apply to save the settings.

Click Cancel to discard the changes.

Click Close to close the screen.

Resource list

Resource list for FTP connection

To edit the content of the settings, select the resource name of the registered FTP connection.

When you select a resource name, the registered contents are displayed.

When you click Add, the FTP connection settings screen appears, and you can add resource information.

For details on the FTP connection settings screen, refer to FTP connection settings.

When you click Delete, the resource information of the selected FTP connection settings is deleted.

Name

Resource name for FTP connection settings

Single-byte alphanumeric characters and "_" (underscore) can be used.

Use a value that begins with a single-byte alphabetic character.

Required settings

Host

Host name of the FTP connection destination

Specify the host name of the FTP connection destination.

Port

Port number of the FTP connection destination

Specify the FTP connection destination port number as a numerical value between "1" and "65535".

User

User name

Specify the user name to use for connection to the FTP server.

Password

Password

Specify the password to use for connection to the FTP server.
