Insert (result output)

This operation outputs the operation results from insertion to a database.

The result of what is written to the database is output to "metadata\succeeded" of the output schema.

When the input data is successfully written to the database, "true" is output.

When the input data is not successfully written to the database, "false" is output.

Note

The "true" or "false" value that is output to "metadata\succeeded" of the output schema is a character string.

If you want to handle the output value as a boolean value, use the following logic to compare values, and then use the value of the comparison results:

  • Condition > Boolean > Boolean Constant

  • Condition > String > Equal

You can display the insert (result output) operation screen by displaying the script canvas on the Designer screen, clicking the following items in the following order, and then dragging and dropping the component icon onto the script canvas:

  • Tool palette > Database > PostgreSQL > Insert(result output)

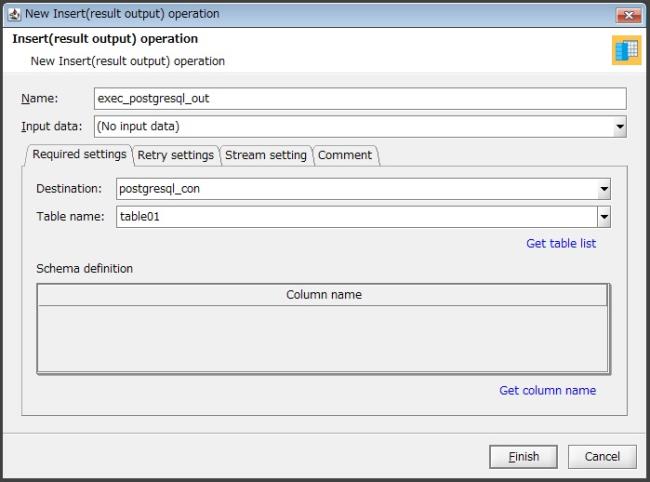

Figure 6.10 Insert (result output) operation screen

(1) Field list

This is a list of the fields to configure for the insert (result output) operation.

Table 6.10 Field list

Field Name

Initial Value

Setting Value

Omission

Notes

Name



Single-byte alphanumeric characters and certain symbols (*1)

-

A value that begins with a single-byte alphabetic character

Input data

(No input data)

Name of the input data component

-

Select from list (*2)

Required settings



Destination





-



Table name





-



Schema definition





-



Retry settings



Number of retries

15

From 0 to 9999

-

Set as integer

Number of buffering items

86400

From 0 to 1073741824

-



Buffer type

Memory buffer



✓

Select from list

Stream setting



Relation-to-Stream Operator

RSTREAM



✓

Select from list

Window type

TUPLES



✓

Select from list

Window

1

From 1 to 2147483646

✓

Set as integer

Comment



Comment



Characters

✓



✓

:

Possible to omit

-

:

Impossible to omit

*1

:

Only "_" (underscore) can be specified.

*2

:

When component icons for input or conversion are placed on the script canvas, the options are displayed in the list.

(2) Description of each field

This section explains each of the fields to configure for the insert (result output) operation.

After changing these settings, click Finish to save the settings.

Click Cancel to discard the changes.

Name

Name of the insert (result output) operation component

Single-byte alphanumeric characters and "_" (underscore) can be used.

Use a value that begins with a single-byte alphabetic character.

Input data

Selection of the component name of the input data for the insert (result output) operation

From the input data component names displayed in the list, select the component name for the insert (result output) operation.

Required settings

Destination

PostgreSQL destination

Select the PostgreSQL destination for the insert (result output) operation.

When you click Add, the PostgreSQL connection settings screen appears.

For details on the PostgreSQL connection settings screen, refer to PostgreSQL connection settings.

When you click Edit list..., the editing screen for the resource list appears.

For details on the editing screen for the resource list, refer to Edit resource list.

Table name

Input data column name

Specify the PostgreSQL table name for the insert (result output) operation.

You can also use Get table list to get a list of table names.

Schema definition

PostgreSQL schema definition

Configure the schema of the PostgreSQL that is set as the destination.

You can also use Get column name to get the schema definition.

Retry settings

Number of retries

Number of retries when trying to connect to the database

Specify a number from "0" through "9999" for the number of retries when trying to connect to the database.

Number of buffering items

Number of buffering items when writing to the database

Specify a number from "0" through "1073741824" for the number of buffering items when writing to the database.

Buffer type

Buffer type

Select from the following buffering types:

  • Memory buffer

Stream setting

Relation-to-Stream Operator

Method for stream operation

The stream operation converts the results data of relational operations into stream data.

Data such as all data (RSTREAM) or added data (ISTREAM) is output as stream data according to changes in the output relation (*1).

Select from the following methods for stream operation:

  • RSTREAM

    All data is processed.

  • ISTREAM

    Only data that differs from the directly preceding data is processed.

If you omit this setting, "RSTREAM" is used to perform the operation for the relation.

Window type

Processing unit for stream operation

Select from the following units for processing with the stream operation:

  • TUPLES

    Use tuples (*2) for processing.

  • SECONDS

    Use seconds for processing.

  • MILLISECONDS

    Use milliseconds for processing.

If you omit this setting, "TUPLES" is selected.

Window

Execution count for stream operation

Specify a number from "1" through "2147483646" for the execution count for the stream operation.

If you omit this setting, "1" is selected.

*1

:

The operation is executed during conversion processing, and the data that will become the result is extracted as a relation.

This relation is called output relation.

*2

:

A tuple represents a stream component. A tuple is used as the unit for data that moves the stream.

Comment

Comment

Comment regarding the insert (result output) operation

You can enter a comment.
