String constant
Logic name
String constant
Function
This logic outputs a single-line string constant.
Data type
|
Location |
Type |
|---|---|
|
Logic output |
String |
Property
|
Category |
Property |
Description |
|---|---|---|
|
Required |
Single-line string |
The specified string is output without changes. |
|
Comment |
Comment |
It does not affect the conversion processing. |
Example of logic use

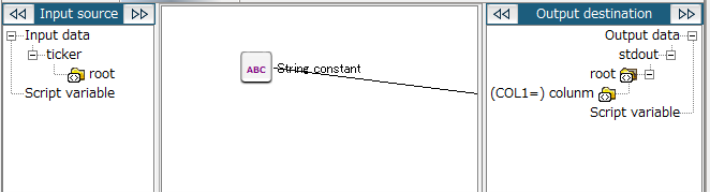

Mapping definition
Logic settings and processing result
If "Sample Data" is set for Single-line string, this logic outputs that string.
Property settings
|
Property |
Setting Value |
|---|---|
|
Single-line string |
Sample Data |
Output data
|
Sample Data |
