Floor
Logic name
Floor
Function
This logic rounds down to the nearest integer of the input numerical value.
If the input numerical value is a negative value, the output numerical value is the largest value less than or equal to the input numerical value.
Data type
|
Location |
Type |
|---|---|
|
First input handler |
Numeric |
|
Logic output |
Numeric |
Property
|
Category |
Property |
Description |
|---|---|---|
|
Comment |
Comment |
It does not affect the conversion processing. |
Example of logic use

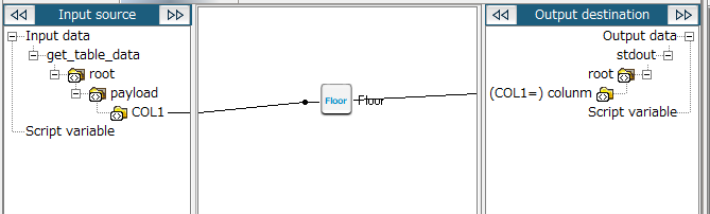

Mapping definition
Logic settings and processing result
This logic rounds down to the nearest integer of the input data values and outputs them.
Property settings
|
Property |
Setting Value |
|---|---|
|
None |
Input data
|
123.456 |
|
-123.456 |
|
-123.000 |
Output data
|
123 |
|
-124 |
|
-123 |
