If Loop
Logic name
If Loop
Function
This logic loops and outputs the items that match the conditions.
Data type
|
Location |
Type |
|---|---|
|
First input handler |
Loop |
|
Second input handler |
Boolean |
|
Logic output |
Loop |
Property
|
Category |
Property |
Description |
|---|---|---|
|
Comment |
Comment |
It does not affect the conversion processing. |
Notes
If you draw a stream flow from a Mapper logic that does not belong to the condition category to the second input handler (lower connecting line), when you execute the script, an unexpected conversion result may be output.
Therefore, when you draw the stream flow to the second input handler, draw from a Mapper logic that belongs to the condition category.
Example of logic use

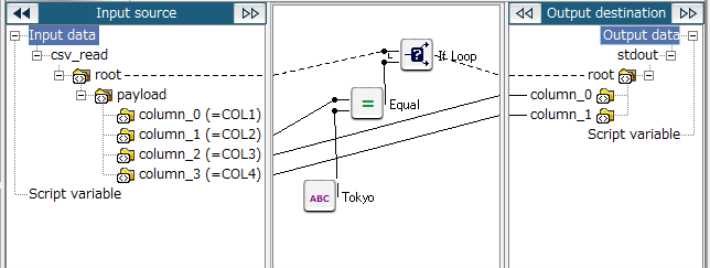

Mapping definition
Logic settings and processing result
The logic only outputs data where the prefecture is "Tokyo".
Property settings
|
Property |
Setting Value |
|---|---|
|
None |
Input data
|
001,Tokyo,108,Chiyoda-ku |
|
003,Chiba,301,Chiba |
|
001,Tokyo,101,Bunkyo-ku |
|
002,Osaka,201,Osaka |
|
001,Tokyo,128,Musashino |
Output data
|
108,Chiyoda-ku |
|
101,Bunkyo-ku |
|
128,Musashino |
