Saving of values to script variables

Double-click the mapping icon to open the Mapper editor.

Create a mapping link.

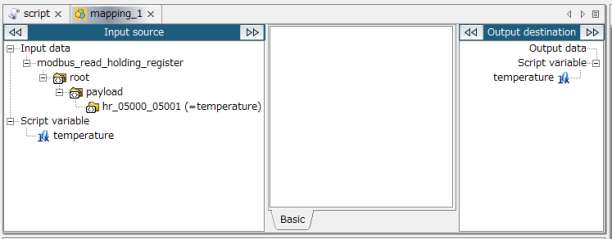

Click the element "hr_05000_05001" in the input source, and move the mouse cursor to drag and drop it onto the script variable "temperature" in the output destination.

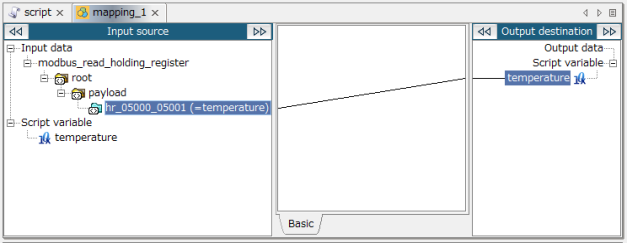

When you release the mouse button over the script variable "temperature," the element "hr_05000_05001" and the script variable "temperature" are connected by a mapping link as shown below.

The mapping definition is now finished.

As the procedure on the mapping canvas is complete, you can close the mapping canvas.

Click the x button on the right of the "mapping_1" tab at the top of the canvas.
