Mapper editor (Document Mapper/Variable Mapper)

Mapper editor

The Mapper editor is a GUI tool only for Mapper. The mapping definition can be easily made by dragging the icon on the screen that is called a mapping canvas, and mapping the nodes for the input schema and the output schema.

Method of starting the Mapper editor

The Mapper editor starts as a tab screen when the Mapper icon on the script canvas is opened.

Method of ending the Mapper editor

Click the × button in the tab in the Mapper editor when you end the Mapper editor.

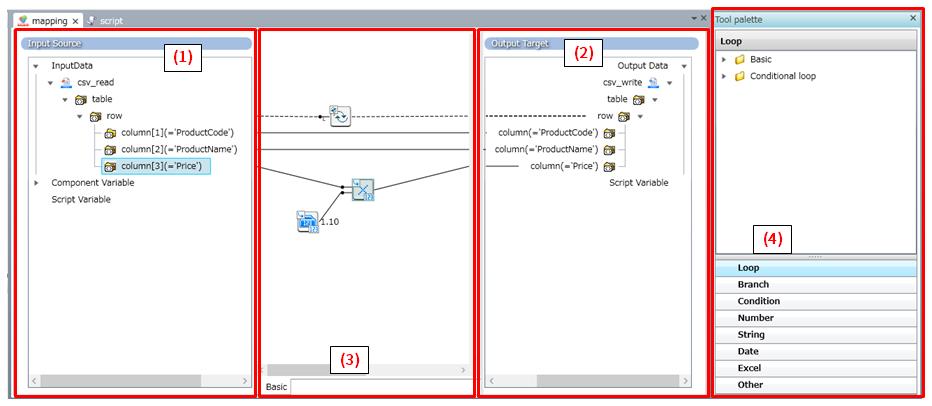

Composition of screen of the Mapper editor

Numbering in the figure	Screen name	Description	Remarks
(1)	Input source	Schemas and variables of the component that can be used as an input source are displayed. In Document Mapper, a tree of schemas of input source components that are connected to the data flow and a list of component variables and script variables are displayed. In Variable Mapper, a tree of input schemas of components that are in the same script and a list of component variables and script variables are displayed.
(2)	Output target	Schemas and variables of the component that can be used as an output target are displayed. In Document Mapper, a tree of schemas of output target components that are connected to the data flow and a list of script variables are displayed. In Variable Mapper, a list of script variables is displayed.
(3)	Mapping canvas	This is a canvas to make the mapping definition. You can create the mapping definition by connecting elements or variables of input schema and output schema directly with mapping links and arranging the Mapper logic.
(4)	Tool palette	The Mapper logics of each category are displayed by the tree structure.	Refer to Mapper logic for the use of each logic.

Glossary for the Mapper editor

Numbering in the figure	Name	Description	Remarks
(1)	Input schema	This is a schema of an input source component.	The setting method is different depending on the data model of the component. For details, refer to Schema of the connector.
(2)	Root element	This is an element that becomes the starting point of the schema.
(3)	Loop point	This is an element for mapping with loop logic.
(4)	Element (node)	This is an element for the data extraction.	The link is highlighted with orange when selecting it. The linked Mapper logic outside the display range is displayed in the display range when double-clicking it.
(5)	Mapper logic (Loop logic)	This is a tool only for Mapper to extract data repeatedly. Place it on the mapping canvas by dragging it from the tool palette.	Refer to Mapper logic for the Mapper logic.
(6)	Mapping link (solid line)	It shows the flow of data. It means that data flows from the input source to the output target. This is used in a normal Mapper logic.	The link is highlighted with blue when selecting it or hovering the cursor on it. The linked Mapper logic outside the display range is displayed in the display range when double-clicking it.
(7)	Mapping link (dotted line)	It indicates the repetition of data extraction. It means that data is read repeatedly in the place where the link is connected. This is used in a loop logic or a Merge logic.	The link is highlighted with blue when selecting it or hovering the cursor on it. The linked Mapper logic outside the display range is displayed in the display range when double-clicking it.
(8)	Mapper logic	This is a tool exclusively for Mapper that coverts or processes data. Place it on the mapping canvas by dragging it from the tool palette.	Refer to Mapper logic for the Mapper logic.
(9)	Layer	This is a function to hierarchize the mapping definition. The visibility can be improved by hierarchizing the mapping definition by using two or more layers.	Refer to Layer function for the layer.
(10)	Mapping definition	It shows the mapping process made on the mapping canvas.
(11)	Output schema	This is a schema of an output target component.	The setting method is different depending on the data model of the component. For details, refer to Schema of the connector.

Tool Menu

The menu exclusively prepared for the Mapper editor is available from the Designer's tool menu.

Item Description

Item name	Description	Remarks
Connect All Based on Name	Maps elements of input schema and output schema which have the same comments or the same names at once.	Note It is not possible to use it by Variable Mapper. You need to select the parent element of the grouped elements that you want to link at once from both the input schema and the output schema. Not only the child elements of the selected element but elements over multiple hierarchies are mapped at once. However, it is necessary that the absolute path which includes the parent element matches. If comments exist in an input schema element, elements of which comments of input schema and output schema match are mapped. Also, if comments don't exist in an element of input schema, elements of input schema and output schema which have the same name are mapped. Case-insensitive.
Connect All Based on Order	Maps in order all the elements of the input schema and the output schema to be mapped at once.	Note It is not possible to use it by Variable Mapper. You need to select the parent element of the grouped elements that you want to link at once from both the input schema and the output schema. Only the elements directly under the selected element are mapped at once.
Connect all by file	Performs mapping at once based on the contents described in a mapping link definition file.	Note It is not possible to use it by Variable Mapper. You need to select the parent element of the grouped elements that you want to link at once from both the input schema and the output schema. Only the elements directly under the selected element are mapped at once. Actions when linking at once are as follows: When elements of the input schema and output schema have the same comment or name in the mapping link definition file, they are mapped. Beginning from the top of the input schema elements, it is determined whether each element has the same comment or name in the mapping link definition file. If comments exist in an input schema element, elements of which comments of input schema and output schema match are mapped. Also, if comments don't exist in an element of input schema, elements of input schema and output schema which have the same name are mapped. Case-insensitive. For details on mapping link definition file, refer to About mapping link definition file.
Load Input Schema	Loads the input schema. You need to select a method to load the schema.
Load Output Schema	Loads the output schema. You need to select a method to load the schema.

About mapping link definition file

For mapping link definition, it is necessary to describe with the following format:
- <Comment or name of the input schema element>=<Comment or name of the output schema element>

  Example: mapping link definition
```
Part number=part_number
Product name=product_name
Product name in kanji=product_name_kanji
Price=price
```
If you describe several mapping links which have the same comment or element name in input schema, the latter one is used.
If you describe several mapping links which have the same comment or element name in output schema, the former one which matches input schema elements is used.
Encoding supported for mapping link definition file is UTF-8.
Don't add a BOM (Byte Order Mark).
