Execution Job Type
Logic name
Execution Job Type (Document Mapper/Variable Mapper/Merge Mapper)
Function
This logic outputs the execution job type.
Data types
|
Location |
Type |
|---|---|
|
Logic output |
String |
Refer to the following for details:
-
Logic specifications (Document Mapper/Variable Mapper)
-
Logic specifications (Merge Mapper)
Properties
|
Category |
Property |
Description |
|---|---|---|
|
Comment |
Comment |
You can write a description of the logic. It doesn't affect the conversion process. |
Function details
The execution job type is obtained and output.
The output value varies by the execution tool.
|
Execution tool |
Value |
|---|---|
|
Job |
<Type of job> |
|
Test execution from Designer |
(Execution from Designer.) |
Logic sample

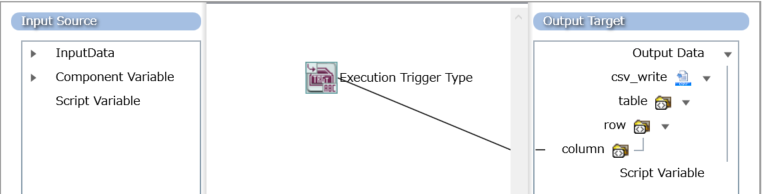

Mapping definition
Logic settings and processing result
If the type of the execution job is scheduled job, this logic outputs "ScheduleTrigger".
Property settings
|
Property |
Setting |
|---|---|
|
None |
|
Output data
|
ScheduleTrigger |
For a list of logics, refer to Mapper Logic Guide.
