Connection types

HULFT enables the sending and receiving of files between mainframes, midrange computers, UNIX, Linux, Windows, and NonStop using TCP/IP, which is the standard protocol in the industry.

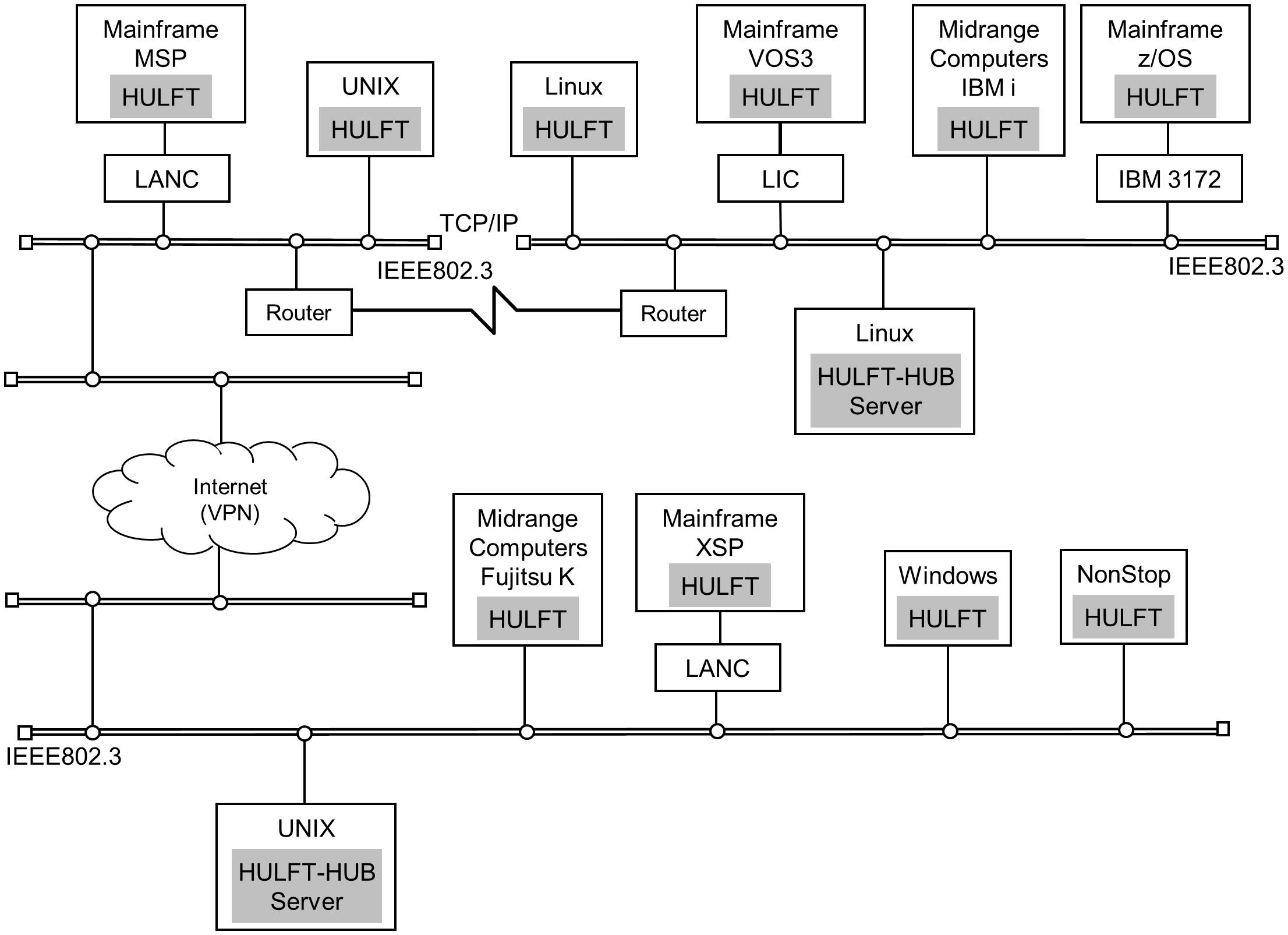

Figure 1.1 illustrates an example of connection using HULFT.

Figure 1.1 HULFT Connection Types

= Remarks =

HULFT-HUB is middleware that centralizes in one server the control of HULFT that are installed on each host within the enterprise or between enterprises. HULFT-HUB consists of HULFT-HUB Server, which enables users to carry out data transfer and accumulate data, and HULFT-HUB Manager, on which users can set and operate HULFT and HULFT-HUB Server.
