Terminating the HULFT service using the HULFT Process Controller

Stop the HULFT service from the Process Controller screen of the HULFT Management Console.

1. On the Start menu, click All Programs > HULFT Family. Then click the name of the HULFT system that you want to terminate, and click HULFT to open the HULFT Management Console.

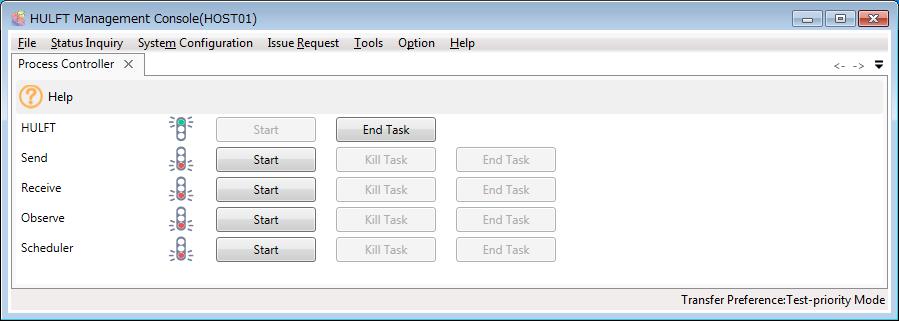

2. Start the Process Controller by selecting Tools > Process Controller on the HULFT Management Console.



   A green light indicates that the process has started, a yellow light indicates that startup processing or termination processing is being initiated, and a red light indicates that the process has been terminated. HULFT indicates the startup or termination status of the HULFT service.

3. Click End Task for HULFT. When the HULFT service stops, the signal turns to red.
