Confirming the startup with the HULFT Management Console

Confirm the startup of each process and service by using the Process Controller.

1. On the Start menu, click All Programs > HULFT Family. Then click the name of the HULFT system of which you want to confirm the startup, and click HULFT to open the HULFT Management Console.

2. Start the Process Controller by selecting Tools > Process Controller on the HULFT Management Console.

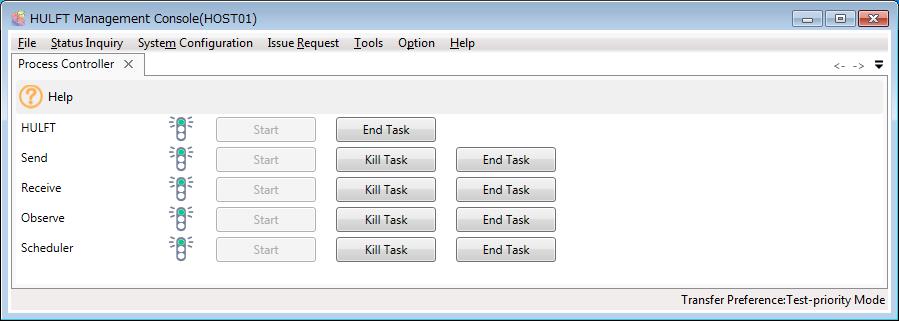

Confirm the status buttons and signals of each process and the service. A green light indicates that the process has started, a yellow light indicates that startup processing or termination processing is being initiated, and a red light indicates that the process has been terminated. HULFT indicates the status of the service.
