Modification

The procedure for modifying a record of the Schedule Information is as follows:

  1. Use either of the following methods:

    • Clicking Schedule Information in the Management Information section of the Home screen

    • Clicking System Configuration > Schedule Information

    The Schedule Information List screen is displayed.

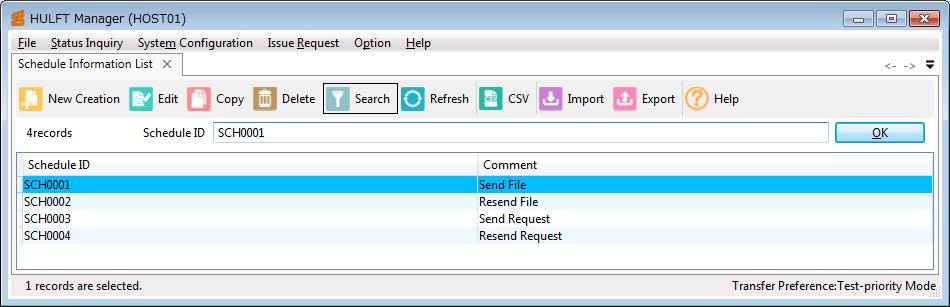

    Screen 4.104 Schedule Information List Screen

  2. Use one of the following methods:

    • Entering the schedule ID for the record that you intend to modify in the input field of Schedule ID, and clicking OK

    • Selecting the schedule ID on the list and clicking Edit on the toolbar

    • Right-clicking the schedule ID on the list and selecting Edit on the pop-up menu

    • Selecting and double-clicking the schedule ID on the list

    The Schedule Information Update screen is displayed.

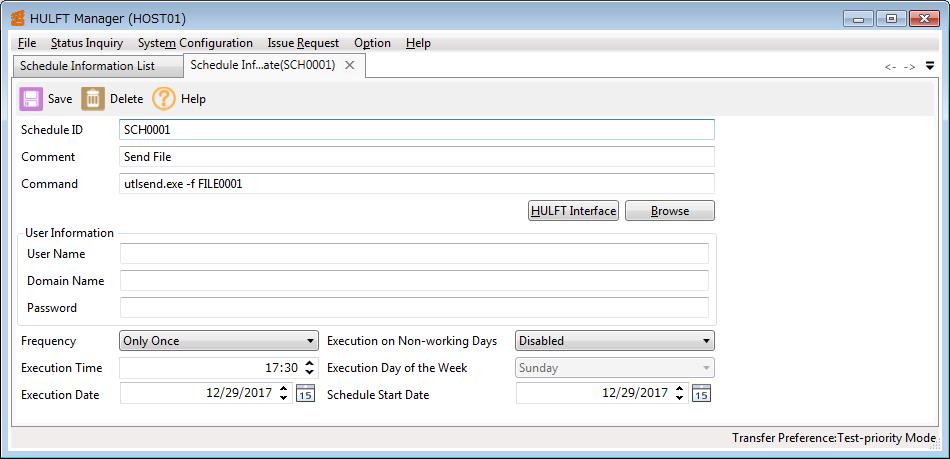

    Screen 4.105 Schedule Information Update Screen

  3. Modify the contents of the Schedule Information.

    After entering the information, click Save on the toolbar.

    An overwrite confirmation message is displayed.

  4. Click Yes.

    A successful completion message is displayed.

  5. Click OK.

    The record of the Schedule Information is modified as specified, and the Schedule Information List screen is displayed.

Note

To reflect the registered Schedule Information, restart the Scheduler process or wait for the next scheduling time.

For details of the fields, refer to List of Schedule Information fields.

For details on the Schedule Information List screen and the Schedule Information Update screen, refer to Schedule Information List and Update.
