New creation

The procedure for creating new record of the Schedule Information is as follows:

  1. Use either of the following methods:

    • Clicking Schedule Information in the Management Information section of the Home screen

    • Clicking System Configuration > Schedule Information

    The Schedule Information List screen is displayed.

    Screen 4.96 Schedule Information List Screen

  2. Use either of the following methods:

    • Clicking New Creation on the toolbar

    • Entering the schedule ID for the new record that you intend to register, and clicking OK

    The Schedule Information Update (New Creation) screen or the Schedule Information Update screen for the schedule ID that you intend to register appears with default values specified for individual fields.

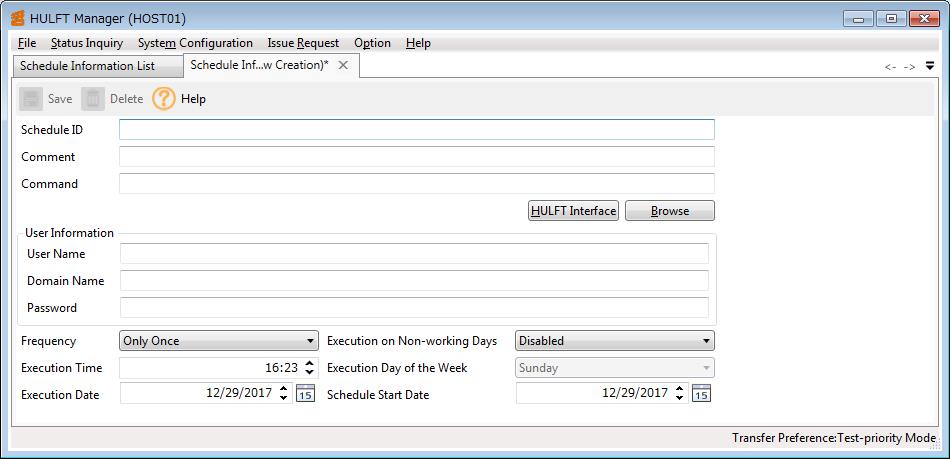

    Screen 4.97 Schedule Information Update (New Creation) Screen

  3. Enter the required information in each field.

  4. After entering the information, click Save on the toolbar.

    A successful completion message is displayed.

  5. Click OK.

    The Schedule Information is registered as specified, and the Schedule Information List screen is displayed.

Note

To reflect the registered information, restart the Scheduler process or wait for the next scheduling time.

For details of the fields, refer to List of Schedule Information fields.

For details on the Schedule Information List screen and the Schedule Information Update screen, refer to Schedule Information List and Update.
