New creation

The procedure for creating new record of the Receive Management Information is as follows:

1. Use either of the following methods:

   • Clicking Receive Management Information in the Management Information section of the Home screen

   • Clicking System Configuration > Receive Management Information

   The Receive Management Information List screen is displayed.



   Screen 4.36 Receive Management Information List Screen

2. Use either of the following methods:

   • Clicking New Creation on the toolbar

   • Entering the file ID for the new record that you intend to register, and clicking OK

   The Receive Management Information Update (New Creation) screen or the Receive Management Information Update screen for the file ID that you intend to register appears with default values specified for individual fields.

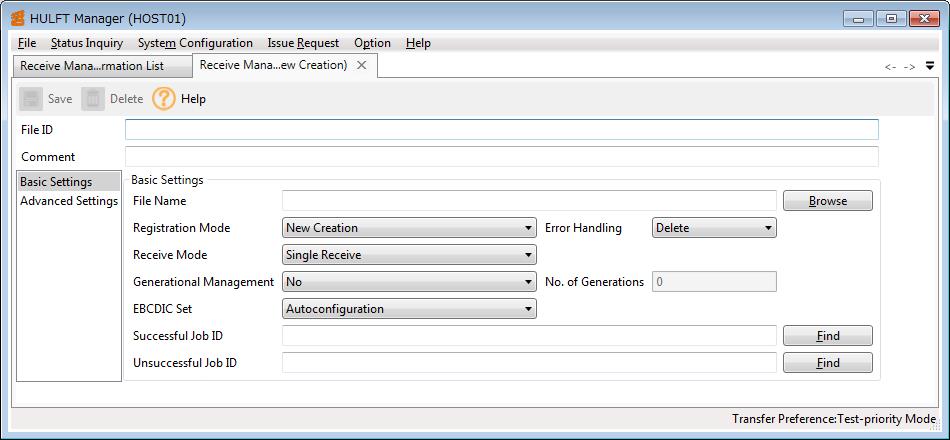

   Screen 4.37 Receive Management Information Update (New Creation) Screen

3. Enter the required information in each field.

4. After entering the information, click Save on the toolbar.

   A successful completion message is displayed.

5. Click OK.

   The record of the Receive Management Information is registered as specified, and the Receive Management Information List screen is displayed.

For details, refer to the following:

• When connecting to HULFT8 for Mainframe, refer to List of Receive Management Information fields.

• When connecting to HULFT8 for UNIX/Linux, refer to List of Receive Management Information fields.

• When connecting to HULFT8 for Windows, refer to List of Receive Management Information fields.

• When connecting to HULFT8 for IBMi, refer to List of Receive Management Information fields.

For details on the Receive Management Information List screen and the Receive Management Information Update screen, refer to Receive Management Information List and Update.
