New creation

The procedure for creating new record of the Multi Format Information is as follows:

1. Use either of the following methods:

   • Clicking Multi Format Information in the Management Information section of the Home screen

   • Clicking System Configuration > Multi Format Information

   The Multi Format Information List screen is displayed.



   Screen 4.56 Multi Format Information List Screen

2. Use either of the following methods:

   • Clicking New Creation on the toolbar

   • Entering the multi format ID for the new record that you intend to register, and clicking OK

   The Multi Format Information Update (New Creation) screen or the Multi Format Information Update screen for the multi format ID that you intend to register appears.

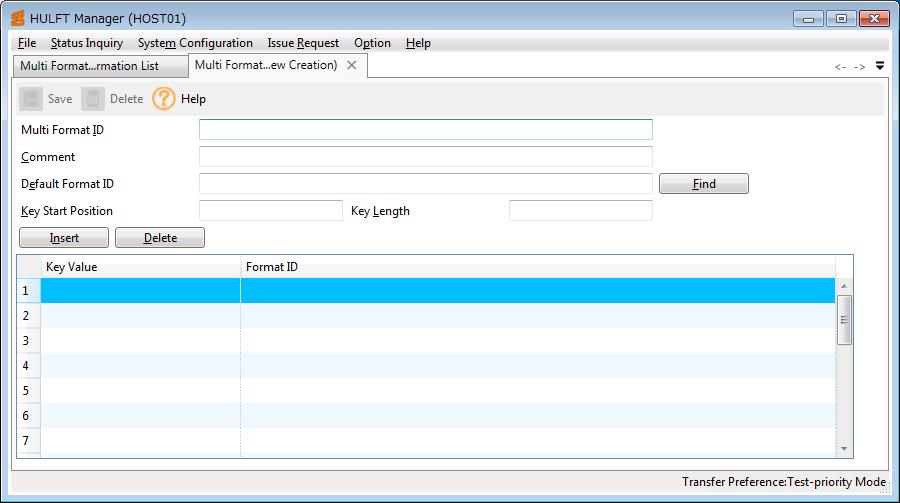

   Screen 4.57 Multi Format Information Update (New Creation) Screen

3. Enter the required information in each field.

4. After entering the information, click Save on the toolbar.

   A message is displayed.

5. Click OK.

   The record of the Multi Format Information is registered as specified, and the Multi Format Information List screen is displayed.

For details, refer to the following:

• When connecting to HULFT8 for Mainframe, refer to List of Multi Format Information fields.

• When connecting to HULFT8 for UNIX/Linux, refer to List of Multi Format Information fields.

• When connecting to HULFT8 for Windows, refer to List of Multi Format Information fields.

• When connecting to HULFT8 for IBMi, refer to List of Multi Format Information fields.

For details on the Multi Format Information List screen and the Multi Format Information Update screen, refer to Multi Format Information List and Update.
