File transfer started from the sending side

This section describes the flow of a file transfer that is started from the host on the sending side. The explanation below shows a case where a file is transferred without a job starting or without Code Conversion settings.

(1) Preparation

On the host on the sending side, prepare a file to send, and specify the file ID, a file to send, a remote host, and any other transfer conditions in the management information. On the host on the receiving side, ensure that there is enough storage for the Receive file, and specify the file ID, file to receive, remote host, and any other receive conditions in the management information.

Operation that is performed on the host on the sending side

Preparation of a file to send
Registration of the system management information required for a file transfer
Startup of the Send system

Operation that is performed on the host on the receiving side

Storage preparation for the file to receive
Registration of the system management information required for a file transfer
Startup of the Receive system

(2) Issuance of Send File

Issue the Send File on the host on the sending side, and the file is transferred.

No operation is required on the host on the receiving side.

Operation that is performed on the host on the sending side

Issuance of the Send File

Operation that is performed on the host on the receiving side

None

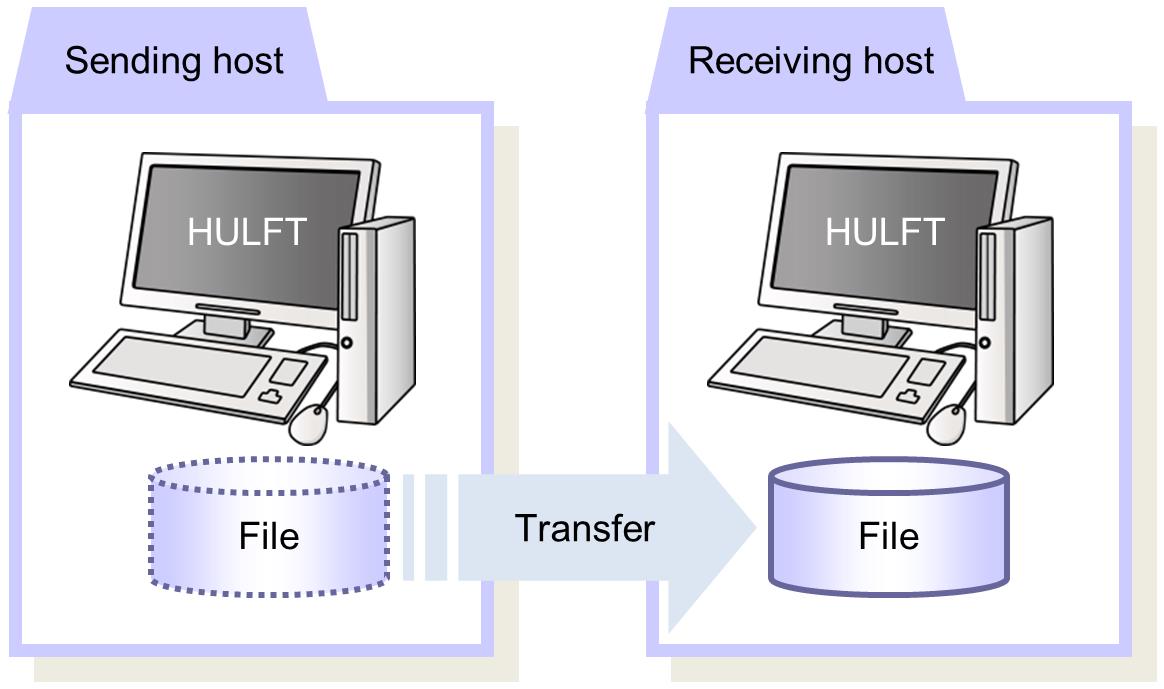

Figure 1.8 Issuance of Send File

(3) Verification

After the file transfer ends, view the Send Log on the host on the sending side and make sure that the Send processing ended successfully.

Similarly, view the Receive Log on the host on the receiving side and make sure that the Receive processing ended successfully.

Operation that is performed on the host on the sending side

Checking of the Send Log

Operation that is performed on the host on the receiving side

Checking of the Receive Log
