Data structure of the input and output files
This section explains the following input and output files of the management information:
-
Input file specified by the import command of management information
-
Output file specified by the export command of management information
-
Input file to append the exported information to, specified by the export command of management information
The input and output files of the management information are files in JSON (JavaScript Object Notation) format.
Example of the input and output files
The input and output files of the management information contain the following four types of information:

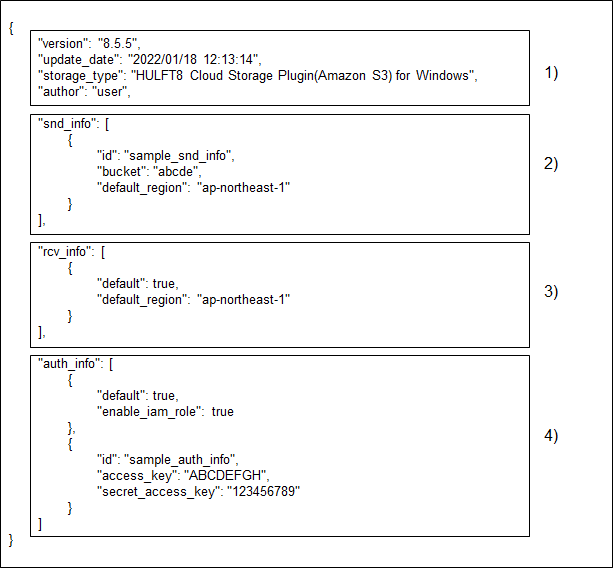

Figure 7.1 Example of the input and output files
1) Header information
This information is output when you execute the export command.
For details on the contents, refer to the following:
2) Send Storage Management Information
This section provides Send Storage Management Information.
When importing, specify the information to register.
When exporting, the contents of the specified fields are output.
For details on the fields, refer to the following:
Amazon S3
Azure Blob Storage
3) Receive Storage Management Information
This section provides Receive Storage Management Information.
When importing, specify the information to register.
When exporting, the contents of the specified fields are output.
For details on the fields, refer to the following:
Amazon S3
Azure Blob Storage
4) Storage Authentication Information
This section provides Storage Authentication Information.
When importing, specify the information to register.
When exporting, the contents of the specified fields are output.
For details on the fields, refer to the following:
Amazon S3
Azure Blob Storage
