Work outline

The Move System Data (IEHMOVE) program is used to convert HULFT libraries to unloaded format, and store them as fixed-length files in the provided media.

Before installation, transfer the provided files (fixed length format) to Mainframe, and then restore the files that are required for HULFT installation.

The provided files (fixed length format) are stored in HULFT directory in the provided media. In this manual, the files that are required for HULFT installation are referred to as 'HULFT installation files.'

The work outline is shown below.

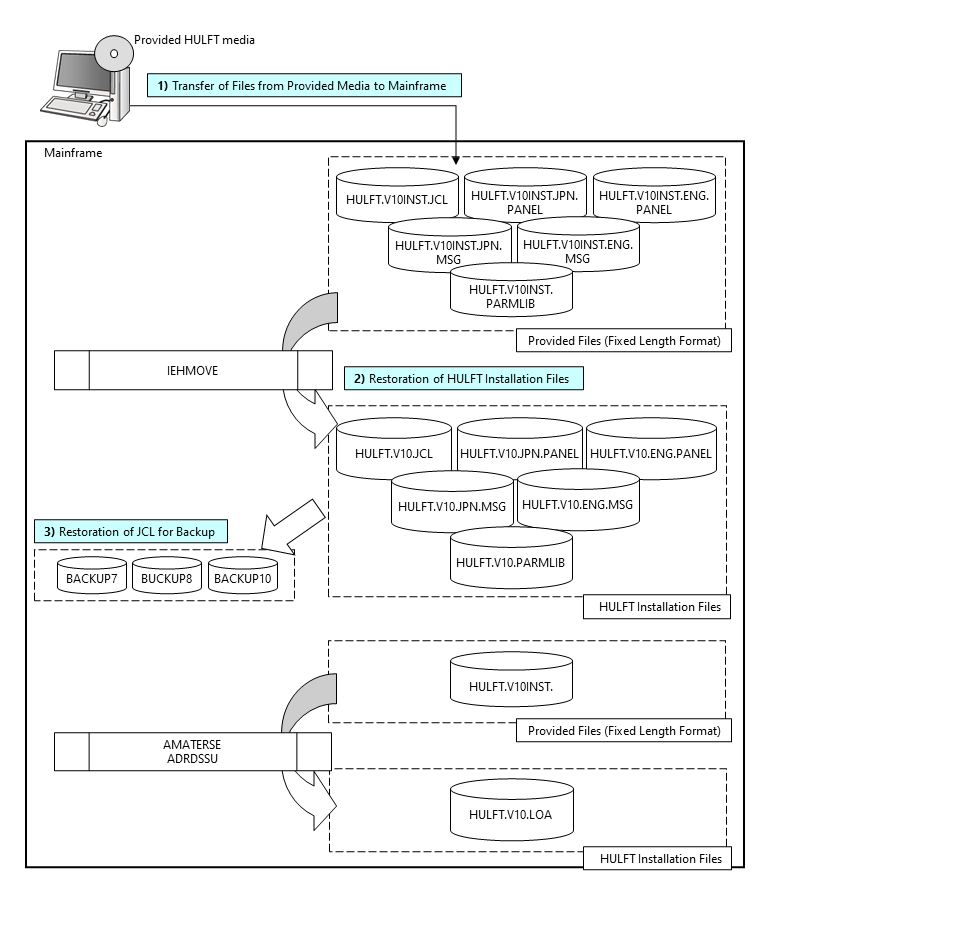

Figure 2.1 Restoration from Provided Media

The utilities and files used to restore the provided files are shown below.

Table 2.1 Utilities Used to Restore Provided Files
Utility	Outline
IEHMOVE	This program converts data sets and libraries to unloaded format, or restores them from unloaded format. For details, refer to DFSMSdfp Utilities.
AMATERSE	This program compresses and extracts data sets. For details, refer to the official website for IBM.
ADRDSSU	This program uses the DUMP command to convert data sets to a format that can be transfered by MFT and the RESTORE command to return them back to the original format. For details, refer to the official website for IBM.

Table 2.2 Provided Files and HULFT Installation Files
File	File Name	Capacity (CYL)
Provided Files (Fixed Length Format)	HULFT.V10INST.JCL HULFT.V10INST.JPN.PANEL HULFT.V10INST.ENG.PANEL HULFT.V10INST.JPN.MSG HULFT.V10INST.ENG.MSG HULFT.V10INST.PARMLIB HULFT.V10INST.LOAD	32
HULFT Installation Files	HULFT.V10.JCL HULFT.V10.JPN.PANEL HULFT.V10.ENG.PANEL HULFT.V10.JPN.MSG HULFT.V10.ENG.MSG HULFT.V10.PARMLIB HULFT.V10.LOAD	60

= Remarks =

Once one of the following operations is complete, delete the files in Table 2.2 .
- New Installation
- Update Installation
If you modify the names of the files shown in Table 2.2 before performing installation, modify the corresponding file names in the JCL used in this manual.
