Management Information Registration

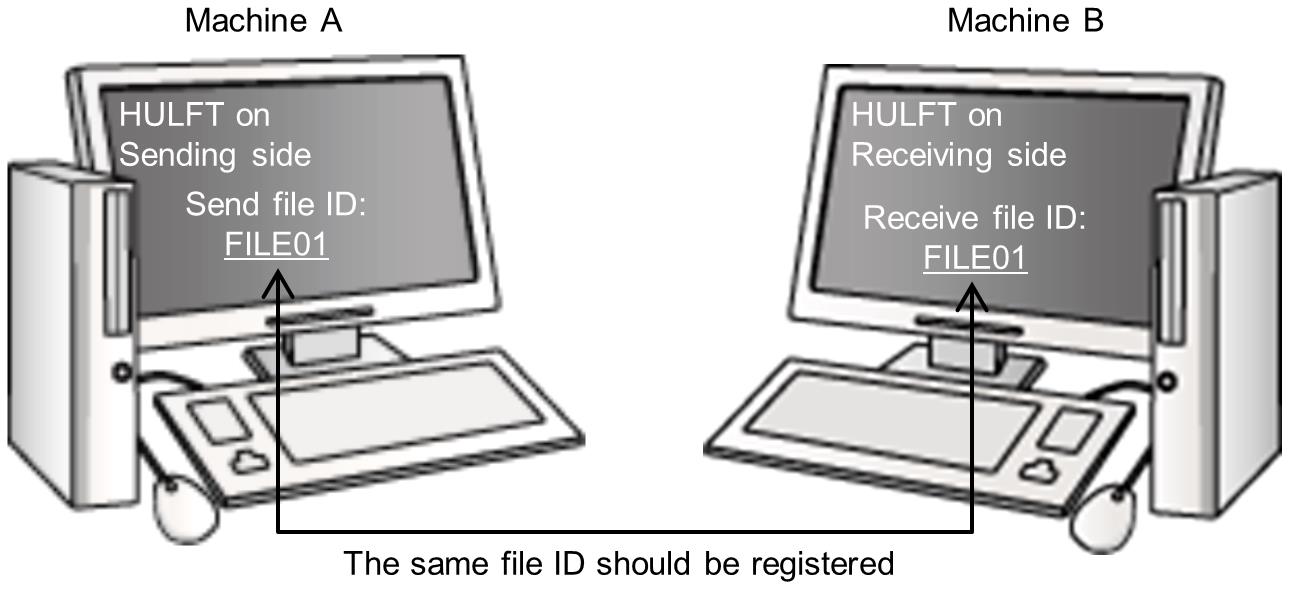

HULFT registers the same File ID (within 50 uppercase alphanumeric characters including "_") on both the sending side and receiving side. It carries out file transfer based on management information records that are associated with the file ID.

The file ID should be registered for each file both on the sending side (in the Send Management Information) and on the receiving side (in the Receive Management Information).

In addition to the file ID, you need to register other management information records that are managed by other IDs. During a file transfer, the minimum management information required at the sending side and the receiving side is shown below. For details on the management information that is necessary for file transfer, refer to the following:

HULFT on the sending side

Send Management Information (Send file ID)

Host Information (host name of the host on the receiving side)

Transfer Group Information (transfer group ID)

HULFT on the receiving side

Receive Management Information (Receive file ID)

Host Information (host name of the host on the sending side)

Transfer Group Information (transfer group ID)

In a communication test, HULFT carries out a file transfer within itself on the same machine. To do this, certain information needs to be registered.

The sections that describe the needed information are listed in order of registration procedure in the table shown below. Use the following corresponding IDs:

Information to be Registered	ID
Host Information Registration (Local Host Name)	HOST01
Transfer Group Information Registration (Transfer Group ID)	Group001
Send Management Information Registration (Send file ID)	FILE0001
Receive Management Information Registration (Receive file ID)	FILE0001

Next, register the information by using System Configuration menu on the HULFT Management Console.
