Receive Log Inquiry

The Receive Log Inquiry displays a log list of the received files.

How to Display Receive Log List

  1. Select the [Status Inquiry] > [Receive Log Inquiry] menu option.

    The Receive Log List screen is displayed. For explanations of the screens and fields for each host type, refer to Receive Log Inquiry of each host type below Operation of the destination hosts (when connecting to HULFT7) part.

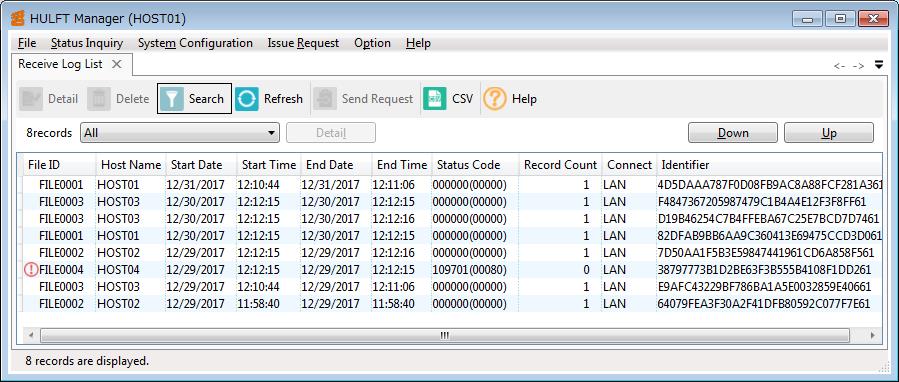

    Screen 6.11 Receive Log List Screen

    (Unsuccessful Sign)

    This sign is displayed on the left side of each log record whose receiving process has been unsuccessfully terminated.

    Log Display Count

    The number of log records currently displayed is displayed on the upper left of the list.



How to Issue Send Request from Receive Log List (with Dialog Box)

  1. On the Receive Log List screen, right-click on the File ID, and then click the Send Request in the pop-up menu.

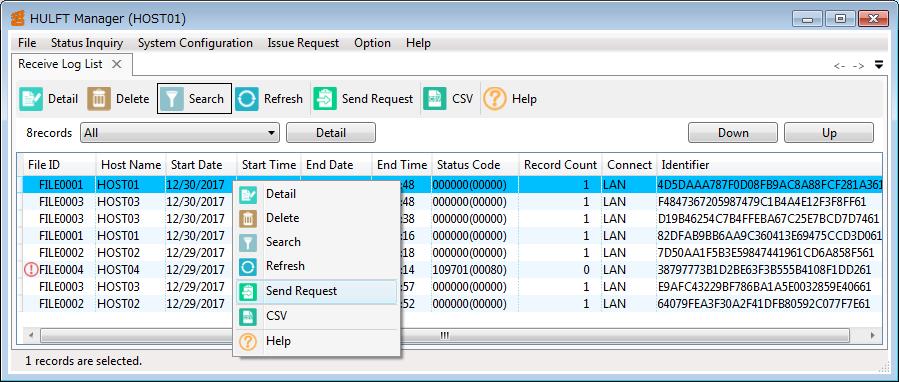

    Screen 6.12 Receive Log List Screen (Pop-Up Menu)

    The Send Request dialog box is displayed with the selected File ID already filled in.

    Screen 6.13 Send Request Dialog Box

  2. Click the [Send Request] to issue the Send Request. For details on the Send Request, refer to Send Request.



How to Issue Send Request from Receive Log List (without Dialog Box)

  1. On the Receive Log List screen, click on the File ID to which you intend to issue a Send Request.

  2. Press the 'Ctrl+U' to issue the Send Request.

Note

To issue a Send Request without displaying the Send Request dialog box, destination HULFT's send request host name omission functionality should have been enabled and the Transfer Group ID must be set in the selected File ID.

The other operational methods are the same as those on the Send Log List screen.
