Passive Send Request and Passive Resend Request
Passive Send Request
The Passive Send Request is a request for file transfer to the host on the receiving side.
You can issue the Passive Send Request on the HULFT Management Console or by using the Web API.
To issue the Passive Send Request, specify a path on the storage for the Send file registered in the Send Management Information.

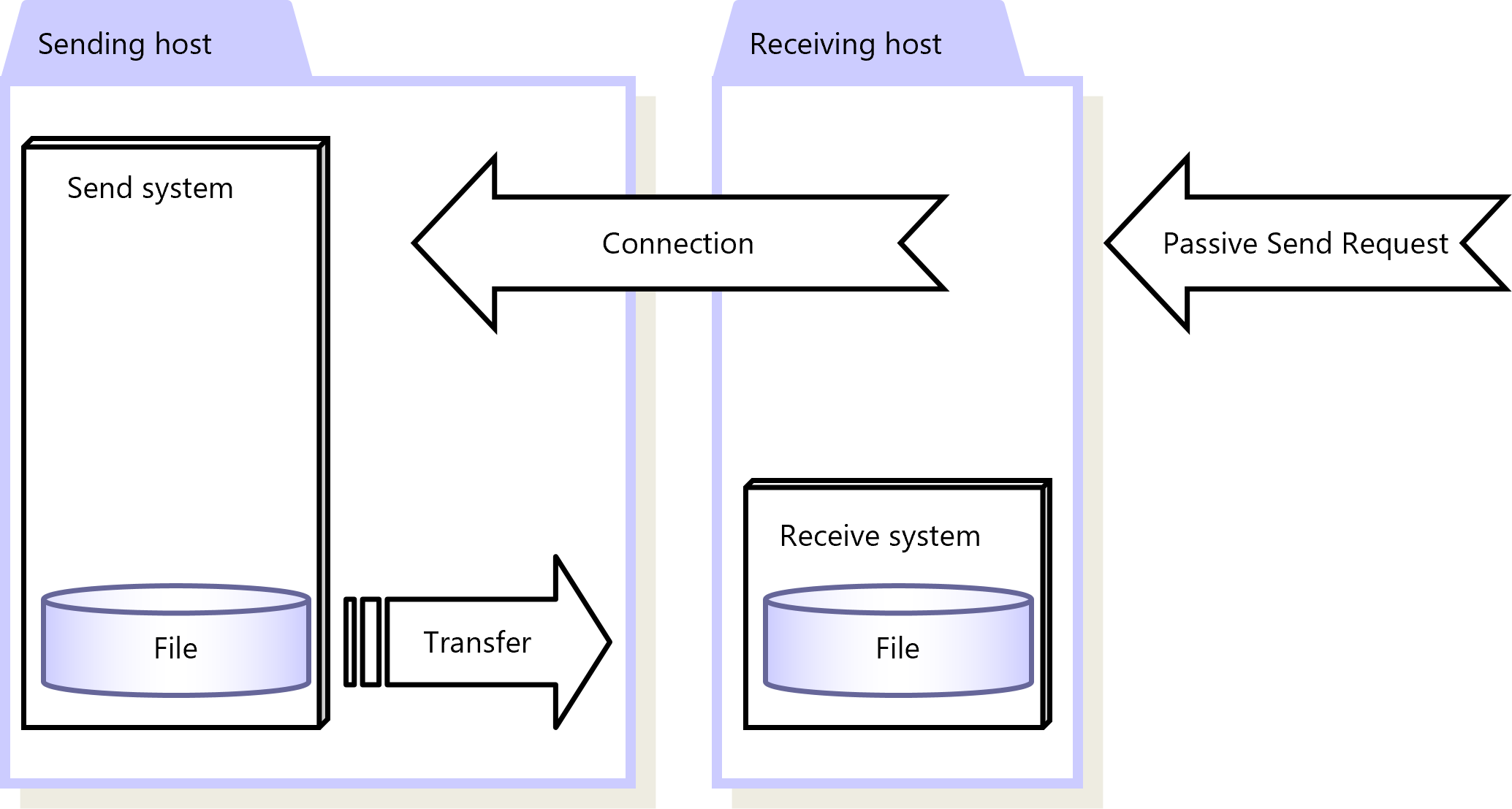

Figure 2.14 Passive Send Request
|
Function |
HULFT for zOS |
HULFT for |
HULFT for |
HULFT for |
HULFT for |
HULFT for |
|---|---|---|---|---|---|---|
|
Passive Send Request |
- |
- |
- |
- |
✓ |
✓ |
|
✓ |
: |
Available |
|
† |
: |
Partially available |
|
- |
: |
Not available |
Passive Resend Request
If the Passive Send Request is issued but a network problem or any other reason causes the file not to be transferred, you can request the same transfer again. Such requests are called the "Passive Resend Request."
You can issue the Passive Resend Request on the HULFT Management Console or by using the Web API.
Figure 2.15 Passive Resend Request
|
Function |
HULFT for zOS |
HULFT for |
HULFT for |
HULFT for |
HULFT for |
HULFT for |
|---|---|---|---|---|---|---|
|
Passive Resend Request |
- |
- |
- |
- |
✓ |
✓ |
|
✓ |
: |
Available |
|
† |
: |
Partially available |
|
- |
: |
Not available |
