Or-Integrate Merge

Logic Name

Or-Integrate Merge

Function

Merges input data in Or-Integrate format.

Data Types

Location Type
Logic output Loop
lightbulbRefer to "Logic Specifications" for details.

Properties

Category Property Description
Comment Comment The comment will also be output to the specifications.It does not affect the conversion process.

Logic Sample

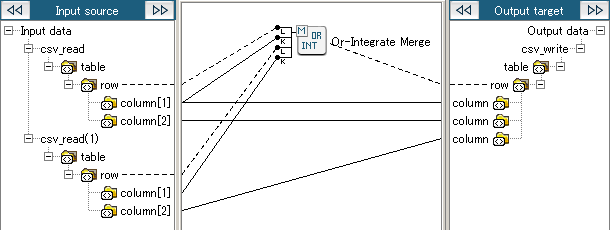

Mapping Definition

Logic Settings and Processing Result

The logic compares key value of each input and adds data to the rows when it matches the key.
Then adds data that does not match the key.
Property Settings
Property Setting
None
Input Data
Output Data
1,Sample,Data
2,Test,Value
3,Dummy,
,,SomeData
