Bulk Write Data(Upsert)

Operation Name

Function Overview

This operation performs a Upsert operation, based on input data, using Bulk API.
Job Creation, batch creation, batch result obtainment, and job closing will be done subsequently as one operation.
The Upsert processing checks the existence of data corresponding to the external ID(*) of Salesforce, and update the data if it exists, or add data if not. Also, the data update by specifying ID can be performed.
(*) External ID needs to be defined beforehand, using the customization feature of Salesforce.

For details on the processes to be executed, please refer to the "Process flow".

For the API specifications used in this operation, please refer to the version of the API document, selected in the global resource, in the below mentioned link.

"Salesforce Developer Documentation"-(https://developer.salesforce.com/docs)
- Bulk API Developer's Guide

Data Model

The data model of this component is the Table Model type.

Properties

For information about using variables, refer to "variables".

Basic Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Name	Required	Not Available	Enter the name that appears on the script canvas.
Input Data	Required	Not Available	Select the component on the script canvas.

Required Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Destination	Required	Not Available	Select Global Resources. [Add...]: Add new global resource. [Edit...]: Global resource settings can be edited by [Edit Resource list].
Table Name	Required	Not Available	Select the name of a table in Salesforce.
External ID field	Required	Not Available	Select the external ID item as a key for UPSERT processing.
Schema definition	Required	-	Specify an item for the CSV data's header row, to be registered with the batch.	The item specified in the [External ID field] needs to be selected. Limiting the settings to only items needed to be written to Salesforce (deleting unnecessary items from the Schema Definition) helps improve processing performance. Items whose data type are defined as "base 64" cannot be handled. If these items are selected, an error occurs.
Schema definition/Label	Required	Not Available	Display the lable name of the column of the table specified in [TableName].
Schema definition/API	Required	Not Available	Display the API name of the column of the table specified in [TableName].
Schema definition/Type	Required	Not Available	Display the data type of the row of the table specified in [TableName].
Relationship definition	Optional	-	In the case that relationship items exist in the Schema Definition, set items subject to updating by external key.	By selecting the external key item of the relation object, data passing with relations can be performed. For details, please refer to Relationship Definition. Will be only when resource type is API 43.0 or later is selected, you can update with the Polymorphic Fields. Specify Polymorphic Fields in [Foreign key field]. For more information on Polymorphic Fields, see the Salesforce documentation.
Relationship definition/Base field	Required	Not Available	Display the API Name of the row of the relation item of the table specified in [Table Name].
Relationship definition/Relationship name	Required	Not Available	Display the relationship name of the row of the relation item of the table specified in [Table Name].
Relationship definition/Related Object	Optional	Not Available	Select the API Name of the relation counterpart object in the relation item column of the table specified in [Table Name].
Relationship definition/Foreign key field	Optional	Not Available	Select the external key item of the relation counterpart object in the relation item column of the table specified in [Table Name].	If omitted, the ID of the relevant record of the relation counterpart object will be passed.

Property Action

Item name	Description	Supplement
Create Schema...	Allows the addition and deletion of the items for the CSV data's header row to be registered with the batch. Please refer to Create Schema for setting methods.

Bulk Operation Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Replace null/empty string with #N/A	Required	Not Available	In the case that the input data is null or null string, select whether or not to replace it with the string "#N/A." [Checked]:(default) Replace the string. [Not Checked]: Do not replace the string.	Due to the API specification, "#N/A" needs to be selected if data is updated with null.
Batch size	Required	Available	Input the upper limit of the number of records that can be registered to one batch.	The default value is "2000." You can set the value between 1 and 10000. An error message will be shown if a value outside this range is set. As the specification of this adapter, in a case in which 100,000 cases of data is written, and the batch size is set as 2,000, 50 batches will be created. However, in cases where 1 batch exceeds the API limit of 10 MB, the batch will be created with a size smaller than the specified batch size.
Concurrency mode	Required	Not Available	Select the job's simultaneous execution mode. [Parallel]:(default) The job is created with the parallel processing mode. [Serial]: The job is created with the sequential processing mode.	If parallel processing is performed, database rivalry can occur. If the competition is large, readings can fail. If the consecutive mode is used, the batches will be reliably processed one after another. However, with this option, the reading processing time can increase greatly.
Job status after execution	Required	Not Available	Select whether or not a created job will be closed, after execution. [Close]:(default) The job will be closed after execution. [Do not close]: The job will not be closed after execution. It will remain open.
Obtain the batch results after waiting until the task is completed	Required	Not Available	Select whether or not to monitor the situation until the created batches are finished, and to obtain batch results. [Checked]:(default) Obtain batch results. The obtained batch results can be passed on to the subsequent proccessing from the output schema. [Not Checked]: Do not obtain batch results.	If [Checked] is selected, the item specified as the schema definition, as well as the result information item, can be passed onto the subsequenct proccessing as Table Model type data. Please refer to "Schema" for information to be obtained. Please refer to "Usage Examples of Get Results" for examples.
Wait Time before the start of monitoring (sec)	Optional	Available	Input the waiting time, until the beginning of the batch state monitoring, in seconds.	The default value is "3". Will be valid only when [Obtain the batch results after waiting until the task is completed] is checked. A value of 3 or greater and 10800 or smaller may be specified. If a value is specified outside of this range, an error will occur.
Batch monitoring intervals (sec)	Optional	Available	Input the intervals, which determine whether or not the batch results have been obtained and the process has completed, in seconds.	The default value is "10". Will be valid only when [Obtain the batch results after waiting until the task is completed] is checked. A value of 10 or greater and 600 or smaller can be specified. If a value is specified outside of this range, and error will occur.
Output only records of error results	Optional	Not Available	Output only error records from the batch results obtained. [Checked]: Output only error records. [Not Checked]:(default) Output all records.	Will be valid only when resource type is API 43.0 or later is selected and [Obtain the batch results after waiting until the task is completed] is checked. When the resource type is API 40.0 or earlier is selected, disabled and all records will be output from the obtained batch results.

Option Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Column name type	Required	Not Available	Choose the display type of the column name, for displaying the schema in mapping. [Label]: The label name (item name) defined in Salesforce is displayed. [API] :(default) The API reference name defined in Salesforce is displayed.

Property Action

Item name	Description	Supplement
Display Table Information...	You can check the table structure of the object you are operating. For more information on how to view the table structure, please refer to Display Table Information	Click [Load All Table Information....] if you would like to check the table structure of other objects.
Load All Table Information	Retrieve all possible table information After running, you can verify the retrieved information from [Table Information].
Read schema definition from file...	Select a file from the file chooser and read the name of field API on the first line of the file specified in the comma-separated values. Set this as the schema definition.	Please specify "UTF-8" encoding for the selected file.

Large Data Processing Settings

Item name	Required/Optional	Use of Variables	Description	Supplement
Large Data Processing	Required	Not Available	Select a Large Data Processing Settings. [Use the setting in the script]:(default) Apply Large Data Processing Settings settings of script property to adapter. [Disable Large Data Processing]: Large Data Processing is not performed. [Enable Large Data Processing]: Large Data Processing is performed.

Comment

Item name	Required/Optional	Use of Variables	Description	Supplement
Comment	Optional	Not Available	You can write a short description of this adapter. The description will be reflected in the specifications.

Schema

Input Schema

The number of columns varies depending on the [Schema definition] settings.

Please refer to "Table Model type schema" for Schema Structure information.

Output Schema

Information regarding the results of batch processing will appear in the column, set in the [Schema definition].
(Hereafter shown as "Lable/API")

<?xml version="1.0" encoding="UTF-8" ?>
<table>
  <row>
    <column>Label/API set in the [Schema Definition]</column>
       :
    <column>RESULT_inputRowNumber</column>
    <column>RESULT_BATCH_id</column>
    <column>RESULT_BATCH_state</column>
    <column>RESULT_BATCH_stateMessage</column>
    <column>RESULT_ROW_id</column>
    <column>RESULT_ROW_success</column>
    <column>RESULT_ROW_created</column>
    <column>RESULT_ROW_error</column>
  </row>
  <row>
    :
  </row>
</table>

Element Name	Column Name(Label/API)	Description	Supplement
row	-	Repeats as many times as the number of data given to the input schema.	In the case where [Obtain the batch results after waiting until the task is completed] is not checked, the result will be 0 times.
column	RESULT_inputRowNumber	A number will be output, based on the position of the node in the data that was given to the input schema.
	RESULT_BATCH_id	The IDs of the batches that processed the records will be output.
	RESULT_BATCH_state	The state of the batches that processed the records will be output. [Completed]:The process has completed. [Failed]:The process was not successful. Please verify the [RESULT_BATCH_stateMessage].	In the [Completed] case as well, the results for each record will vary. Please verify the "ResultInformation_Record."
	RESULT_BATCH_stateMessage	The state message of the batches that processed the records will be output.
	RESULT_ROW_id	The record ID is output.
	RESULT_ROW_success	The record's success flag is output. [true]:The process was successful. [false]:The process was unsuccessful. Please verify the [RESULT_ROW_error].	In the case where the [RESULT_BATCH_state] is not [Completed], the outcome will be [false].
	RESULT_ROW_created	The record's new creation flag is output. [true]:A record was newly created. [false]:A record was not newly created.
	RESULT_ROW_error	The record's error message is output. In the case where the batch results cannot be obtained, the state message of the batches that processed the records will be output.

Reading Schema by Mapper

The schema will be read automatically.

Large Data Processing

Large Data Processing is supported.

Transaction

Transaction is not supported.

Usage on PSP Script

Cannot be used on PSP Script.

Available Component variables

Component Variable Name	Description	Supplement
job_id	The IDs of the jobs created are stored.	The default value is null.
read_count	The number of input data is stored.	The default value is null.
created_batch_count	The number of batches created is stored.	The default value is null.
get_result_success_count	The number of data that was successful in the processing is stored.	The default value is null. If [Obtain the batch results after waiting until the task is completed] is not checked, a value will not be stored.
get_result_error_count	The number of data that was unsuccessful in the processing is stored.	The default value is null. If [Obtain the batch results after waiting until the task is completed] is not checked, a value will not be stored.
get_result_updated_count	The number of data that was successful in the updating processing is stored.	The default value is null. If [Obtain the batch results after waiting until the task is completed] is not checked, a value will not be stored.
get_result_error_count	The number of data that was unsuccessful in the processing is stored.	The default value is null. If [Obtain the batch results after waiting until the task is completed] is not checked, a value will not be stored.
server_url	The end point URL after Login is stored.	The default value is null.
session_id	The session Id is stored.	The default value is null.
message_category	In the case that an error occurs, the category of the message code corresponding to the error is stored.	The default value is null.
message_code	In the case that an error occurs, the code of the message code corresponding to the error is stored.	The default value is null.
message_level	In the case that an error occurs, the importance of the message code corresponding to the error is stored.	The default value is null.
operation_api_exception_code	The ExceptionCode of the occured error, in a case of API error, is stored.	The default value is null. For any error other than an API Error, the value is not stored. The content to be stored may change according to the version of DataSpider Servista.
operation_error_message	If an error occurs, the error message of the occured error is stored.	The default value is null. The content to be stored may change according to the version of DataSpider Servista.
operation_error_trace	When an error occurs, the trace information of the occured error is stored.	The default value is null. The content to be stored may change according to the version of DataSpider Servista.

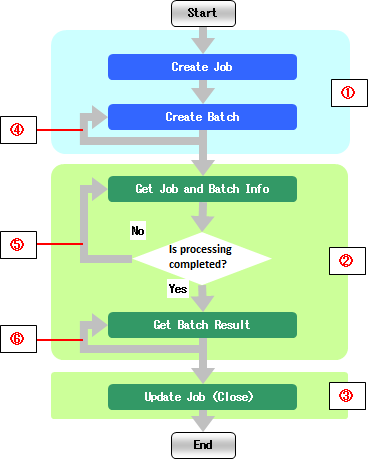

Process Flow

Jobs and batches, required for data writing, are created and managed.
Job creation and batch creation will be performed definitely unless the number of input data is 0.
Whether or not to execute job/batch information obtainment, batch result obtainment, and job update (close) can be selected by the property setting value.

Number in the Image	Name	Description	Supplement
(1)	Required Processes	These are mandatory processes that will take place regardless of the property settings.	A process will not take place, only if there are 0 numbers of input data.
(2)	Selection of Whether or Not to Execute the Batch Result Obtainment and Job/Batch Information Obtainment	Whether or not to execute can be selected by the value of the [Obtain the batch results after waiting until the task is completed] in the [Bulk Operation Settings] tab.	If the [Obtain the batch results after waiting until the task is completed] is checked, the process will take place.
(3)	Selection of whether or not to execute the Job Update (Close)	Whether or not to execute can be selected by the value of the [Job status after execution] in the [Bulk Operation Settings] tab.	If "Close" is selected for the [Job status after execution], the process will take place.
(4)	Repetition of the Batch Creation	The batch creation will repeat, depending on the number of insert data or its volume.
(5)	Repetition of the Job/Batch Result Obtainment	Until the process is completed ,the job/batch information obtainment will repeat at intervals of the [Batch monitoring intervals (sec)], of the [Bulk Operation Settings] tab.
(6)	Repetition of the Batch Result Obtainment	Batch results will be obtained repeatedly, the same amount of times as the number of batches created in (4).

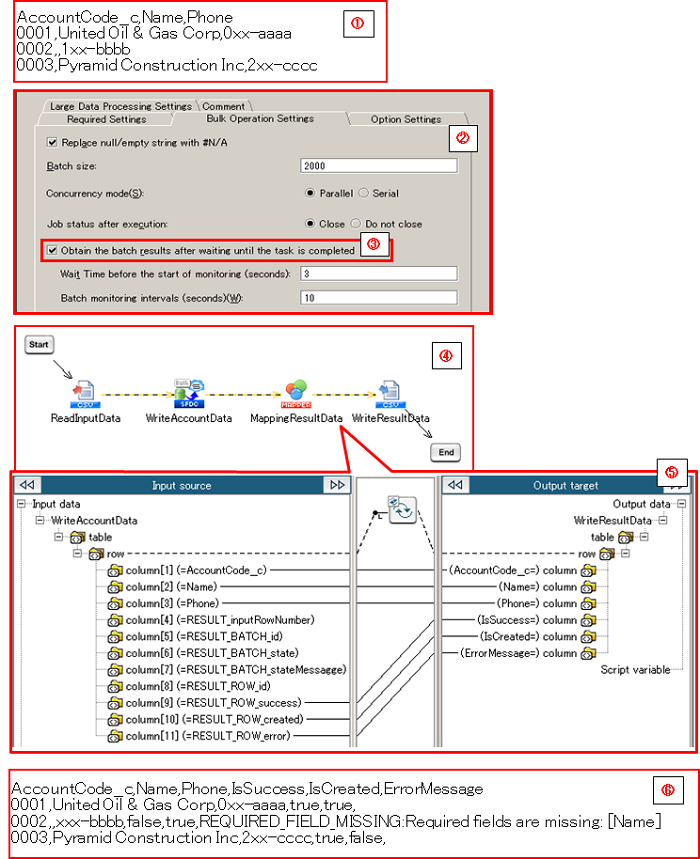

Usage Examples of Get Results

If [Obtain the batch results after waiting until the task is completed] is checked, the batch results, corresponding to the insert data, can be passed on to a subsequent processing as Table Model type data.

Example: The updating results after [Bulk Write Data(Upsert)] to the "Account" is output to a CSV file.

Number in the Image	Name	Description
(1)	Input Data Image	This is a sample image of data input, for updating to the "Account". Here, the [External ID field]is designated as "AccountCode__c".
(2)	Settings for updating to the "Account"	Here, the setting is done using the [Bulk Write Data(Upsert)].
(3)	Setting to obtain or not obtain the data of batch processing results	Here, [Obtain the batch results after waiting until the task is completed] is checked in the [Bulk Operation Settings] tab.
(4)	Script Image	This is the script implementation image of this description.
(5)	Resulting Data Mapping Image	The result data, from update to "Account", is read, and the data required for mapping is passed on to the subsequent processing.
(6)	Resulting Data Image	This is the resulting data image obtained output as CSV file when updated to the "Account".

Relationship definition

Regarding to the updating process of the Reference Item, it needed to pass the ID of the referred object and update by Mapper in the previous versions.
By taking in this setting, the automatical obtainment and updating of the ID of the record which responds to the external key, becomes possible by passing the value of the external key item of the reference object.

Example: Updating (Insert, Update, Upsert) the "Contact"

Details of the example

Category	Description	Supplement
Specification Requirements	Regarding to the update processing of "Contact", it needs to set the referring object ID in the the "Account" ID item (Reference Item). As for the relationship to the referring "Account", it needs to tie to the record according to the AccountCode of the input data.
Settings	Upon updating to "Contact", by passing the value of the Account Code (External key item created before hand: AccountCode__c) of the "Account", which is the referred object, to Mapper, the ID of the corresponding referred object is automatically obtained and set the relationship to the "Account" ID Item (Reference Item).	The items and some of the settings used in this description are usage examples. This is something that is not always in the Salesforce organization that you are using. Please use this function after adjusting and verifying your settings.

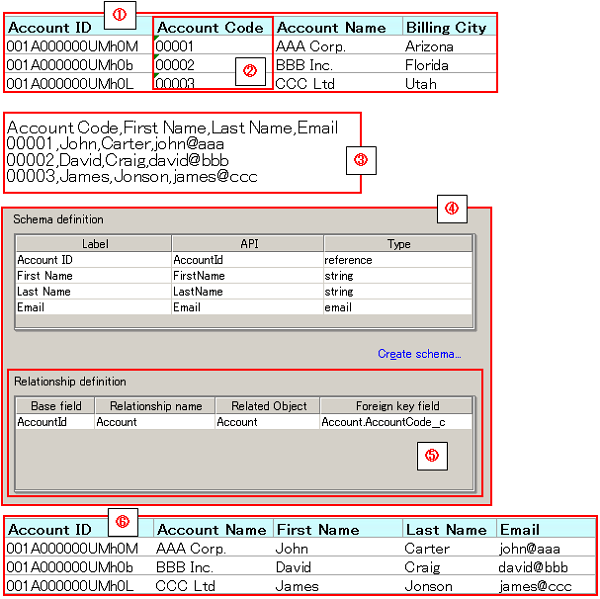

Coordination Image

Number in the Image	Name	Description	Supplement
(1)	The Data Image of the "Account"	This is the data image of the object which is refered by the "Contact".
(2)	The External Key of the "Account"	Pre set "AccountCode__c" as external key.
(3)	Data Input Image	This is the data input image, for updating to the "Contact".	This is the data which has the "Account Code".
(4)	Settings for the updating (Insert, Update, Upsert) to the "Contact".	Here, the "Account ID", "Last Name", "First Name", "E-mail" are the four considered items for updating.
(5)	Relationship Definition Setup	The external key of the referred object in "Foreign key field" should be selected. Here, the external key "Account.AccountCode__c" is selected as the key item for setting the relationship.	If no value is selected, the ID of the corresponding record of the referred object will be passed to Mapper.
(6)	The Updating Results Data Image of the "Contact"	This is the updating results data image of the "Contact".	The relationship is correctly setup to accomodate the record that responded to the "Account Code".

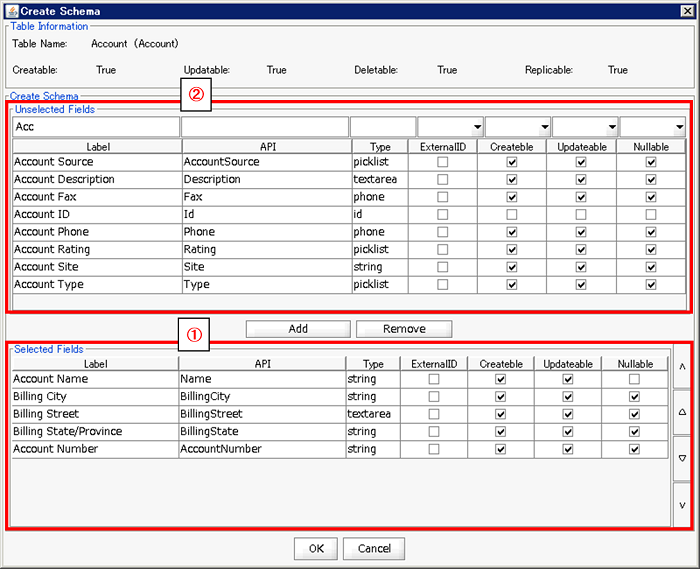

Create Schema

The data items to be read from and/or to be written into Salesforce can be specified in the creation of a schema.
By specifying only the items indispensable for processing, the data traffic to Salesforce can be reduced, generally improving the processing performance.
When writing into Salesforce (adding or updating), it is necessary to make sure that the items "Not Creatable" and "Not Updatable" are not be chosen.

Number in the Image	Name	Description	Supplement
(1)	Selected Fields	Select items for writing to Salesforce.
(2)	UnSelected Fields	Select items not for writing to Salesforce.	You can filter fields by inputting or selecting values from the input above the column name. Text fields will be filtered as Starting With the input value.

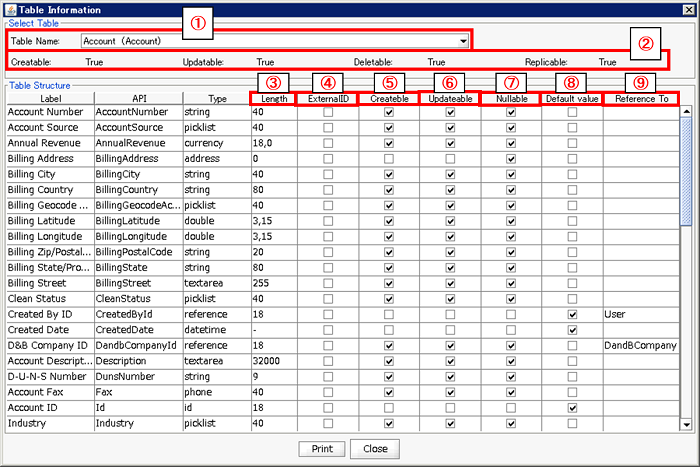

Display Table Information

This display shows the available operations on Salesforce tables as well as field properties of the tables.
Also, the field information can be printed out.

Number in the Image	Name	Description
(1)	Table Name	Select the table whose structure to be shown.
(2)	Table Information	Display the available operations on the selected table.
(3)	Length	Display the Number of Digit of item
(4)	External ID	Display whether or not the object item is set as an external ID.
(5)	Createble	Display whether or not it can be set a value when adding data.
(6)	Updatable	Display whether or not it can be set a value when updating data.
(7)	Nullable	Display whether or not it can be set NULL when adding or updating data.
(8)	Default value	Display whether or not Salesforce automatically set a default value when adding data.
(9)	Reference To	Display the referring object name if the item is in reference relationship or master-servant relationship.

Specification Limits

In order to perform data reading and writing with this adapter, API's of Salesforce organization must be published.

All permissions for reading/writing data and other operations, as well as data access control, depend upon the profile, shared rule setting and API specifications in Salesforce.

The objects and fields that can be used may differ by API version. For details, please refer to the Salesforce documentation.

An item whose data type is "base 64" cannot be handled in this component.

In this adapter, the job contet type "CSV" is used.
It is not possible to create a job with another contet type, or to create batches for jobs with other content types.

Main exceptions

Exception Name	Reason	Resolution
ResourceNotFoundException Resource Definition is Not Found. Name:[]	[Destination] is not specified.	Specify [Destination].
ResourceNotFoundException Resource Definition is Not Found. Name:[<Global Resource Name>]	The resource definition selected in [Destination] cannot be found.	Verify the global resource specified in [Destination]
java.net.UnknownHostException	This exception occurs when the PROXY server specified in the global resource cannot be found.	Verify the condition of the PROXY server. Or verify [Proxy Host] of the global resource specified in the [Destination].
java.net.SocketTimeoutException connect timed out	A time-out has occurred while connecting to Salesforce.	Verify the network condition and Salesforce server condition. Or check [Connection timeout(sec)] of the global resource specified in the [Destination].
java.net.SocketTimeoutException Read timed out	A time-out has occurred while waiting for a responce from the server after connecting to Salesforce.	Verify the network condition and Salesforce server condition. Or check [Timeout(sec)] of the global resource specified in the [Destination].
jp.co.headsol.salesforce.adapter.exception.SalesforceAdapterIllegalArgumentException	Invalid value is set for the property of Salesforce Bulk adapter.	Check the error message, and verify the settings.
com.sforce.soap.partner.fault.LoginFault	Login to Salesforce has failed.	Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.
com.sforce.async.AsyncApiException	An error has occurred in the batch or job executed in the Salesforce Bulk adapter.	Check the ExceptionCode or error message, and refer to the information about this type of error in Salesforce-related documents etc.

Notes

This operation cannot perform a rollback when an error occurs, unlike the database adapters. Succeeded data are updated while error data are left not to be updated.
Therefore, if errors exist in units of data (constraint violation and invalid value, etc.), those errors cannot be detected by monitoring exceptions in a script.
If you want to use the data-level error information as data, [Obtain the batch results after waiting until the task is completed] must be checked and then use the results data for handling error detection etc. in the subsequent processing.

If a value is written beyond the precision of the Java Double data type, the value will be rounded by the Bulk API.
For example, if the value (1,234,567,890,123,456.78) is written to a numerical (16,2) field, it will be saved as (1,234,567,890,123,456.80).

The data type is defined for the fields of the object. The API sends and receives data according to the defined data type format rules, but this adapter extends the rules for some data types.
For details, please refer to Data Type Format.
